APlus Falcon 2,600LB Electric Vechicle Battery Lift - EL-26HM
$ 2,192.49
$ 4,299

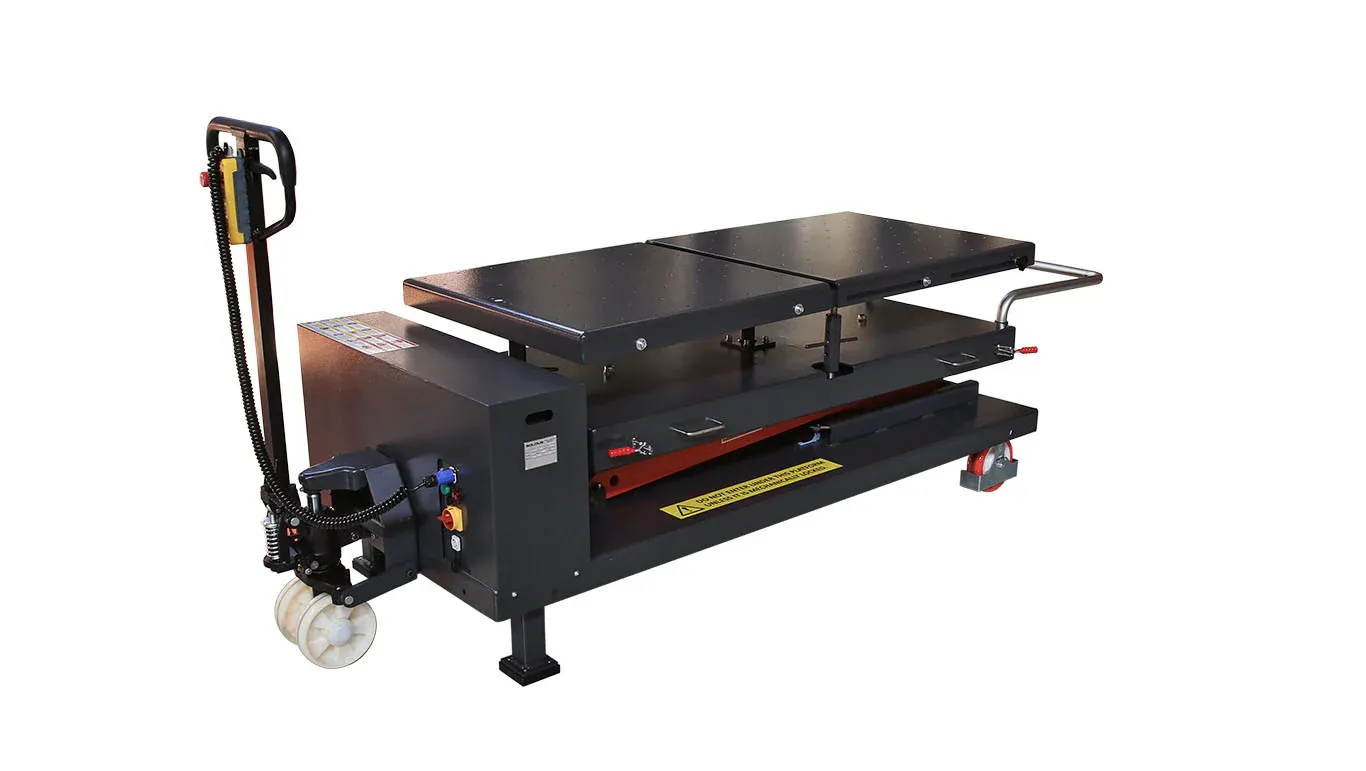

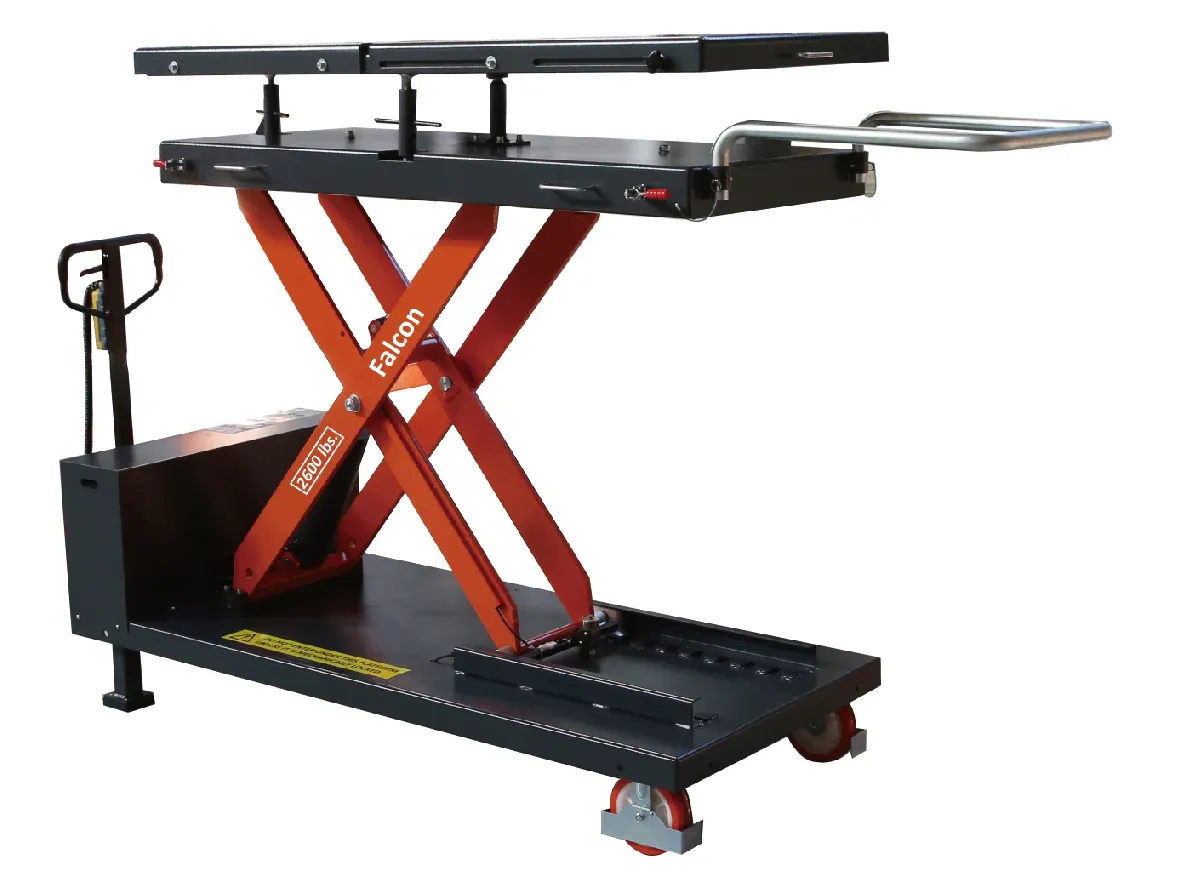

APlus Falcon EL-26HM 2600LB Electric Hydraulic EV Battery Lift Table
Warranty: 3 Year (36 Months)
Capacity: 2600LB Heavy Duty
Key Features:

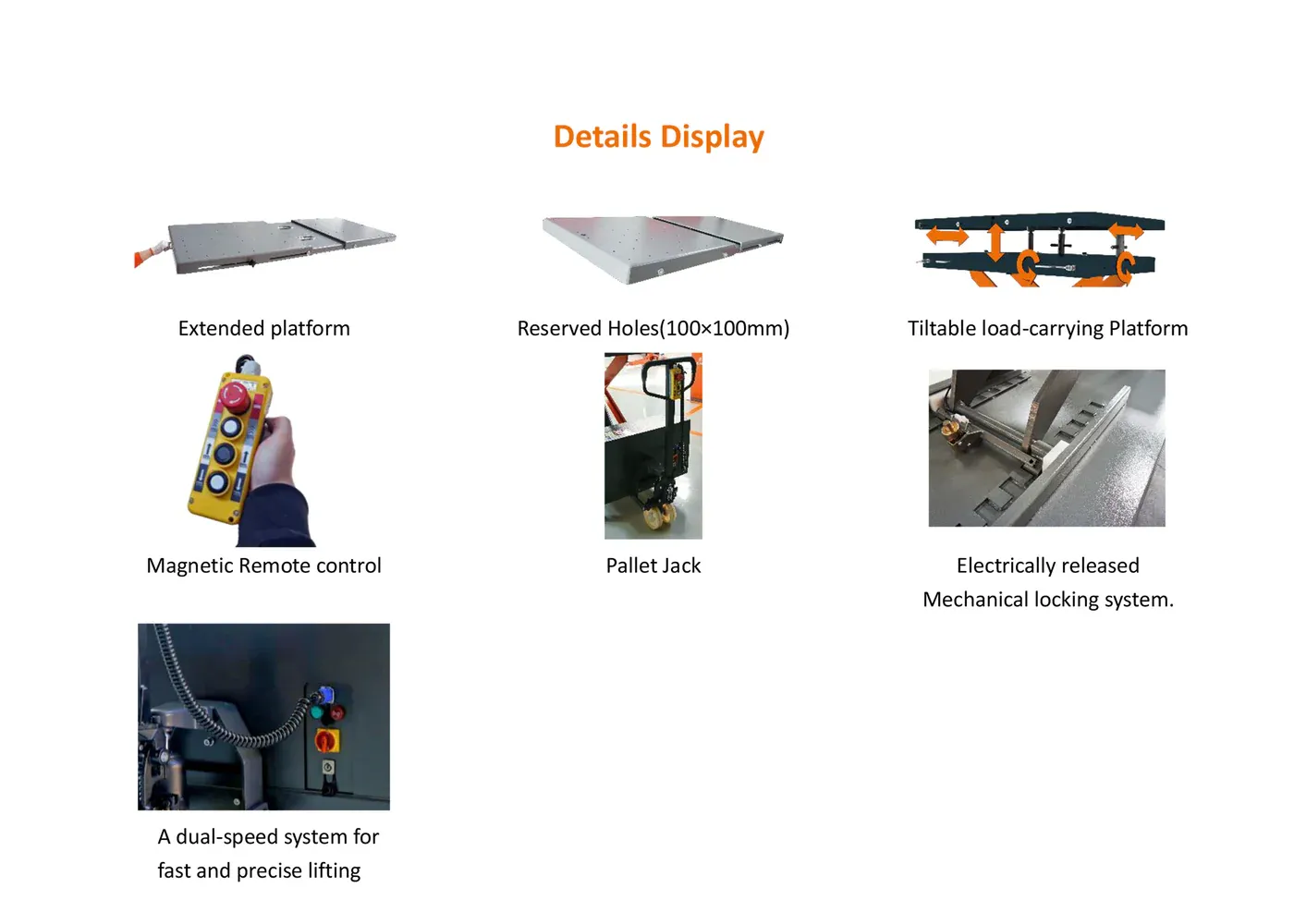

- Adjustable and Tilting Platform to safely and efficiently remove and install electric vehicle battery packs
- Working Surface Size: 68 9/16" L x 35 7/16" W with an extension of 12 13/16" in length – fits large-size loads
- Reserved 4" x 4" holes on platform for positioning and fixing components with specialized fixtures
- Dual-speed system for fast and precise lifting
- Quick, precise, and quiet operation with stable scissor frame and precise pivot shafts
- 110V 60HZ Single Phase Motor
- 24V Magnetic Remote Control

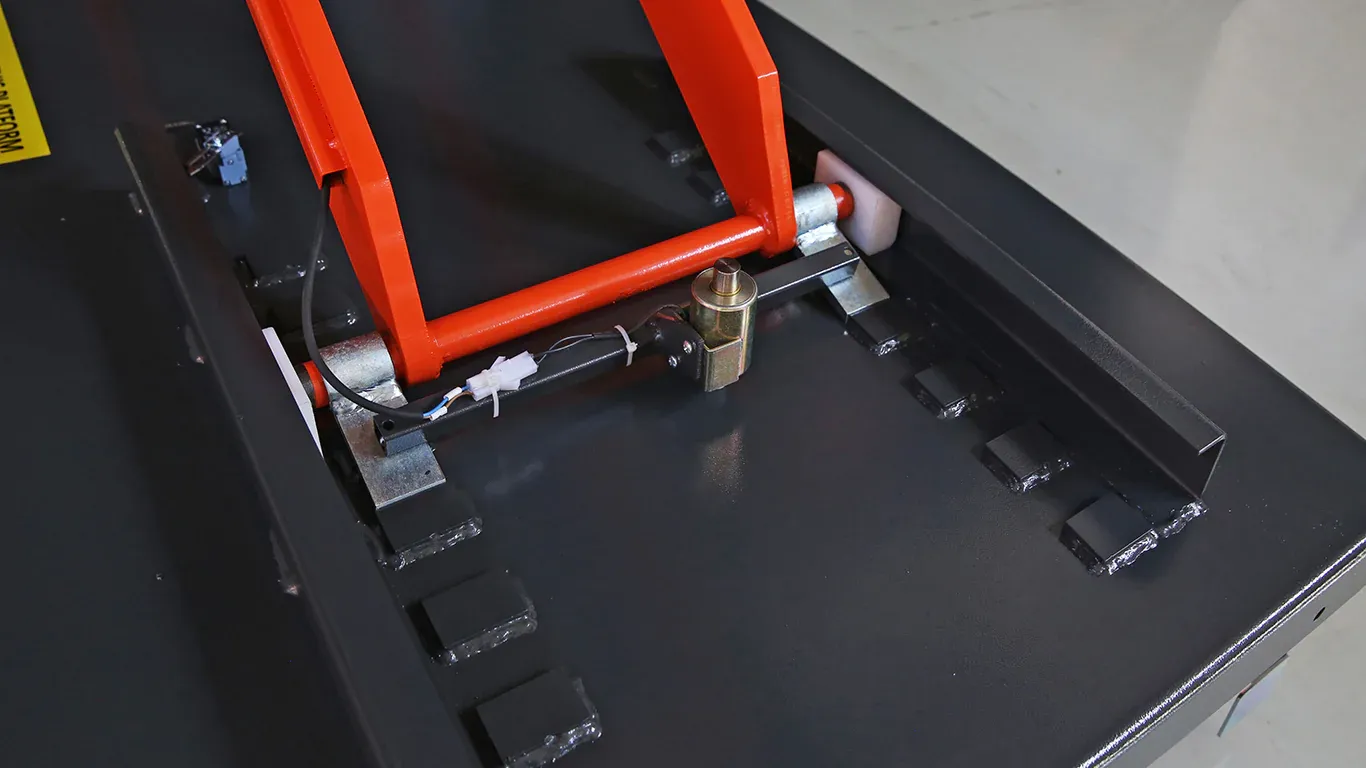

- Electrically Released Mechanical Locking System

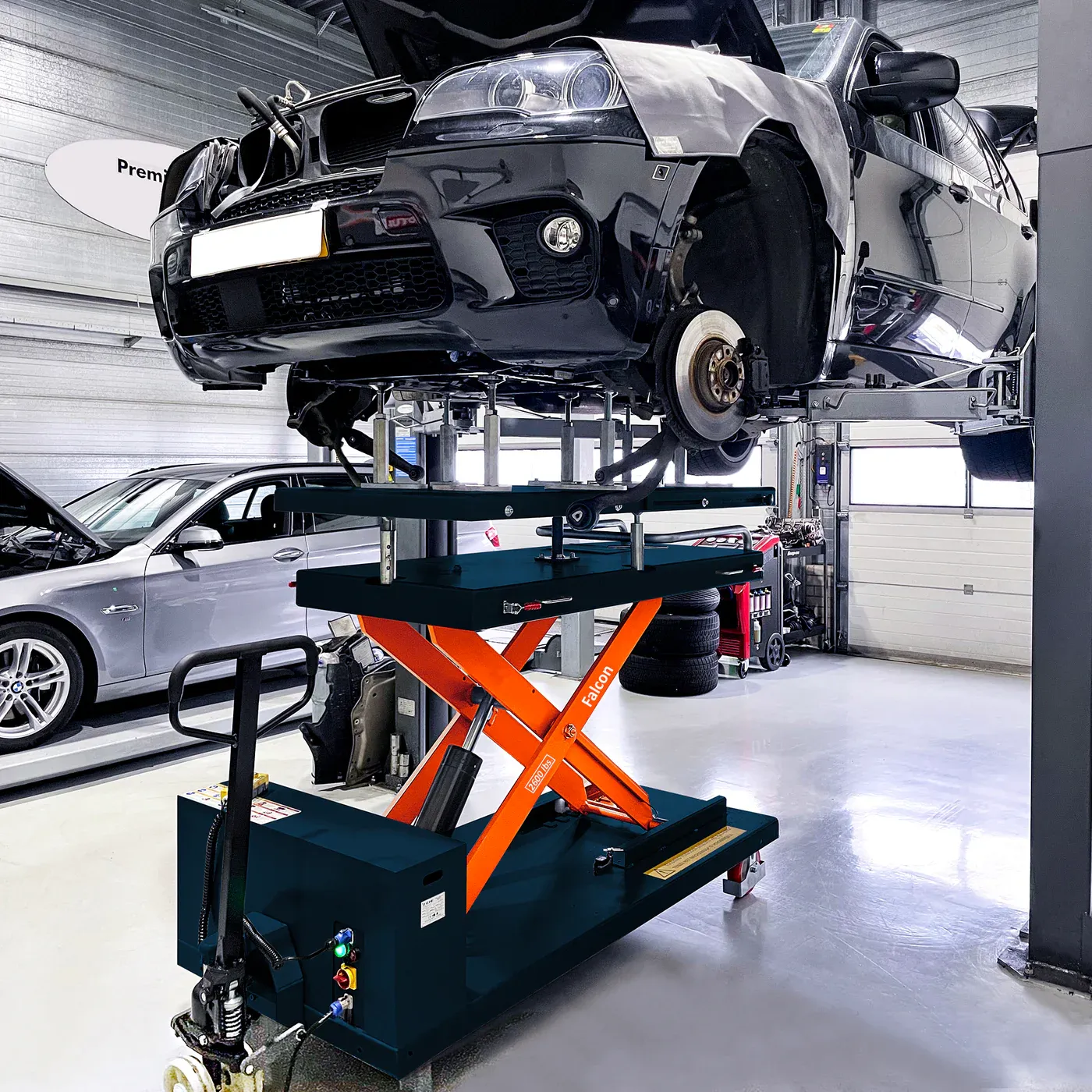

The EL-26HM is a professionally built EV battery lift table with quality materials and expert workmanship. It features two platforms with reserved mounting holes, double steel wire oil hoses tested to 40MPa, and strength to handle twice its working pressure. Comparable to high-end lift tables, it's ideal for replacing EV batteries and handling various vehicle components like engines, gearboxes, axles, and suspensions.
Shipping Info:
Free shipping to the lower 48 states (forklift or similar required on-site), or free pickup at a nearby terminal. Car lifts require a forklift on-site—liftgate not available. Renting a forklift is not reimbursed. See full shipping policy for remote or limited access areas.

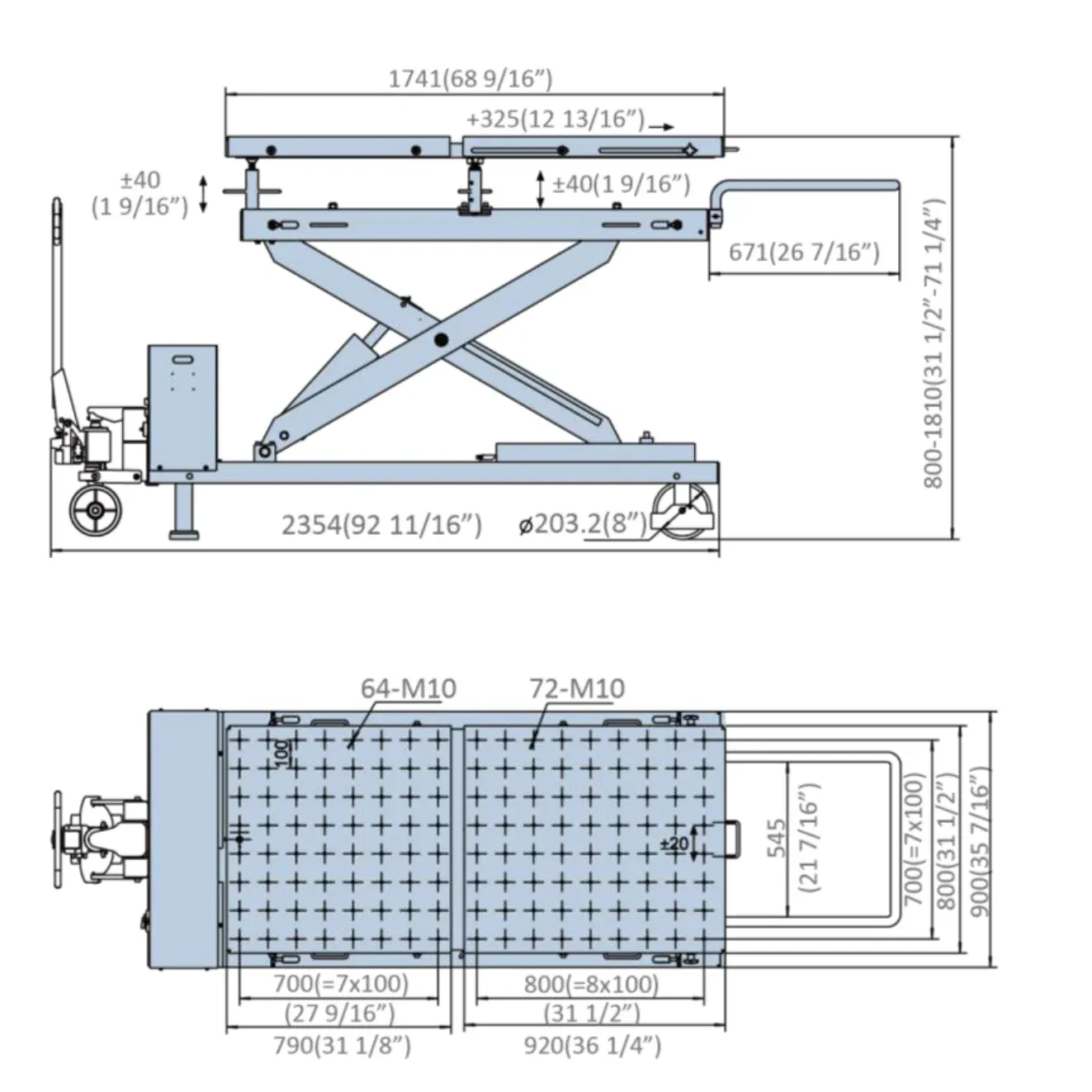

Specifications:
- Two Platforms: Working (Suspending) + Lower (Supporting)
- Working Platform Size: 68 9/16" L x 35 7/16" W
- Extension: 12 13/16" in length
- Tilting Range: 1 5/8" (40mm)
- Lower Platform Travel: 13/16" (20mm)
- Sub-platform A: 31 1/8" L x 31 1/2" W
- Sub-platform B: 36 1/4" L x 31 1/2" W
- Reserved Holes: 4" x 4" (100mm x 100mm)
- Max Lifting Height: 71 1/4"
- Lowered Height: 31 1/2"
- Overall Length (no handle): 92 11/16"
- Overall Length (with handle): 119"
- Overall Width: 35 7/16"
- Castor Size: 8" Diameter
- Weight Capacity: 2600LB
- Electrical: 110V, 60HZ, Single Phase
- Cable Length: 23 ft
- Hydraulic Oil: Not Included
- Color: Lift Table RAL 7021 (Gray), Scissor Frame RAL 2004 (Orange)
- Shipping Weight: 1900LB
- Shipping Dimensions: 88" L x 41" W x 29" H
Additional Features:
- Tiltable load-carrying platform
- Dividable working platforms with extension for large loads
- Locking knobs on the lower platform
- Greaseable shaft with grease zerks for smooth rolling
- Pallet jack with large castors for easy movement
- 7-position safety locking system

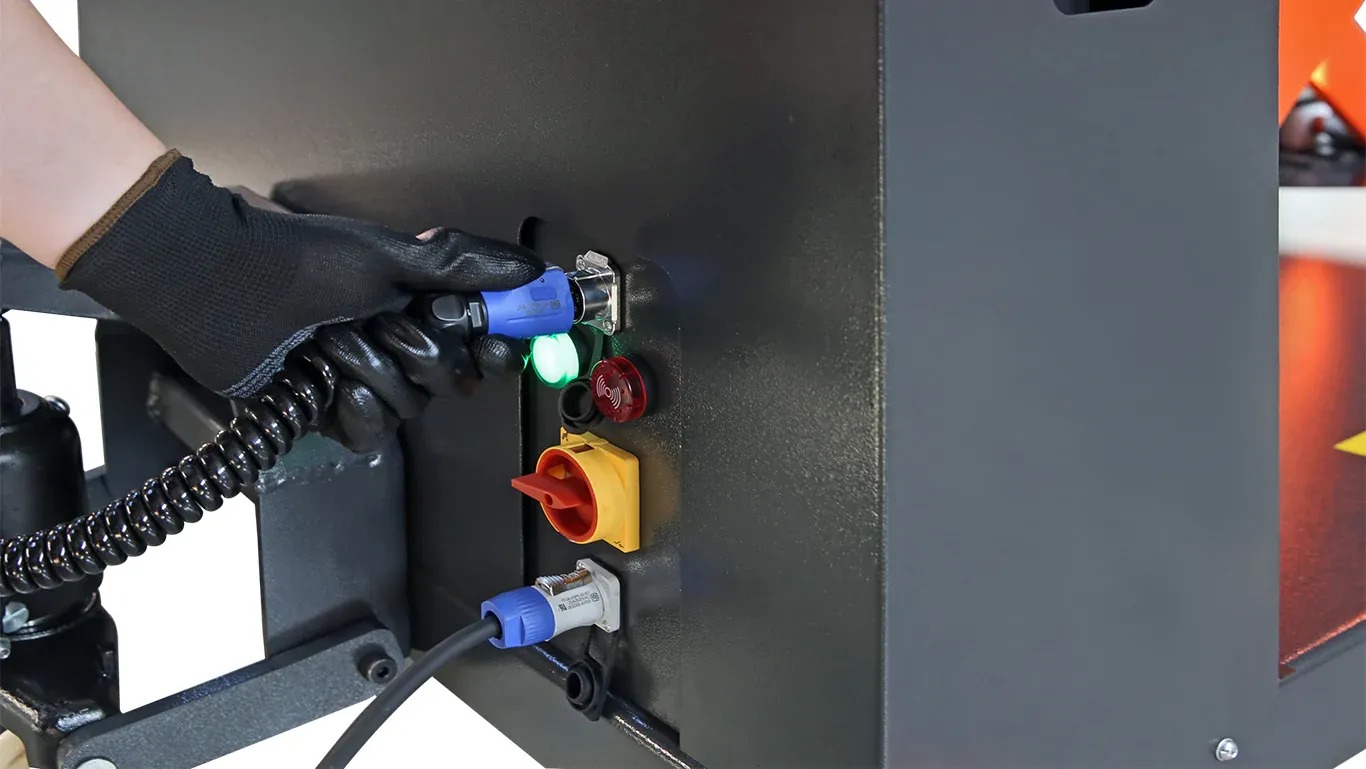

- Built-in power unit (110V, 60HZ, Single Phase)
- Optional adapters available
