APlusLift 10,000LB 2-Post Overhead Asymmetric Single Release Car Lift with 3 Year Warranty - HW-10ASY
$ 1,468.29
$ 2,879.01

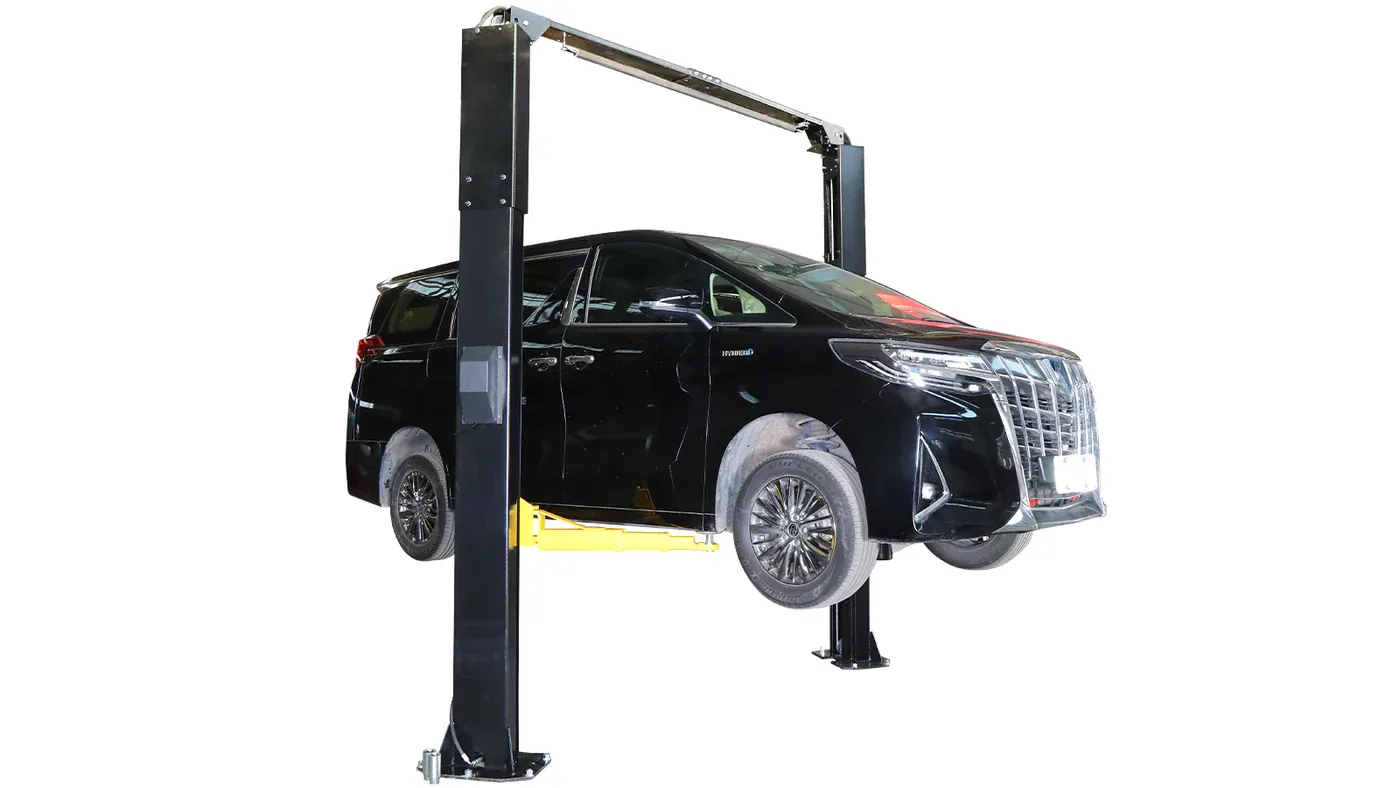

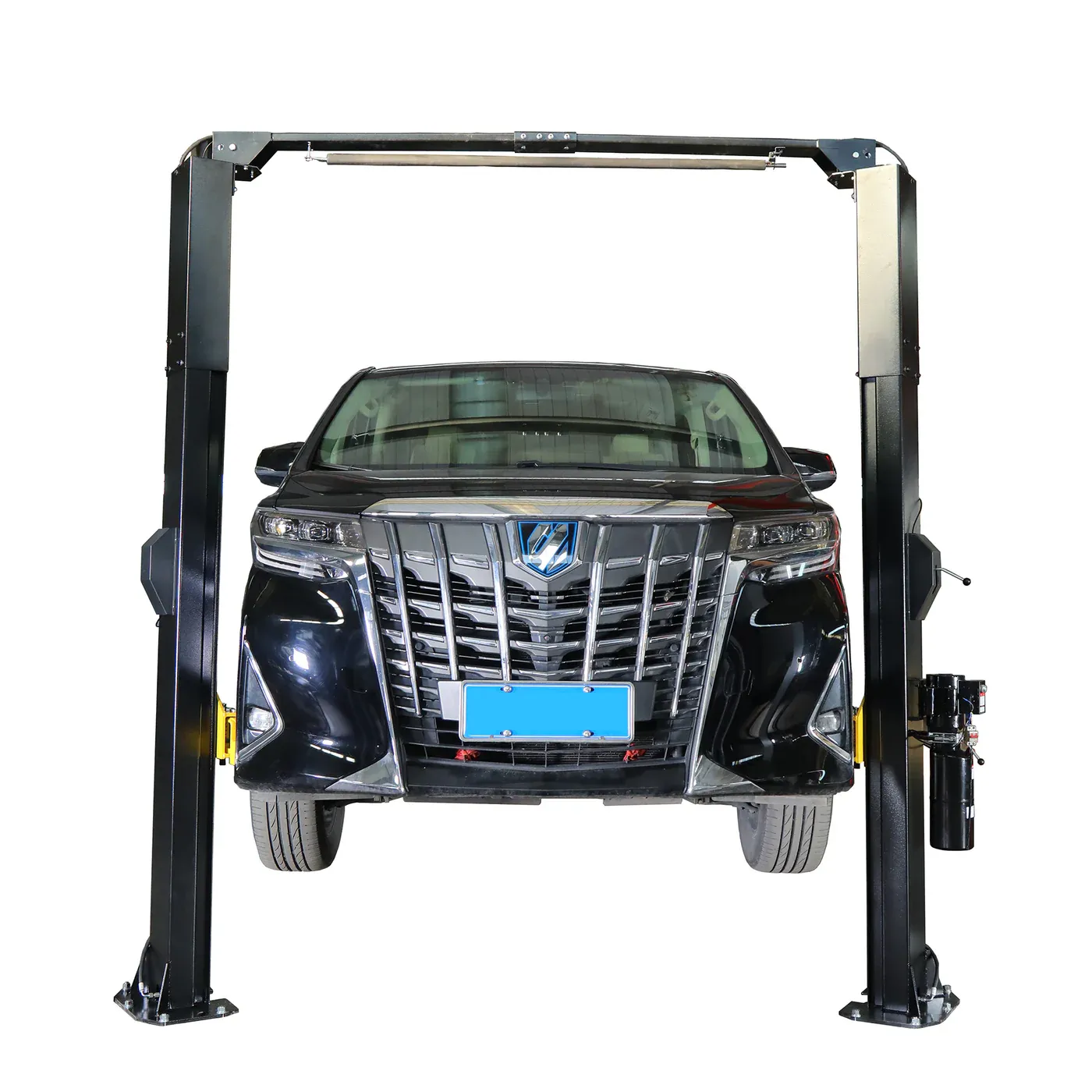

APlusLift HW-10ASY Asymmetrical Overhead Car Lift
APlusLift HW-10ASY Asymmetrical Overhead Car Lift
Maximize Vehicle Access with Precision Engineering
The APlusLift HW-10ASY is an overhead car lift designed for maximum door opening and vehicle interior access. With a 10,000 lb capacity and asymmetrical arm assembly, it’s perfect for garages, workshops, or commercial use. The lift features a robust double "S" column design and high-quality construction, ensuring durable and reliable operation for years to come.
Key Features and Benefits:
- 10,000 lb Capacity: Supports vehicles up to 10,000 lbs, perfect for a variety of car sizes and weight classes.

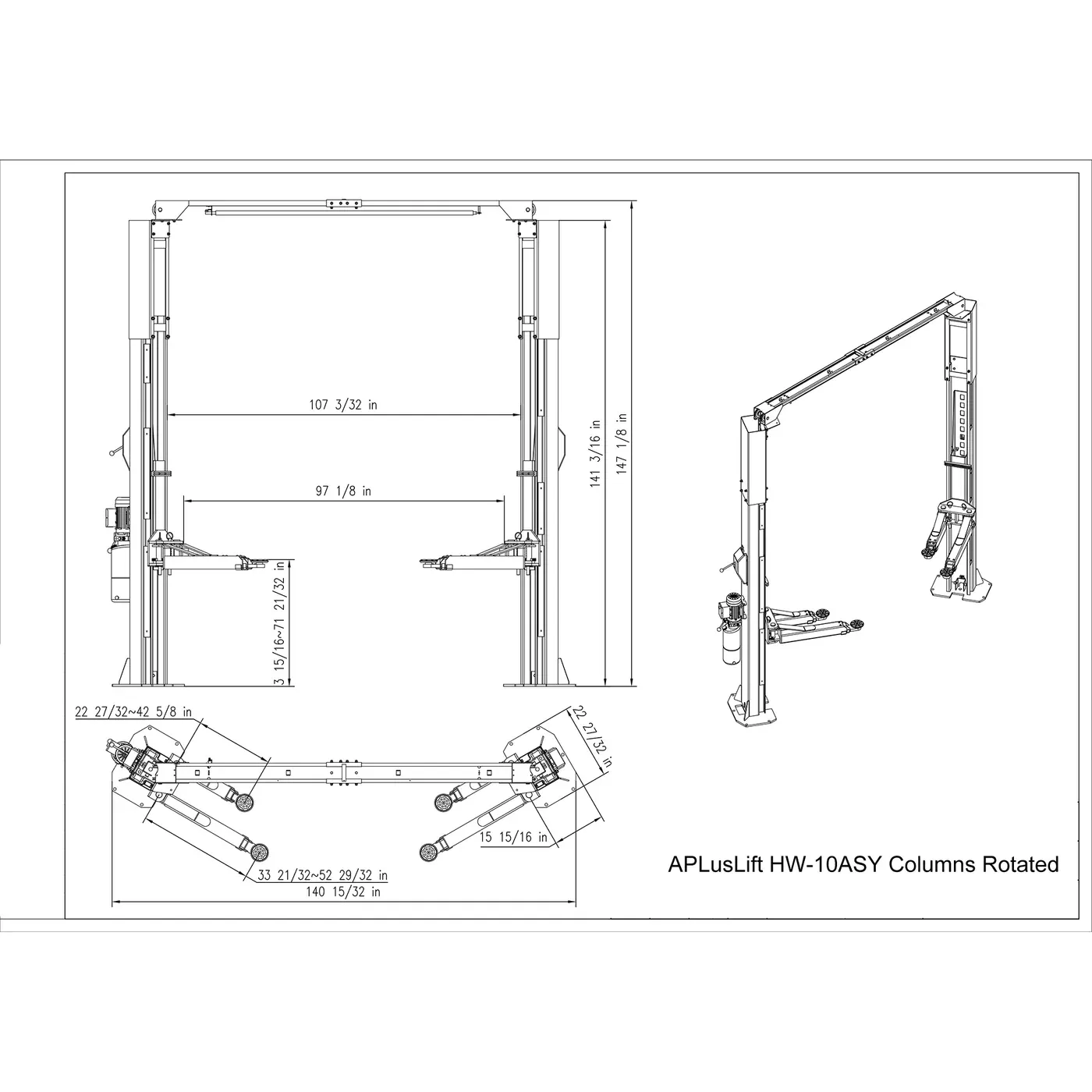

- Asymmetrical Arm Assembly: Features a 30-degree rotated column and asymmetrical arm design for maximum door clearance and ease of vehicle access.

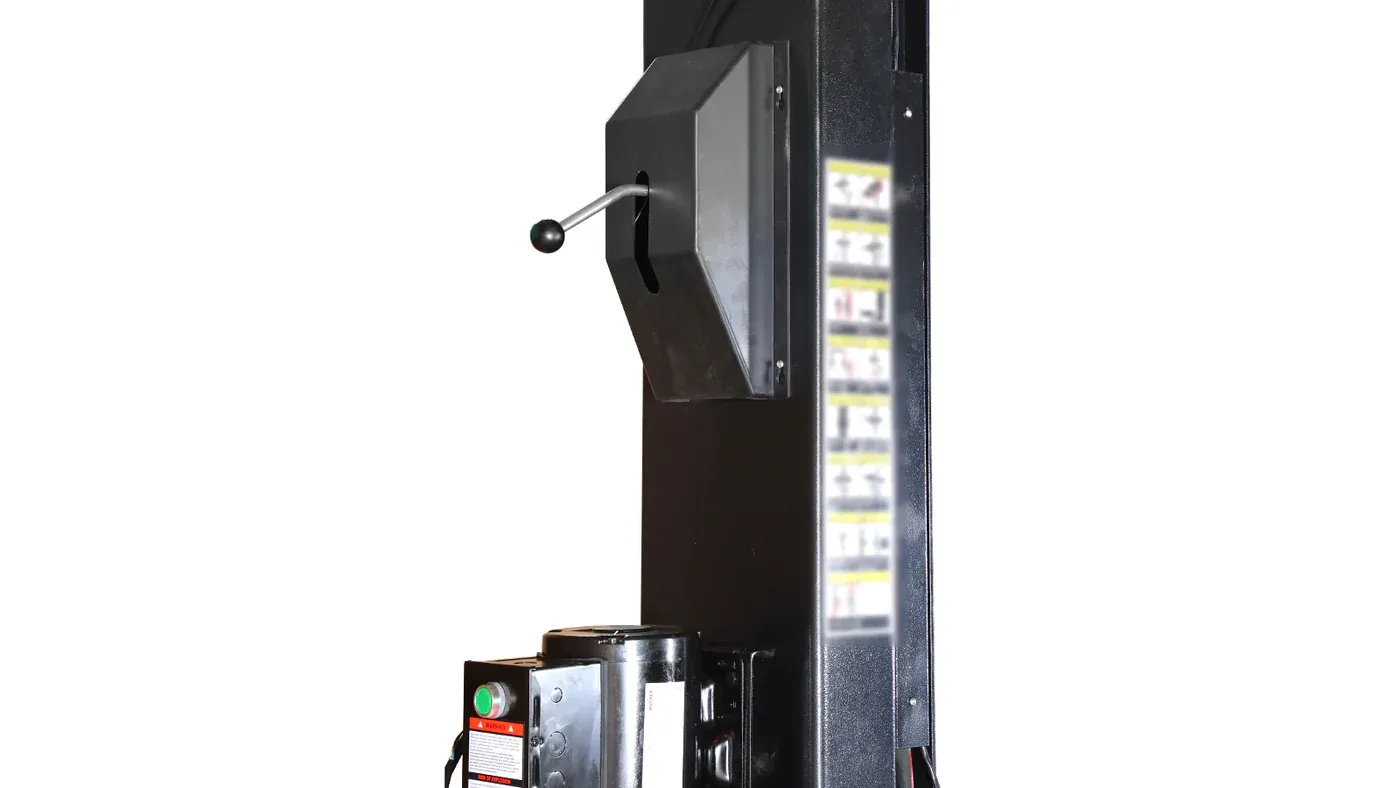

- Single Point Safety Lock Release: Operates with a simple single-point lock release, offering added convenience and safety.
- CE Certified: The structure and hydraulic system are CE certified, with dynamic load testing at 115% and static load testing at 150% for enhanced reliability.

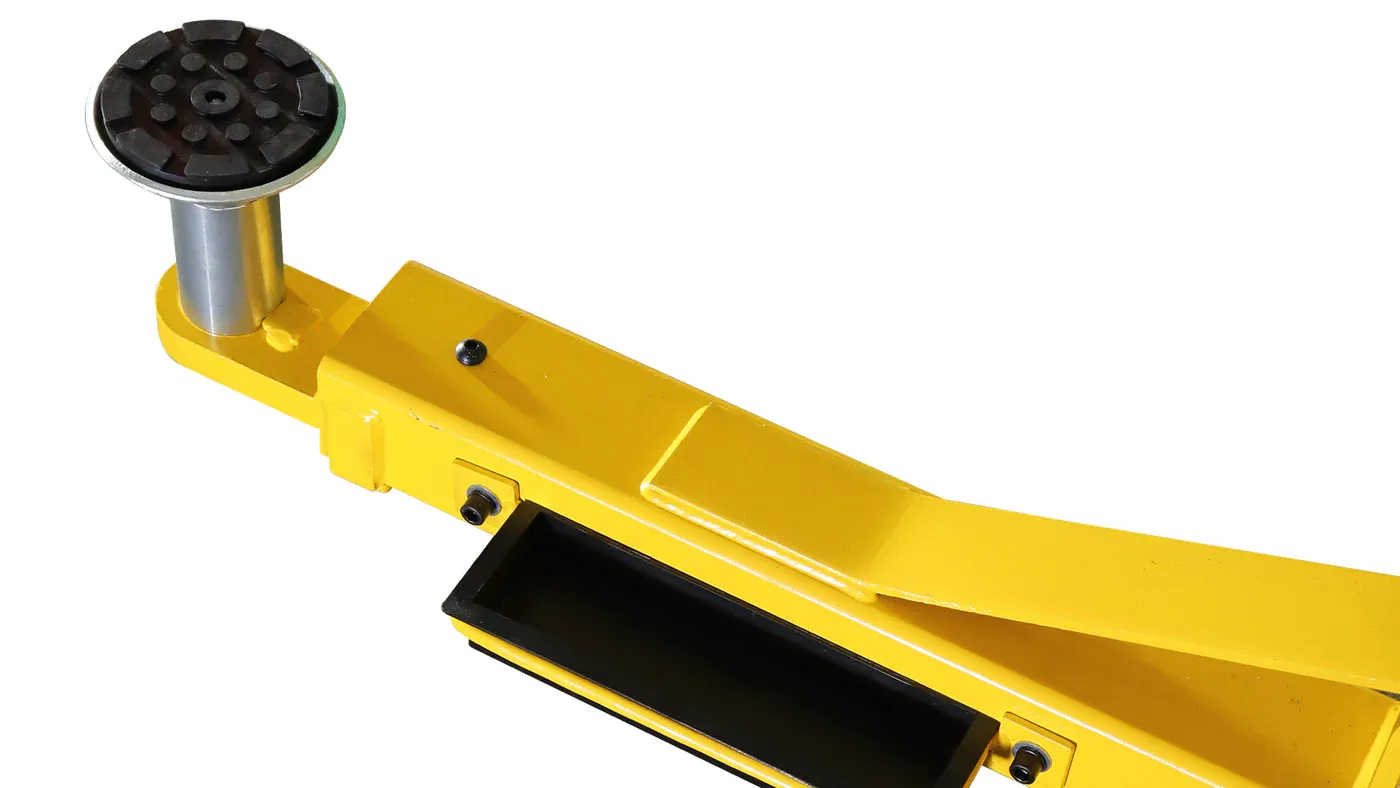

- Adjustable Screw Pads: Adjustable screw pads ensure a customizable fit for different vehicle types.
- Robot Welded Construction: Ensures strength and durability with a high-quality, robot-welded structure, finished with a durable powder coating.
Technical Specifications:
- Motor: 220V Single Phase 3HP (10A), recommend a 30A breaker
- Lifting Capacity: 10,000 lbs
- Maximum Lift Height with Truck Adapters: 81"
- Maximum Lift Height without Truck Adapters: 75"
- Time to Full Rise: 50 seconds
- Shipping Weight: 1,470 lbs (lift), 120 lbs (extension crate)
- Shipping Dimensions: 113"L x 22"W x 40"H (car lift), 38"L x 17"W x 14"H (extension crate)
- Concrete Requirement: 6" thick concrete at 3500 psi reinforced with fiberglass or steel (4" for vehicles under 9,000 lbs)
Included Parts:
- 4 pieces of adjustable screw pads
- 4 pieces of 4" tall truck adapters (height extensions)
- 10 anchor bolts
- 10 shims
- 2 tool trays
- 2 toe guards
Optional Parts:
- 2 3/4" and 6" Tall Truck Adapters
Features:
- Dynamic & Static Load Tested: 115% dynamic and 150% static load capacity ensures performance under heavy loads.
- Durable Hydraulic System: Offers easy operation and maintenance, with a relief valve built into the power pump to prevent overloading.
- Automatic Arm Lock Restraints: Ensures safe and secure lifting with automatic arm lock restraints during lifting operations.

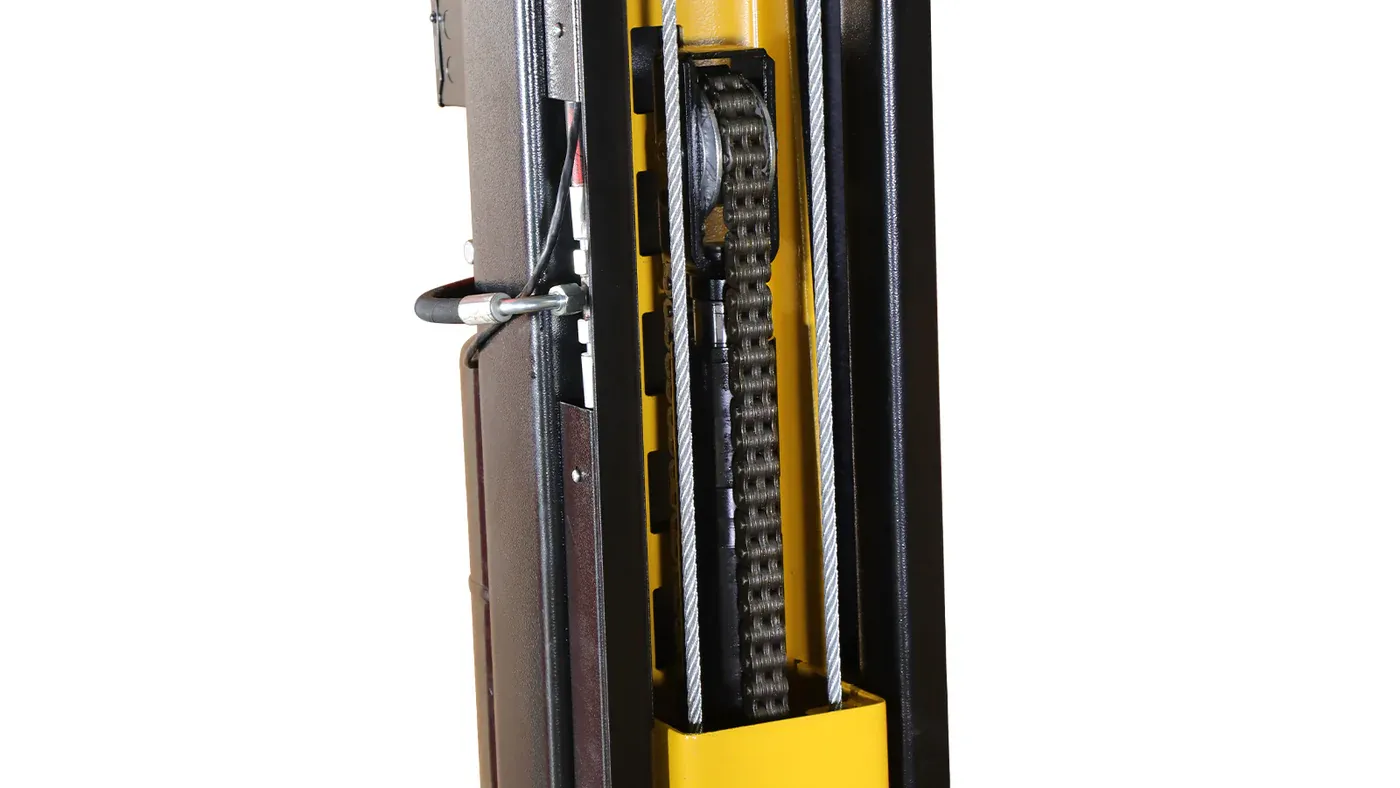

- Heavy Duty Cable and Pulley: Uses 3/8" diameter cable and 5" pulley to reduce stress on the system, improving durability and performance.
- Self-Lubricating Nylon Slider: Ensures smooth and efficient carriage movement with minimal maintenance.

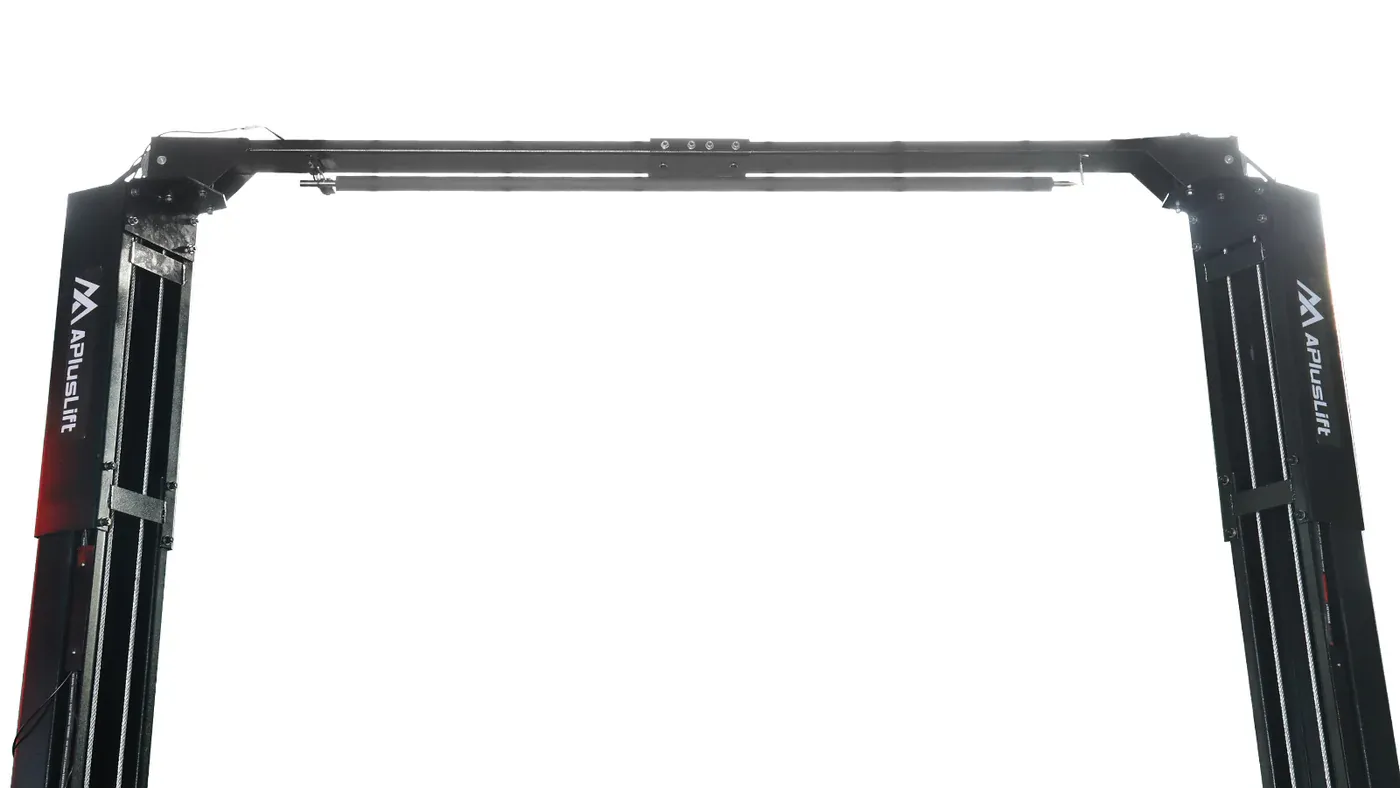

- Up-Limit Switch: Protects cylinders by limiting their working stroke to a safe length.
- Rubber Door Guards: Protects the vehicle doors from damage during operation.
Why Choose the HW-10ASY?
- Maximized Door Clearance: The asymmetrical design with a 30-degree rotated column allows for maximum door access, making it ideal for vehicle repairs and maintenance.
- High-Quality Construction: Robot-welded structure with a durable powder-coated finish ensures long-lasting, reliable operation.
- Ease of Use: With simple controls and minimal maintenance, this lift is perfect for both professional and home use.
