APlusLift 10,000LB 2-Post Overhead Heavy Duty Car Lift with 3 Year Warranty - HW-10KOH-A
$ 1,289.79
$ 2,529
APlusLift HW-10KOH-A Overhead Car Lift
APlusLift HW-10KOH-A Overhead Car Lift - 10,000 lb Capacity
Industry-Leading 3 YEAR WARRANTY (A $499 Value!)
The APlusLift HW-10KOH-A Overhead Car Lift combines affordability with robust performance. Engineered with a strong double "S" column design, this lift provides a 10,000 lb lifting capacity, making it suitable for various applications, from everyday repairs to heavy-duty truck lifts. The lift also offers an adjustable screw pad system and includes truck adapters for added convenience.
Key Features & Benefits:
- 10,000 lb Lifting Capacity: Suitable for a wide variety of vehicles, including trucks and SUVs.

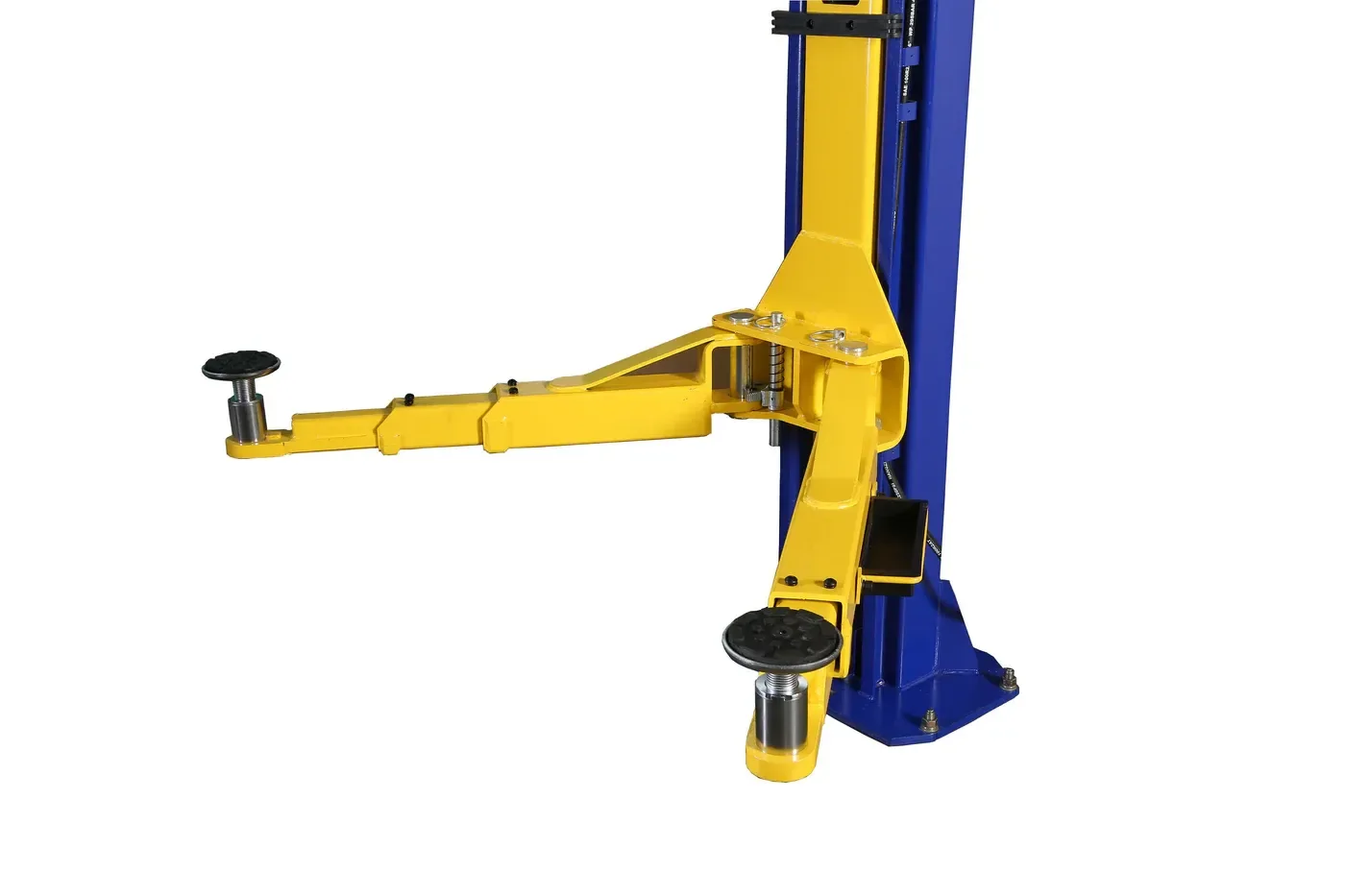

- Combo (Symmetrical and Asymmetrical) Arm Assembly: Versatile arm assembly adapts to a variety of vehicle lift points.

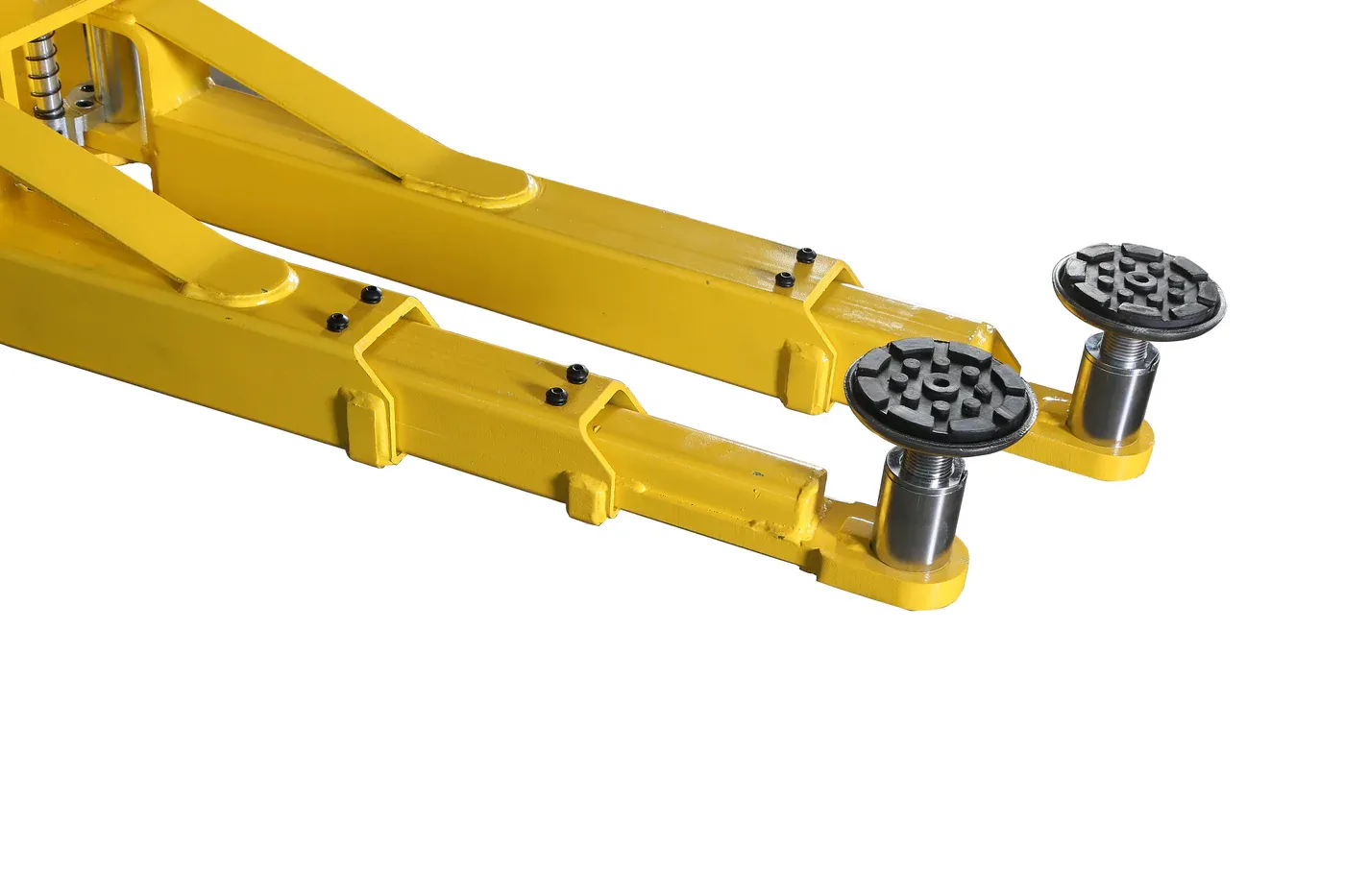

- Adjustable Screw Pads: Provides customizable lift height options for different vehicles.
- CE Certified: The lift structure and hydraulic system are CE certified and tested for 115% dynamic and 150% static load capacity.
- Truck Adapters: Includes 4" tall truck adapters, offering up to a 6'9" lift height with adapters in place.
- Durable Powder Coated Finish: Ensures the longevity of the lift and protection against corrosion.

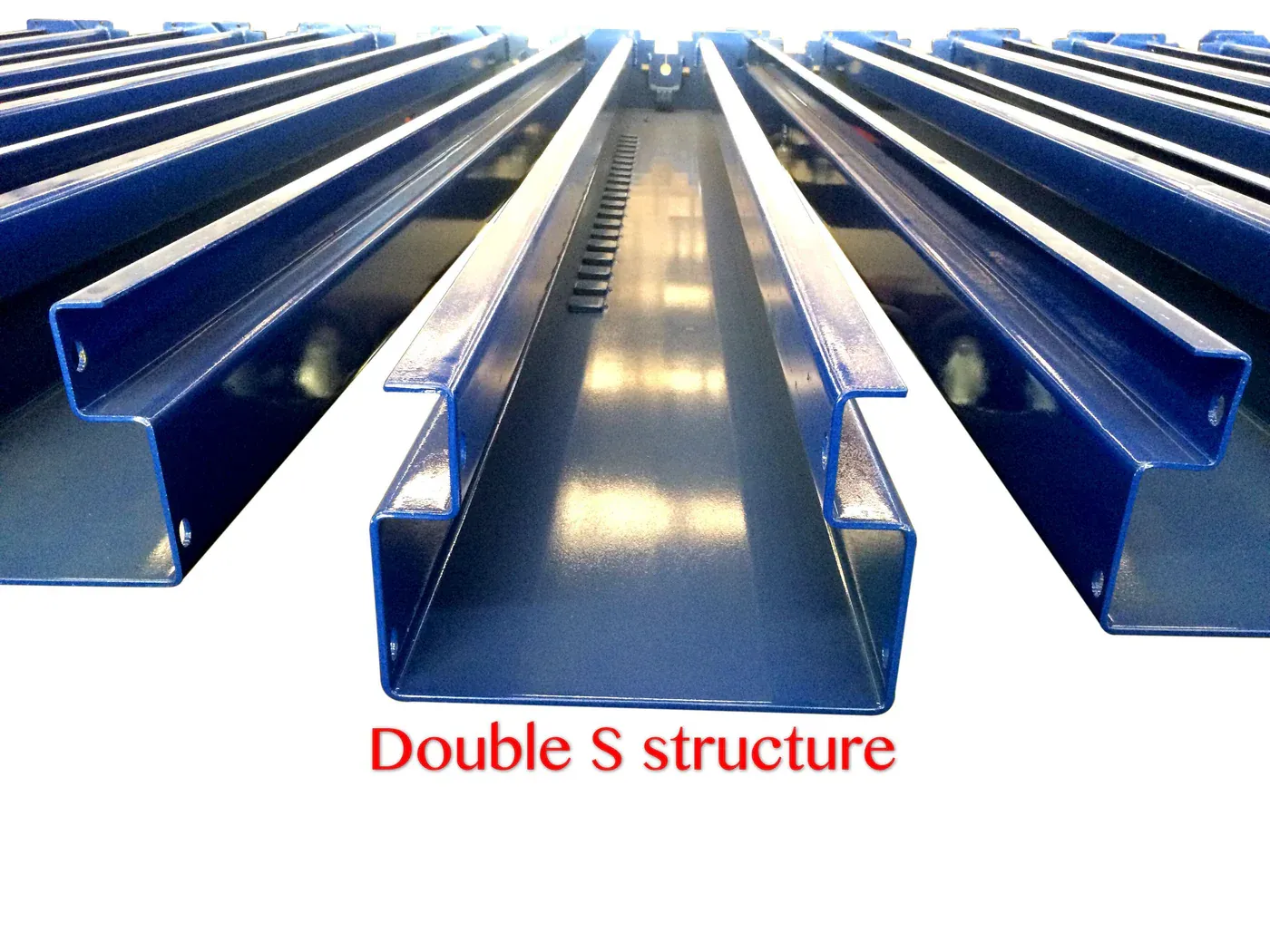

- Double "S" Column Design: Enhances the lift's strength and stability, offering robust performance.
- Easy Operation: Manual lowering operation with a press of a lever and lifting operation via "UP" button on the motor.
- Industry-Leading Warranty: 3-year (36 months) warranty on all parts (a $499 value!).
Specifications:
- Model: HW-10KOH-A
- Warranty: 3 Years (36 Months)
- Lifting Capacity: 10,000 LB
- Overall Height: 143 3/16"
- Maximum Lift Height with Truck Adapters: 81"
- Maximum Lift Height without Truck Adapters: 75"
- Minimum Height of Adjustable Pads: 4"
- Drive-Through Width: 100"
- Column to Column Width: 109"
- Motor: 220V Single Phase 3HP 10A (recommend a 30A breaker)
- Hydraulic Oil: 3-5 gallons AW32/AW46 (not included)
- Time to Full Rise: 50 seconds
- Shipping Weight: 1,470 LB
- Shipping Package Size: 113"L x 22"W x 40"H
- Concrete Requirement: 6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles under 9,000 lbs)
Parts Included:
- 4 pieces of adjustable screw pads
- 4 pieces of 4" tall truck adapters (height extensions)
- 10 anchor bolts
- 10 shims
- 2 tool trays
- 2 toe guards
Optional Parts:
- 2 3/4" and 6" Tall Truck Adapters
Construction & Features:
- CE Certified: Lift structure and hydraulic system are third-party tested for a dynamic load capacity of 115% and a static load capacity of 150%.
- Hydraulic System: Durable and reliable, ensuring smooth operation.
- Double Point Safety Lock Release: For secure and safe operation during lifting and lowering.

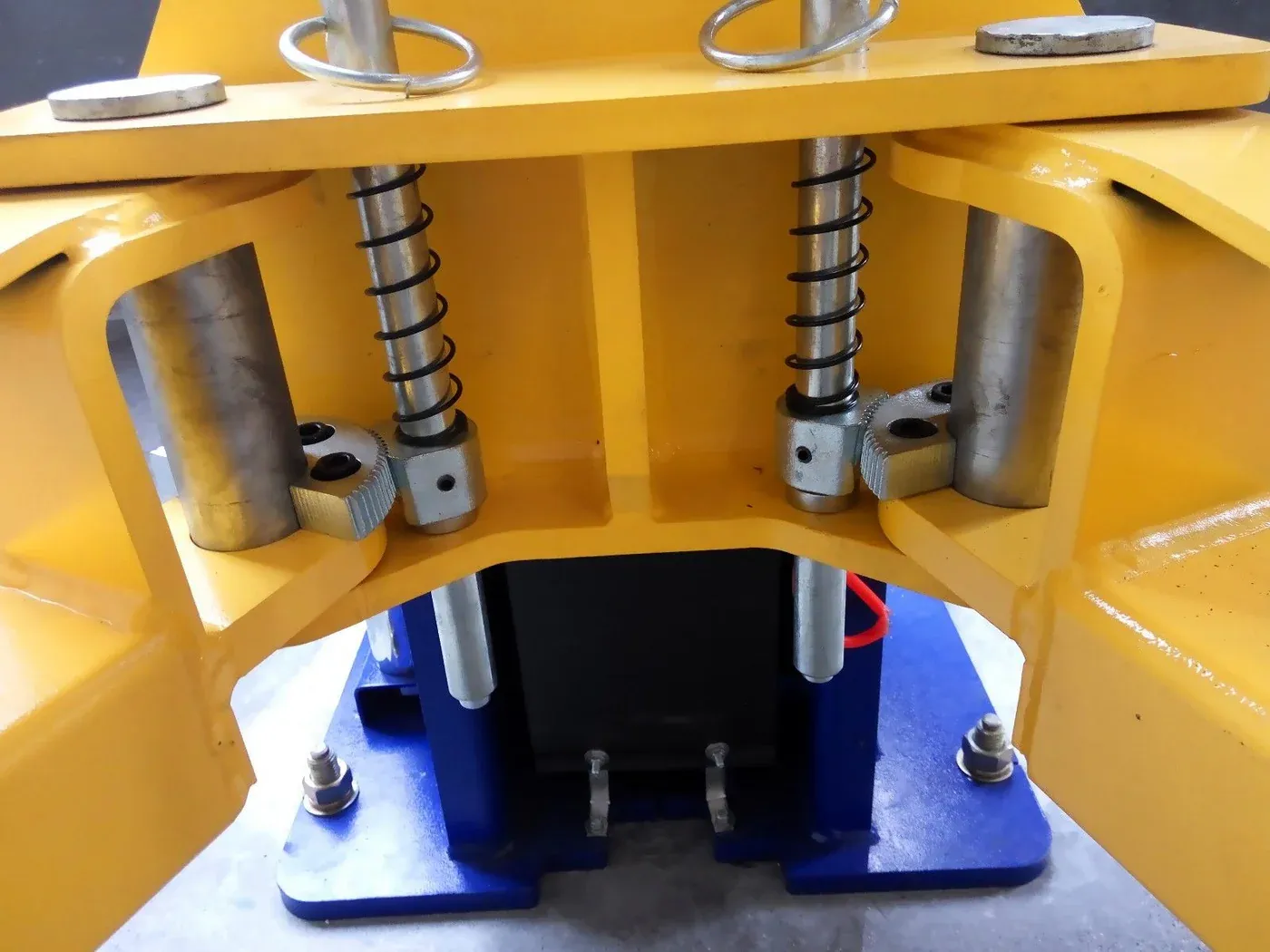

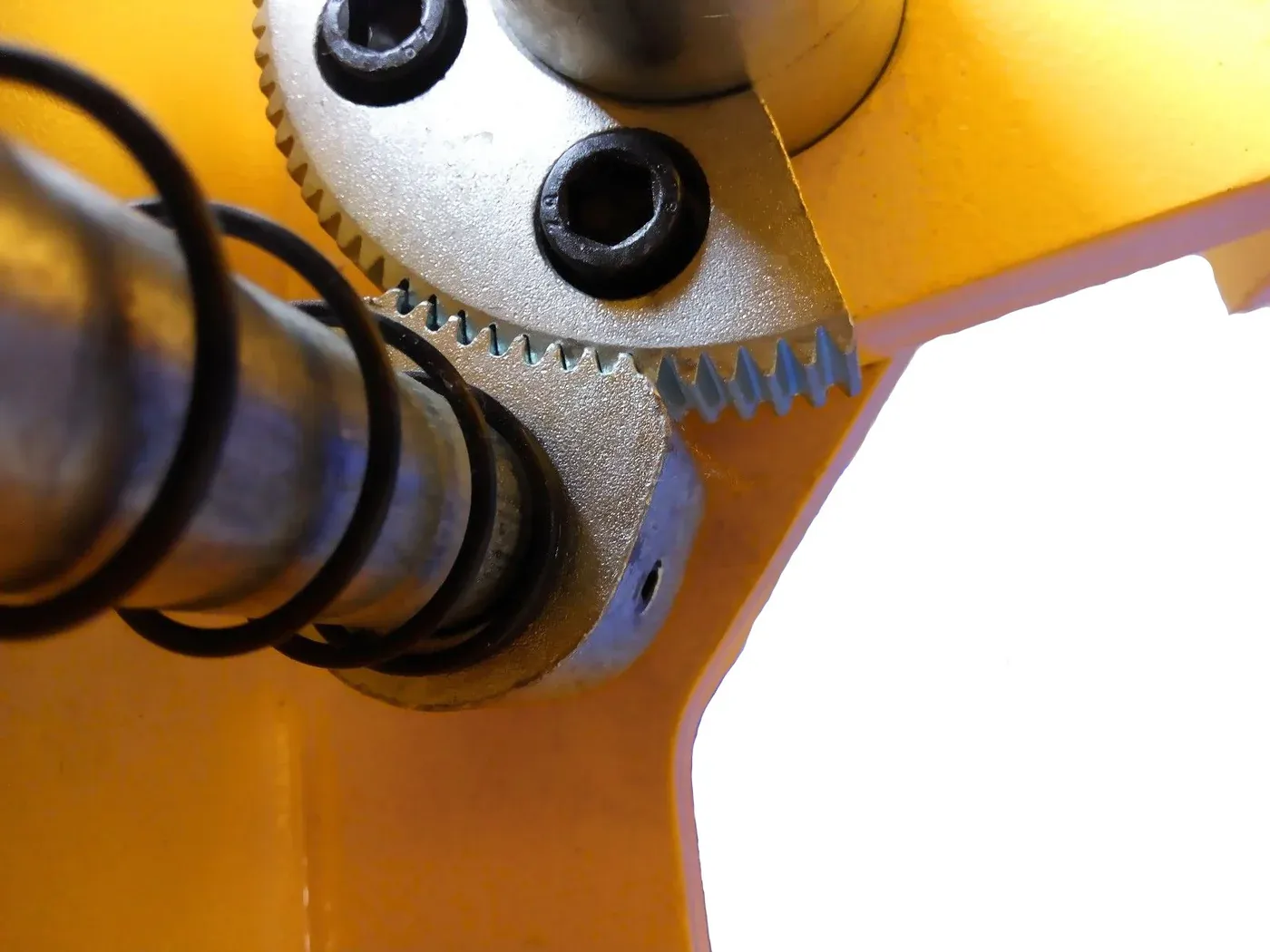

- Automatic Arm Lock Restraints: Provides safety during operation.
- Heavy Duty Cables: 3/8" diameter cables and 5" pulleys reduce stress and increase cable life.
- Ultra High Molecular Nylon Sliders: Ensures smooth carriage movement with low friction.

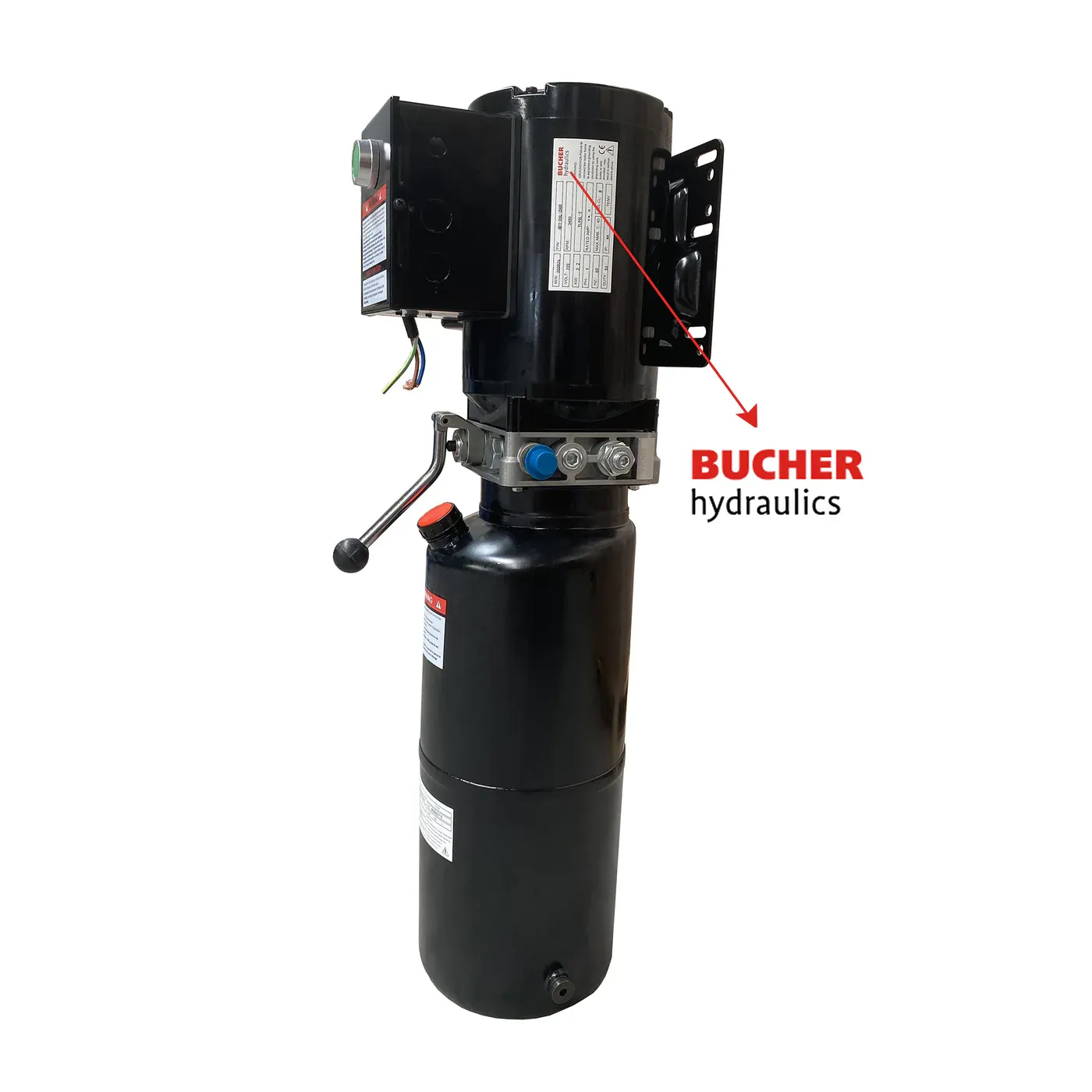

- Relief Valve Protection: Built into the power pump to prevent overloading.
Ideal For:
- Automotive repair shops and dealerships
- Fleet maintenance facilities
- Tire and alignment centers
- Enthusiast garages
