APlusLift 10,000LB 2-Post Overhead Single Release Car Lift with 3 Year Warranty - AP-10SR
$ 1,442.79
$ 2,829

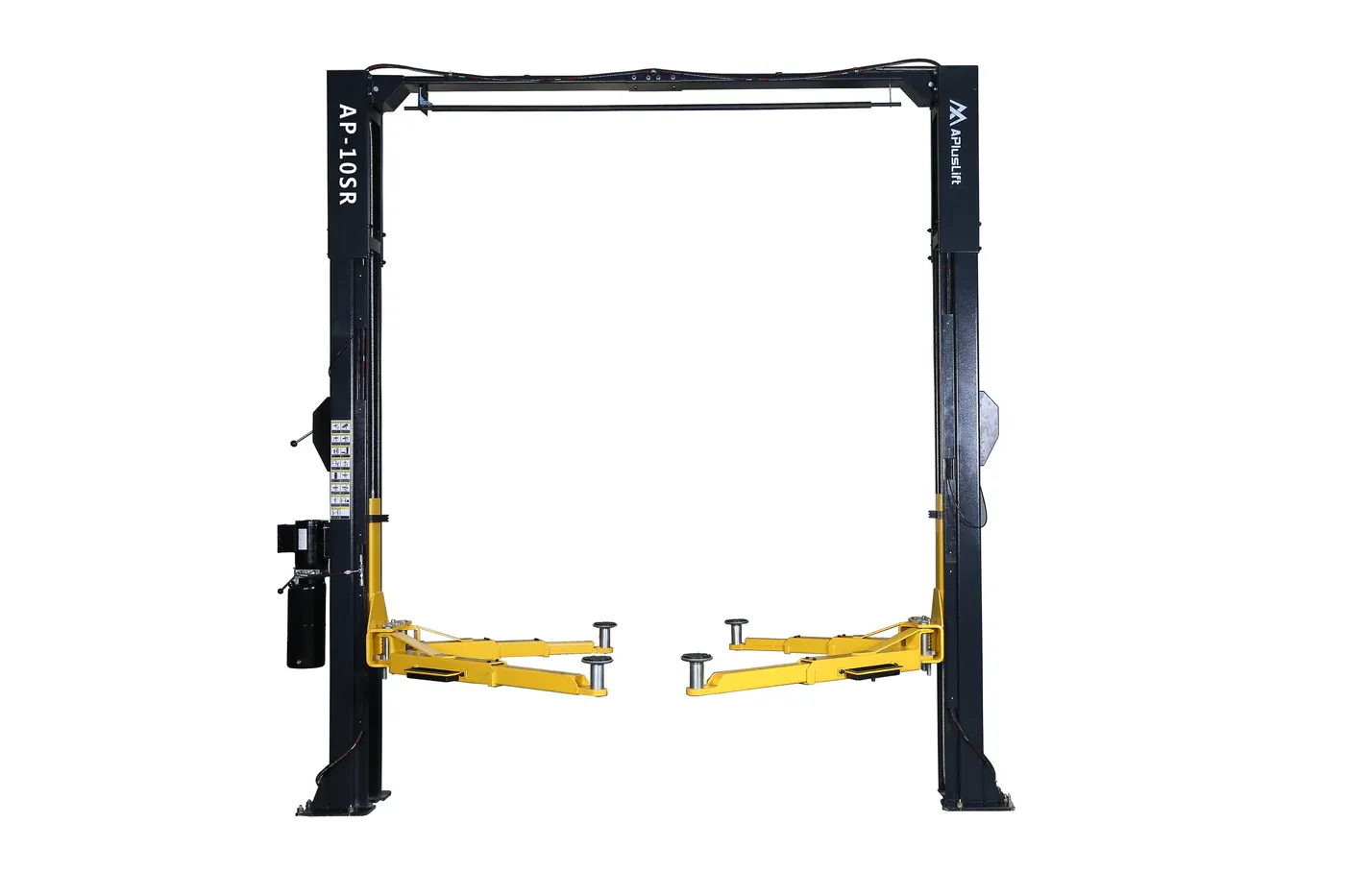

APlusLift AP-10SR 10,000 lb Capacity Overhead Car Lift
APlusLift AP-10SR 10,000 lb Capacity Overhead Car Lift
Quality, Affordability, and Reliability: The APlusLift AP-10SR
The APlusLift AP-10SR is one of the most affordable overhead car lifts, offering a combination of quality materials, superior workmanship, and excellent lifting performance. Upgraded from the bestselling HW-10KOH-A model, the AP-10SR features a single point safety lock release system and a strong double "S" column design to support up to 10,000 lbs. With its CE certification and high-performance hydraulic system, the AP-10SR is perfect for automotive professionals looking for a reliable, cost-effective solution.
Key Features and Benefits:
- Industry-Leading 3-Year Warranty: Enjoy peace of mind with a 3-year warranty (a $499 value) covering all parts.
- Single Point Safety Lock Release System: Effortless, quick, and safe operation for technicians.

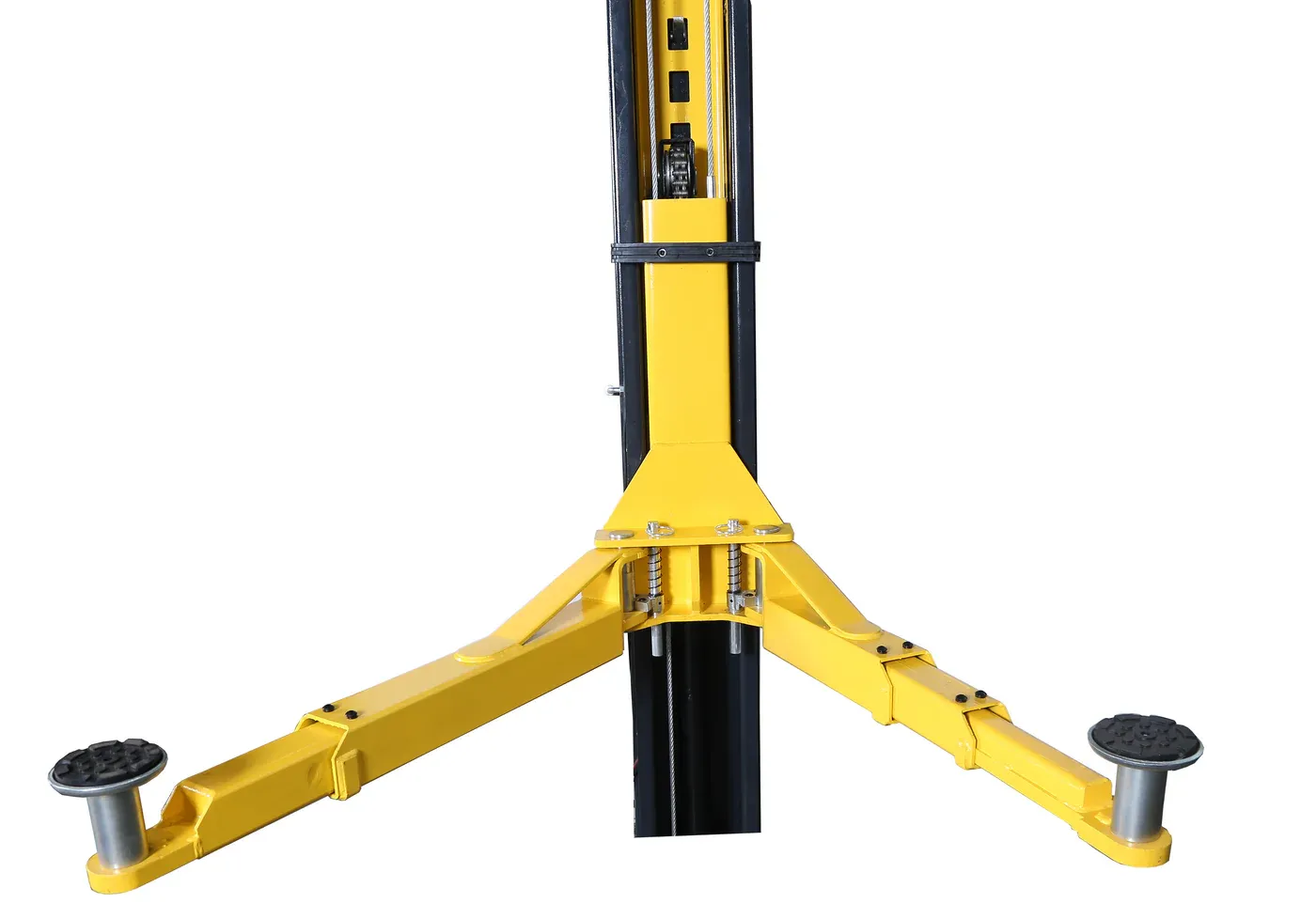

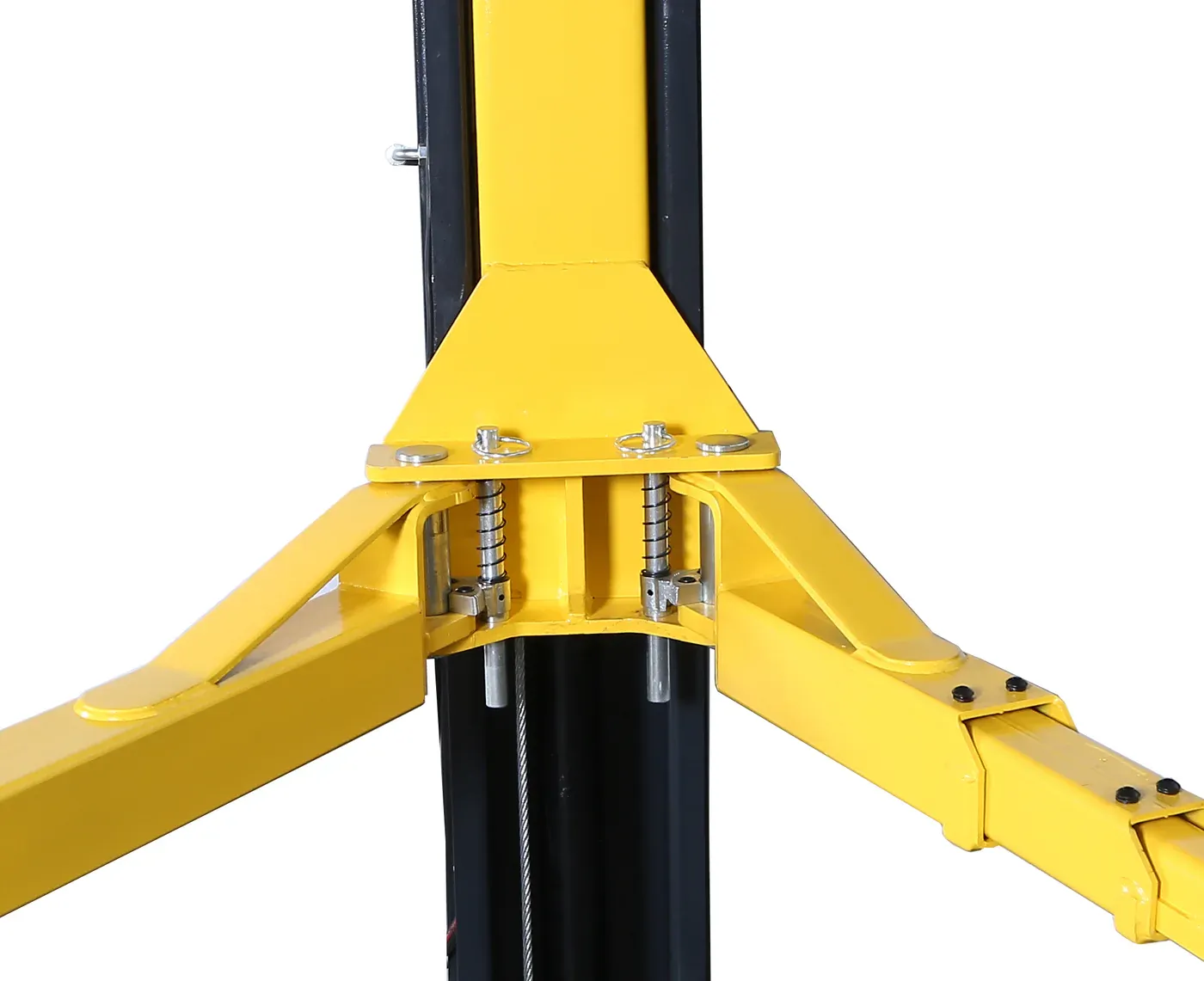

- Combo (Symmetrical and Asymmetrical) Arm Assembly: Adjustable screw pads for various vehicle sizes and configurations.
- CE Certified Lift Structure and Hydraulic System: Tested for 115% dynamic load capacity and 150% static load capacity, ensuring maximum safety.
- Truck Adapters Included: Includes a set of 4" tall truck adapters, allowing for a maximum lift height of 81" with adapters.
- Durable Robot-Welded Structure: Powder-coated finish for long-lasting durability and corrosion resistance.
- Affordable and Reliable: Built with quality materials and designed for ease of use and maintenance.

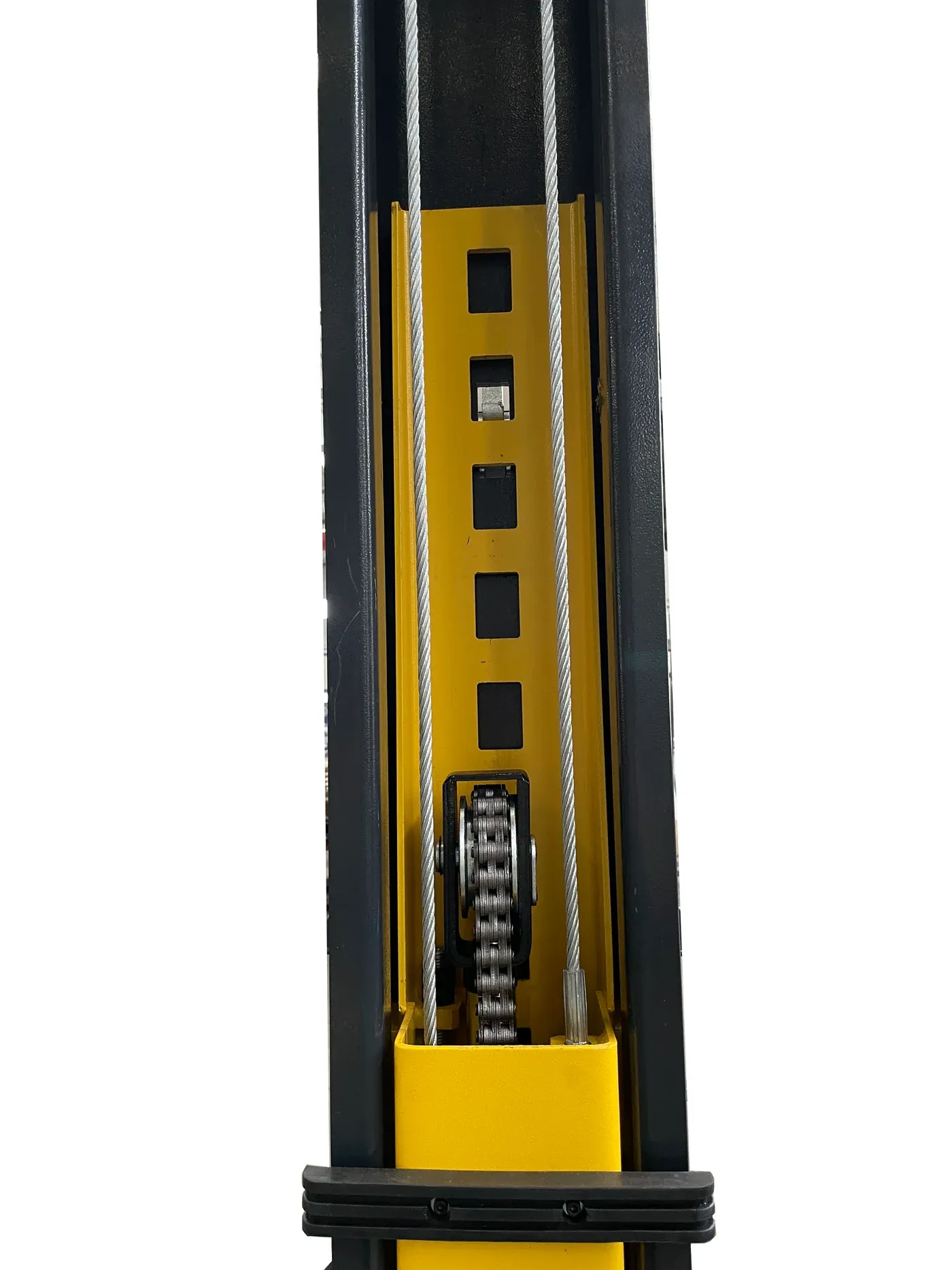

- Fast and Smooth Lifting Operation: Dual hydraulic cylinders and chain drive lift with a full rise time of just 50 seconds.
Specifications:
- Model: AP-10SR
- Lifting Capacity: 10,000 lbs
- Overall Height: 143 3/16"
- Maximum Lift Height with Truck Adapters: 81"
- Maximum Lift Height without Truck Adapters: 75"
- Minimum Height of Adjustable Pads: 4"
- Drive-Through Width: 100"
- Column to Column Width: 109"
- Column Cross Section: 11"L x 7"W
- Motor: 220V Single Phase, 3HP, 10A (30A breaker recommended)
- Hydraulic Oil: 3-5 gallons AW32/AW46 (Not included)
- Time to Full Rise: 50 seconds
- Shipping Weight: 1400 lbs
- Concrete Requirement: 6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles 9000 lbs and below)
Parts Included:
- 4 adjustable screw pads
- 4 pieces of 4" tall truck adapters
- 10 anchor bolts
- 10 shims
- 2 tool trays
- 2 toe guards
Optional Parts:
- 2 3/4" and 6" Tall Truck Adapters
Arm Assembly:
- Combo (Symmetrical and Asymmetrical) Arm Assembly
- Front Arms: Straight Front 3-stage reach from 22 7/8" to 42 5/8"
- Back Arms: Straight Rear 2-stage reach from 33 5/8" to 52 7/8"
Features:
- CE Certified Lift Structure and Hydraulic System
- Third-party tested with a dynamic load capacity of 115% and static load capacity of 150%
- Durable hydraulic system for smooth operation
- Easy to operate with a single point safety lock release
- Double seal rings protecting PU material for durability
- High-quality Q355 steel for carriage material (stronger than normal Q235 steel)

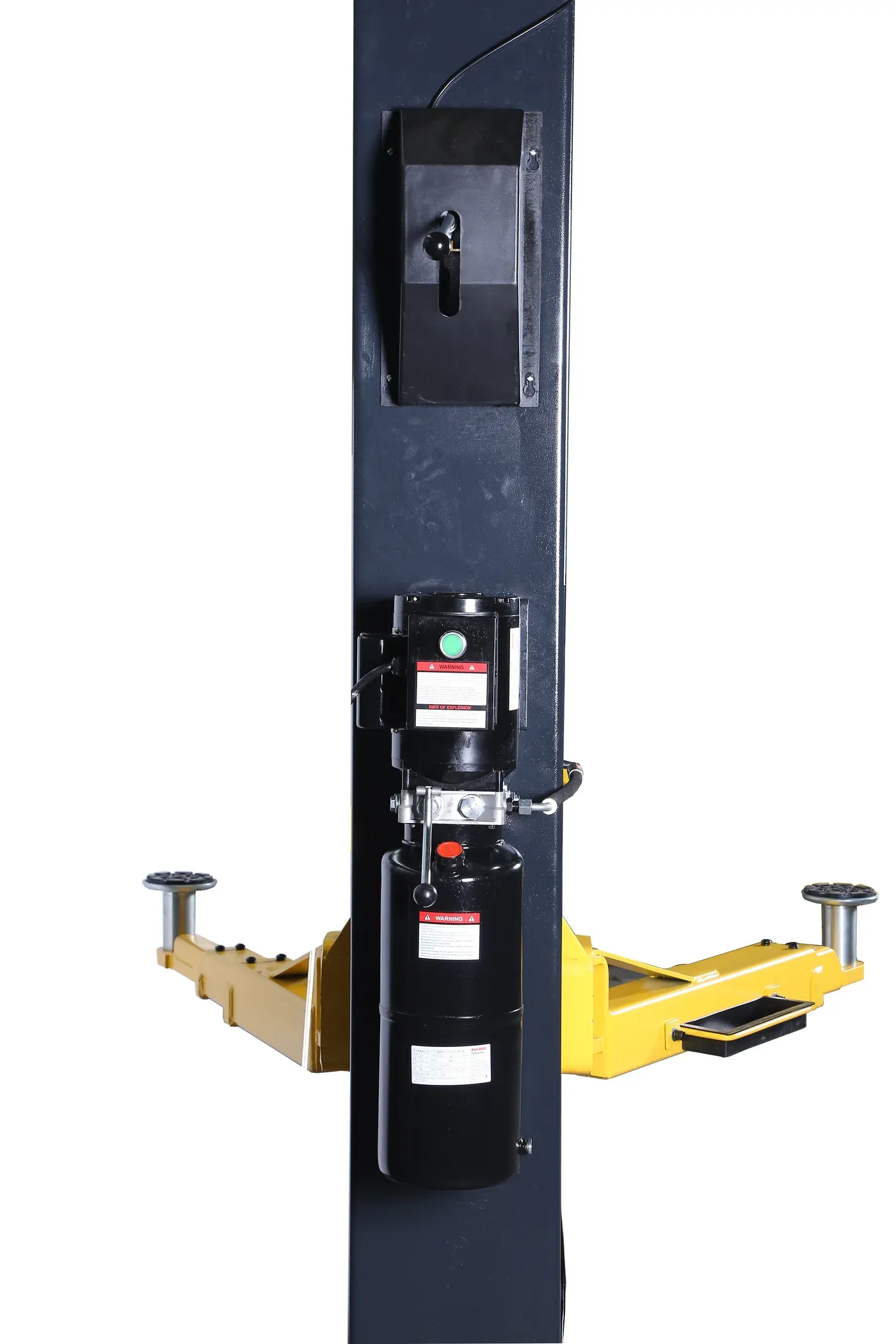

- Relief valve built into the power pump to prevent overloading

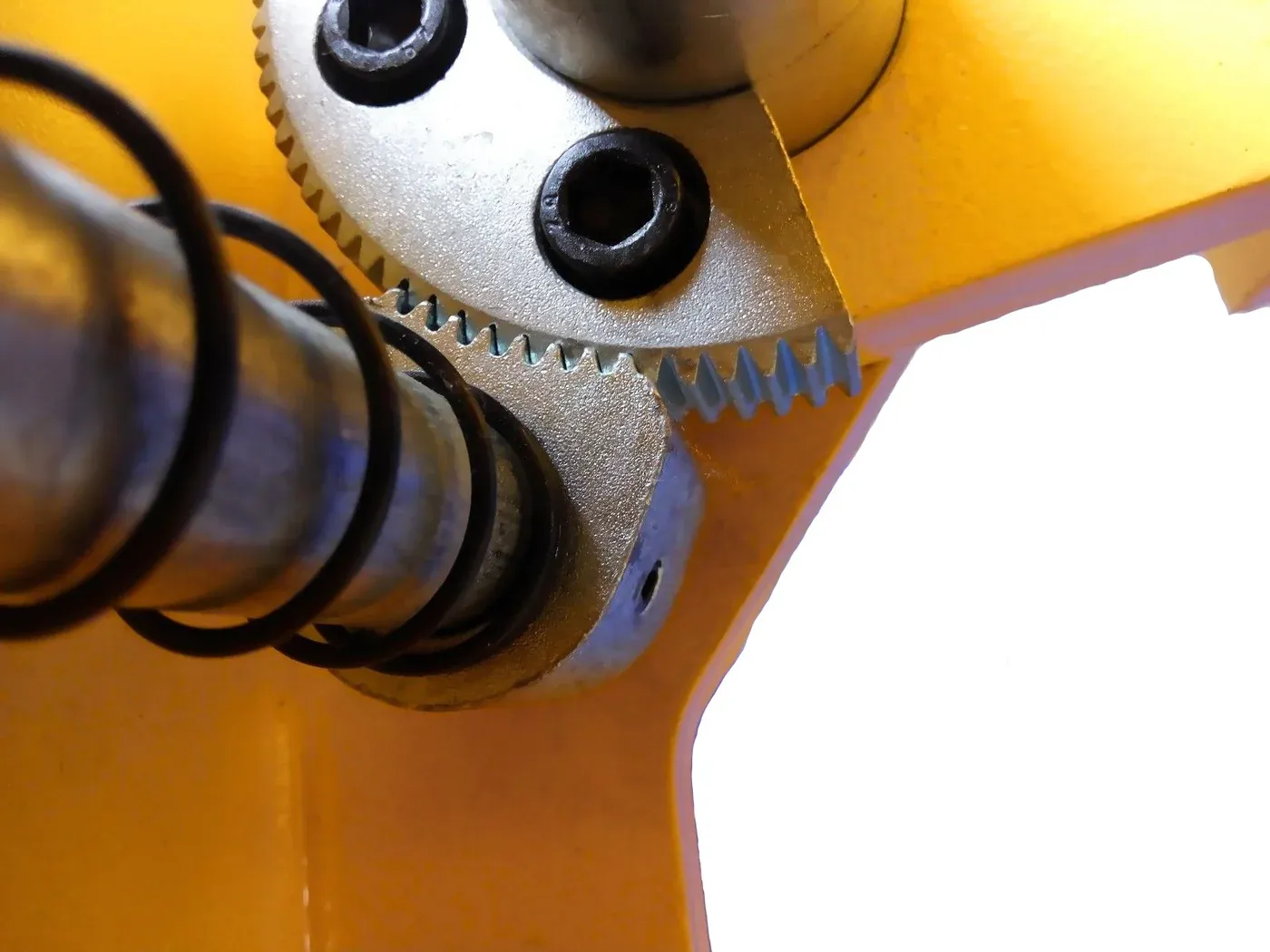

- Automatic arm lock restraints for additional safety
- Heavy-duty 3/8" diameter cable and 5" pulley for increased lifespan and reduced synchronization stress
- Ultra-high molecular self-lubricating nylon slider ensures smooth movement during lifting
Shipping and Installation:
Free shipping to the lower 48 states with forklift or similar equipment on-site (no liftgate). Pickup at a nearby terminal is also available. Please note that car lifts require on-site forklift assistance for unloading. Rental forklifts are not recommended.
