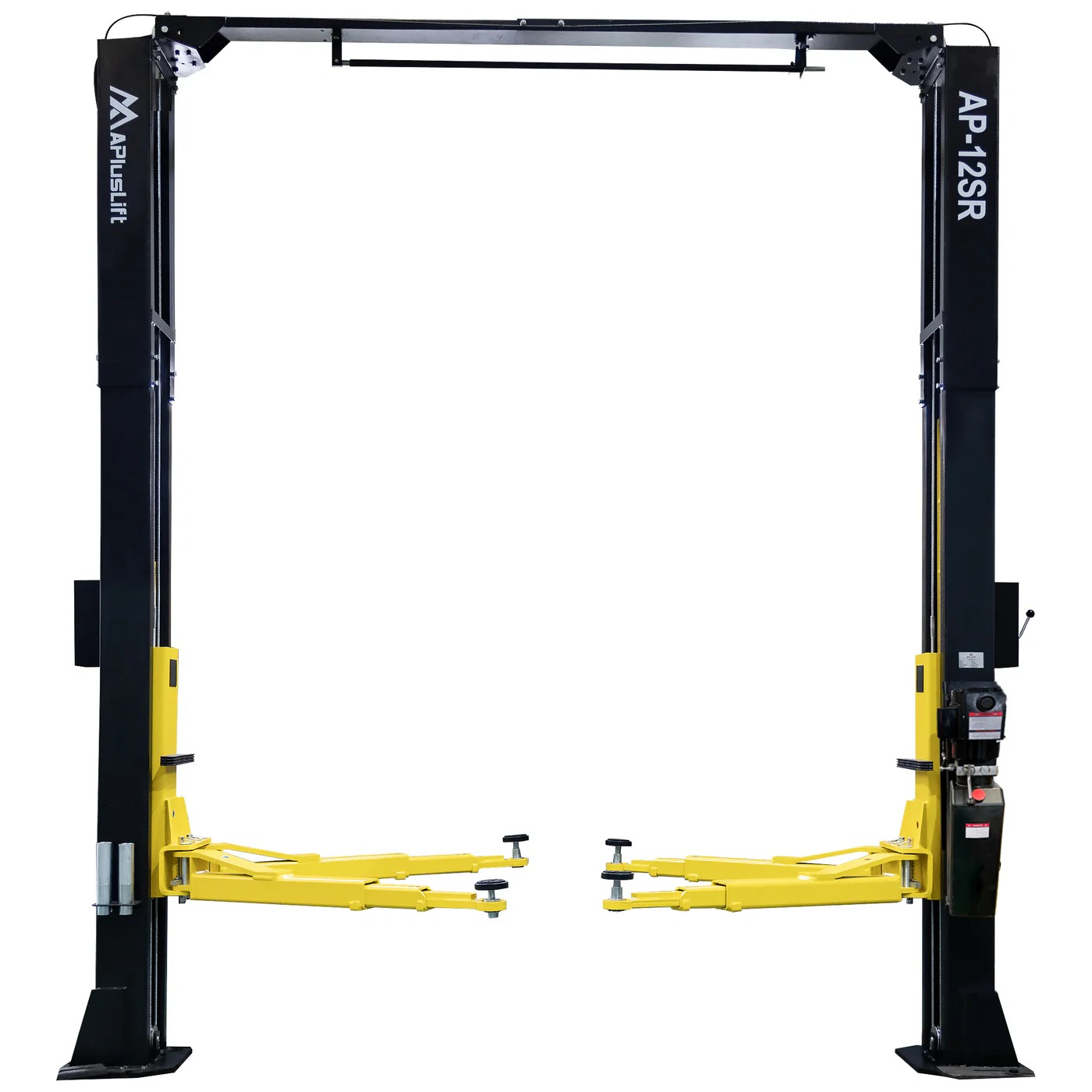

APlusLift 12,000LB 2-Post Overhead Single Release Direct Drive Car Lift with 3 Year Warranty - AP-12SR

APlusLift AP-12SR 12,000 LB Overhead 2-Post Car Lift – Commercial Grade with CE Certification

Built Tough for Professional Shops – Backed by an Industry-Leading 3-Year Warranty

Product Overview

The APlusLift AP-12SR is a top-tier, 12000 LB capacity 2-post overhead car lift engineered for reliability, safety, and durability in commercial garage environments. Its single-point safety lock release system, robot-welded steel frame, and direct-drive hydraulic cylinders make it a high-performance solution for lifting trucks, SUVs, and passenger vehicles.

With CE-certified structure and hydraulic system (tested at 115% dynamic and 150% static load capacity), this lift meets rigorous international safety standards. The AP-12SR includes two sets of 3" and 6" truck adapters, offering a maximum lift height of 79 inches and a generous 109-inch drive-through width for easy access.

Key Features

12,000 LB Capacity – Built for full-size pickups, SUVs, and heavy-duty applications

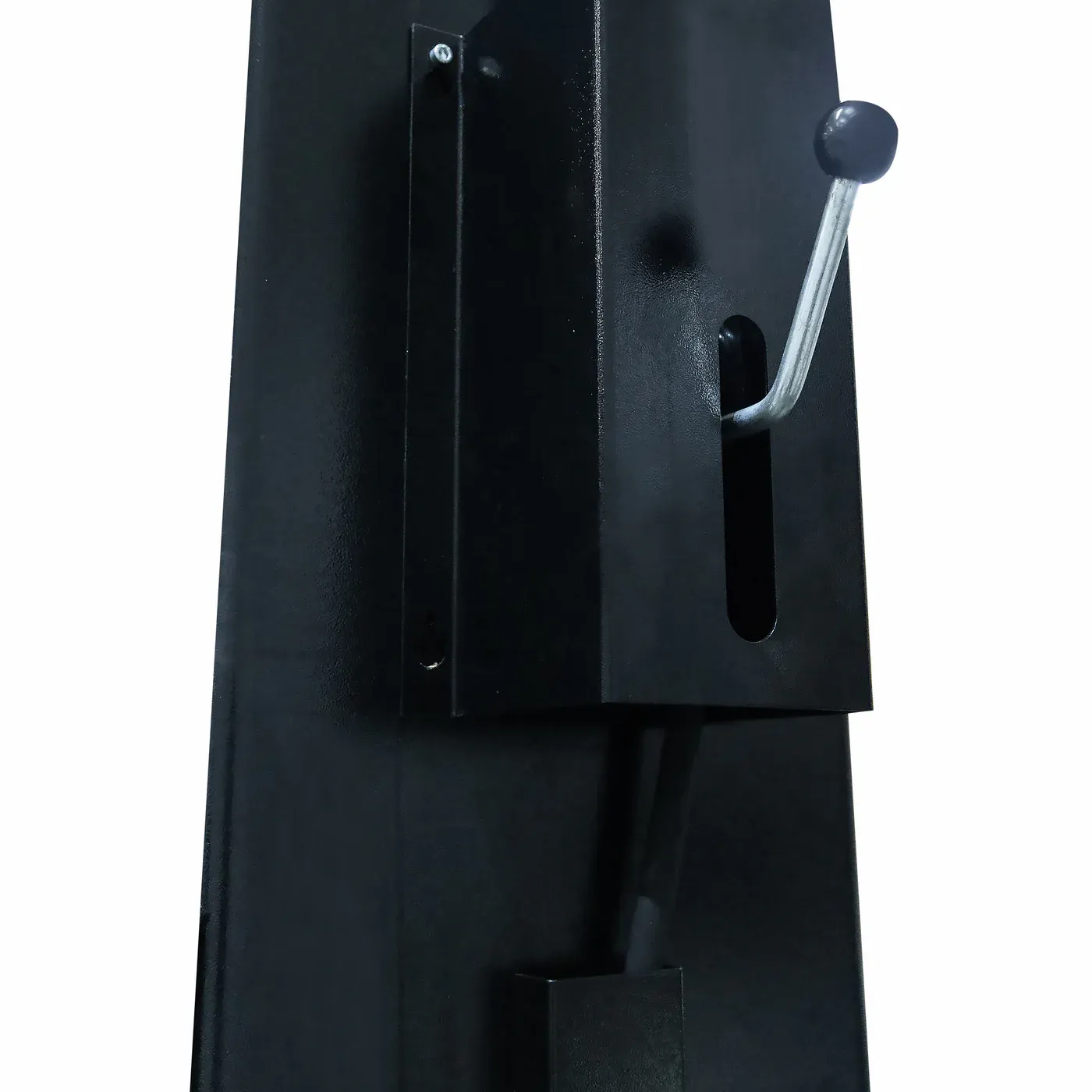

Single-Point Lock Release – Safe, simple operation with one-handed release

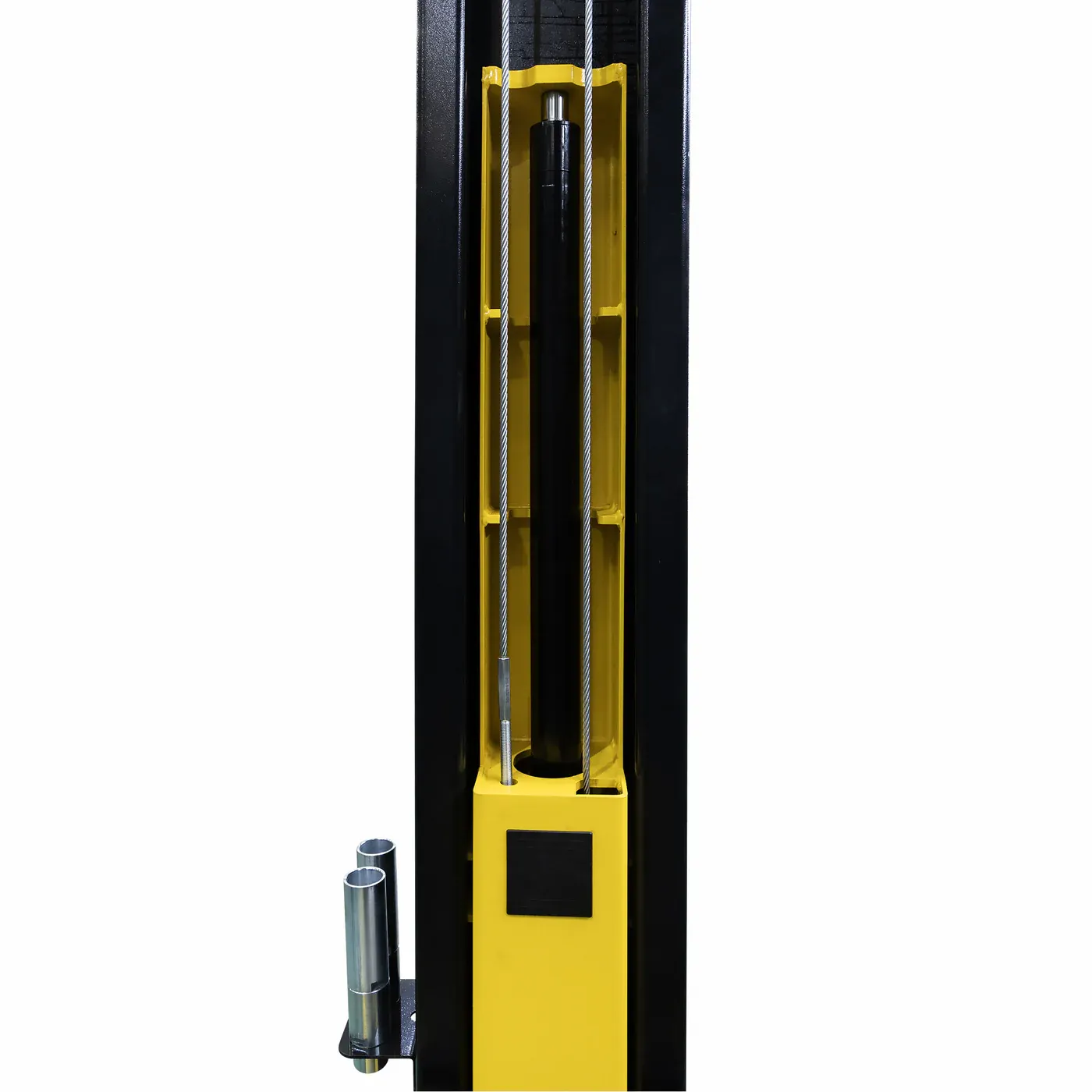

Direct Drive Dual Hydraulic Cylinders – Powerful and efficient lifting without chains
Symmetrical Arm Assembly – Ideal for balanced lifting of larger vehicles
Maximum Lift Height: 79" with truck adapters
Wide 109" Drive-Through Width – Accommodates wider vehicles with ease
Robot-Welded Steel Construction – Precision build quality for long-term reliability
Powder-Coated Finish – Durable corrosion resistance for professional use
Automatic Arm Restraints – Keeps arms securely in place during lifts

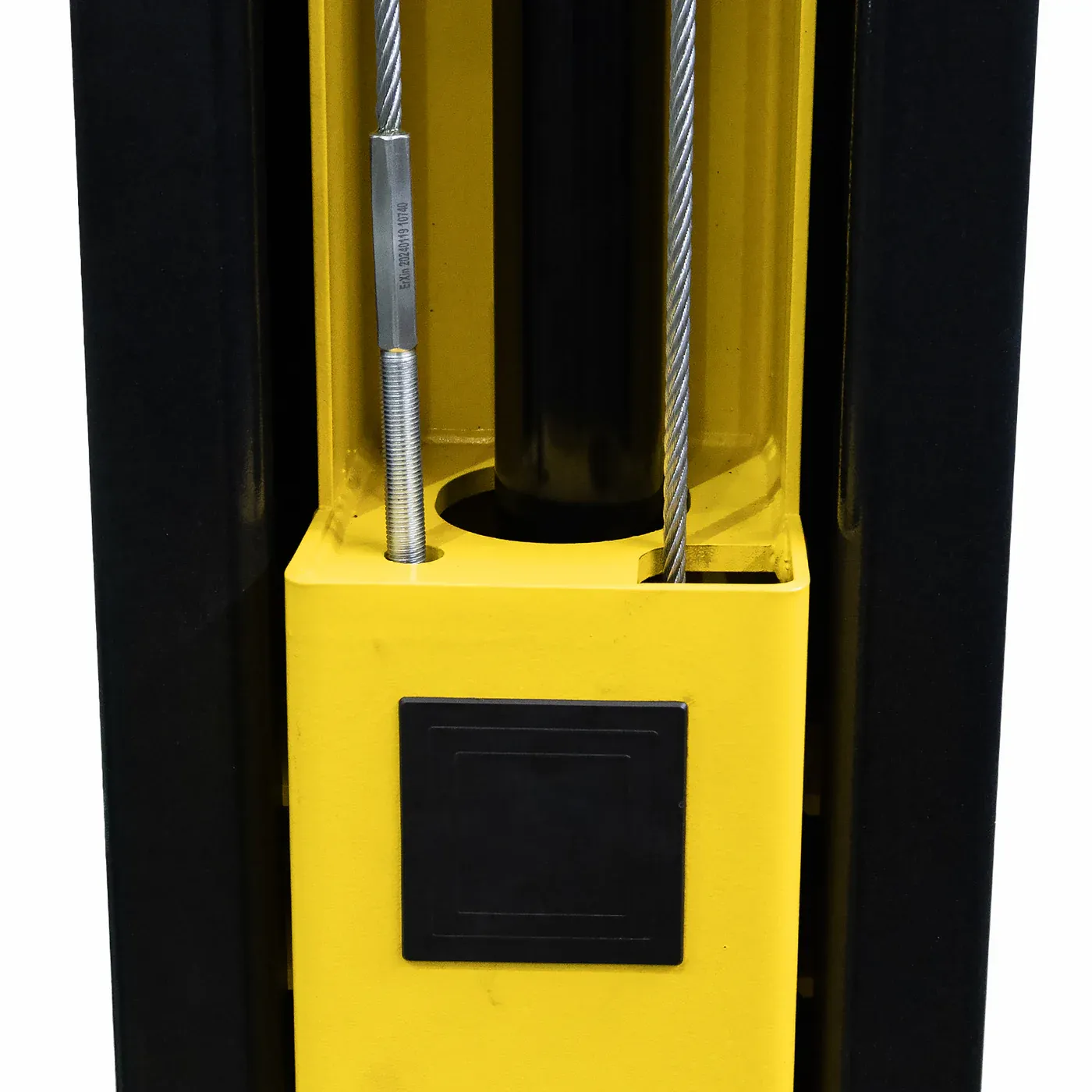

Heavy-Duty Cables and Pulleys – 3/8" diameter cables and 4-5/16" pulleys extend service life
Ultra High Molecular Nylon Sliders – Smooth carriage movement with low friction

Specifications

Model: AP-12SR
Lift Style: Overhead, 2-Post
Overall Height: 165"
Overall Width: 149"
Drive-Through Width: 109"
Lift Height with Truck Adapters: 79"
Lift Height without Truck Adapters: 70"
Pad Height (min): 4"
Column-to-Column Width: 123"
Steel Thickness: Columns & Carriage: 1/4", Base Plate: 13/16", Arms: 5/16"
Front & Rear Arm Reach: 3-Stage, 37 1/2" to 72 3/16"

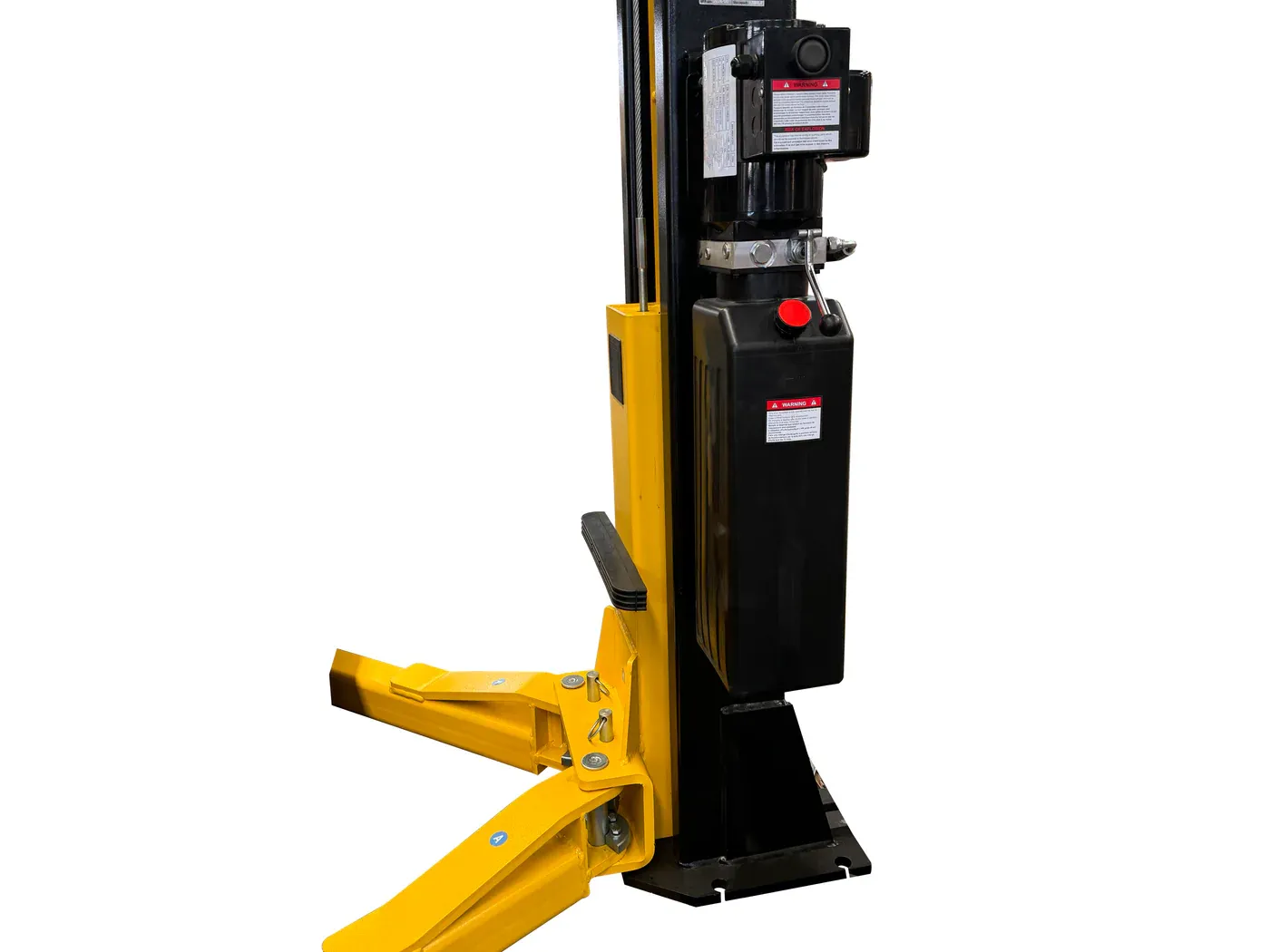

Motor: 220V Single Phase 3HP Inverter Motor (30A breaker recommended)
Lift Time: 75 seconds to full rise
Hydraulic Oil: 3–5 gallons AW32 or AW46 (not included)
Shipping Weight: 2,500 LB
Concrete Requirement: 6" thick at 3500 psi, reinforced

Included Accessories

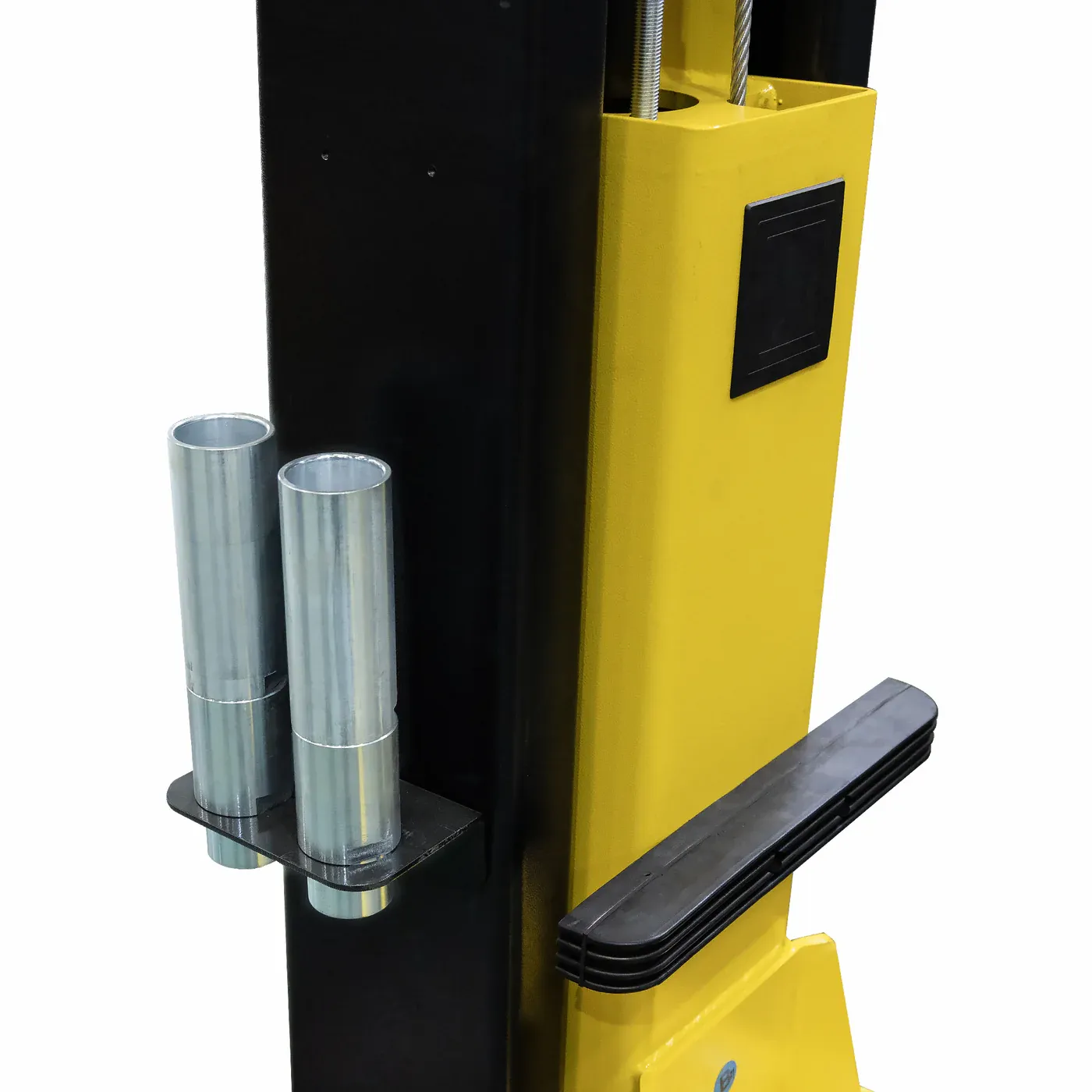

Two Sets of Truck Adapters: 3" and 6"
4 Adjustable Screw Pads
10 Anchor Bolts & 10 Shims
Installation Manual

Built for Safety & Longevity

CE Certified Lift & Hydraulics – Tested for 115% dynamic & 150% static load
Relief Valve – Built into power pump to prevent overloading
Up-Limit Switch – Prevents cylinder over-extension for added safety
Double Seal Rings – Extra protection for hydraulic cylinders
Q355 Steel Construction – Stronger than standard Q235 steel used in many lifts
Rubber Door Guards – Protect vehicle doors during service

Warranty & Shipping

3-Year Parts Warranty included – a $499 value, free with purchase. Full range of replacement and optional parts available.

Free Shipping to the lower 48 states. On-site forklift or similar equipment is required for delivery. Terminal pickup available for customers without unloading capability. See shipping policy for more details on remote or limited access locations.

Ideal For

Professional automotive repair shops, fleet maintenance facilities, or serious home garage setups looking for a dependable and powerful overhead lift system that’s built to last.
