APlusLift 12,000LB 2-Post Overhead Single Release Direct Drive Car Lift with 3 Year Warranty - HW-12HD

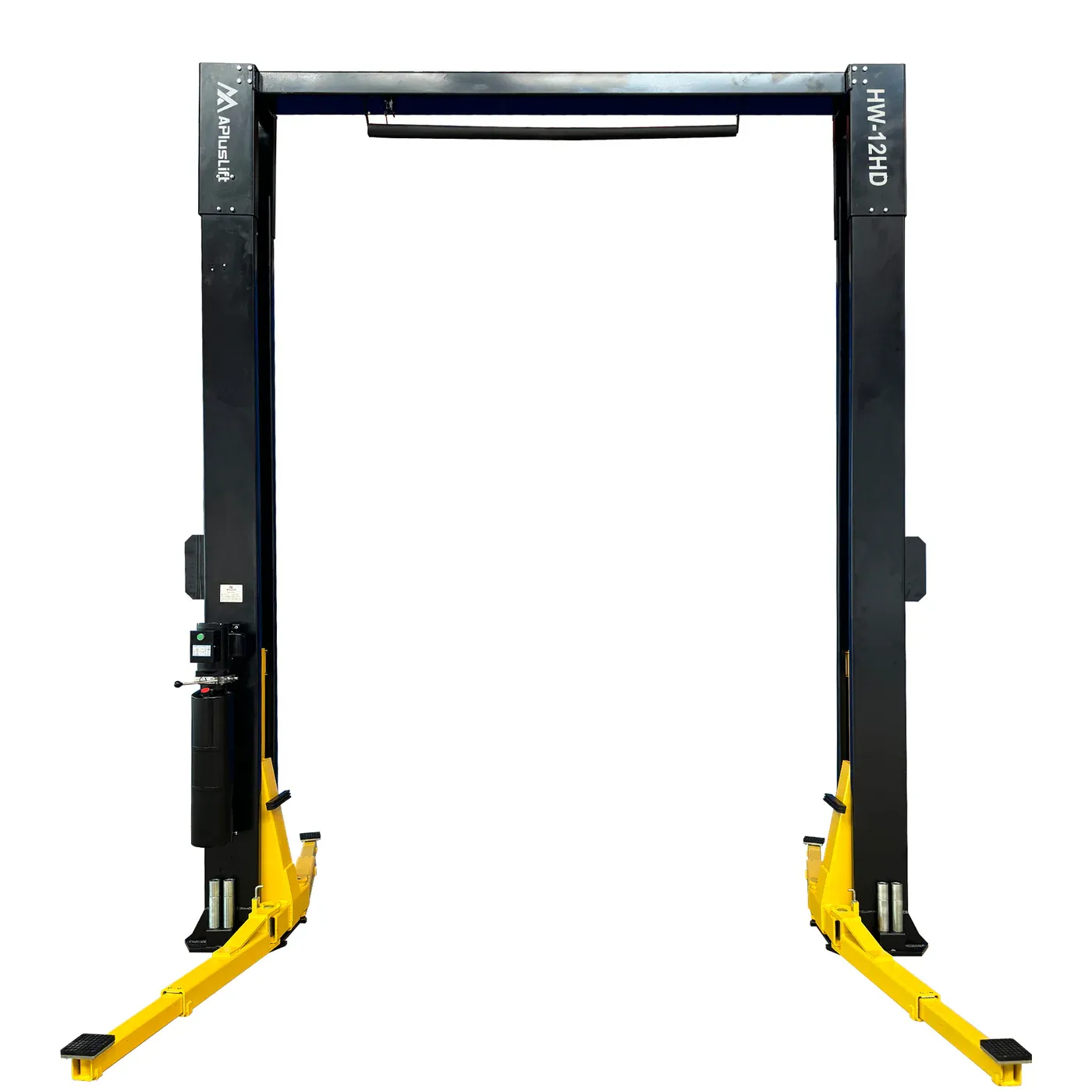

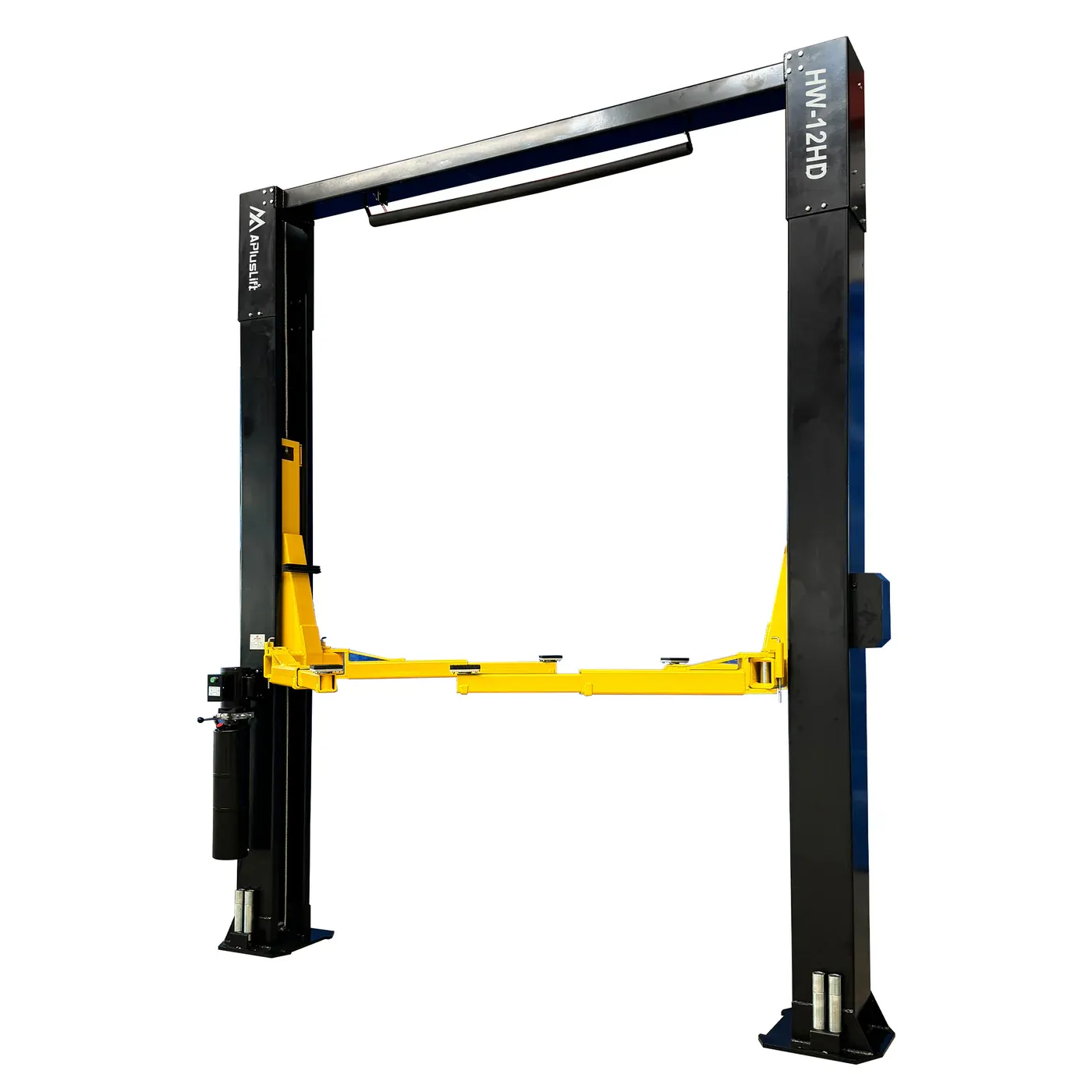

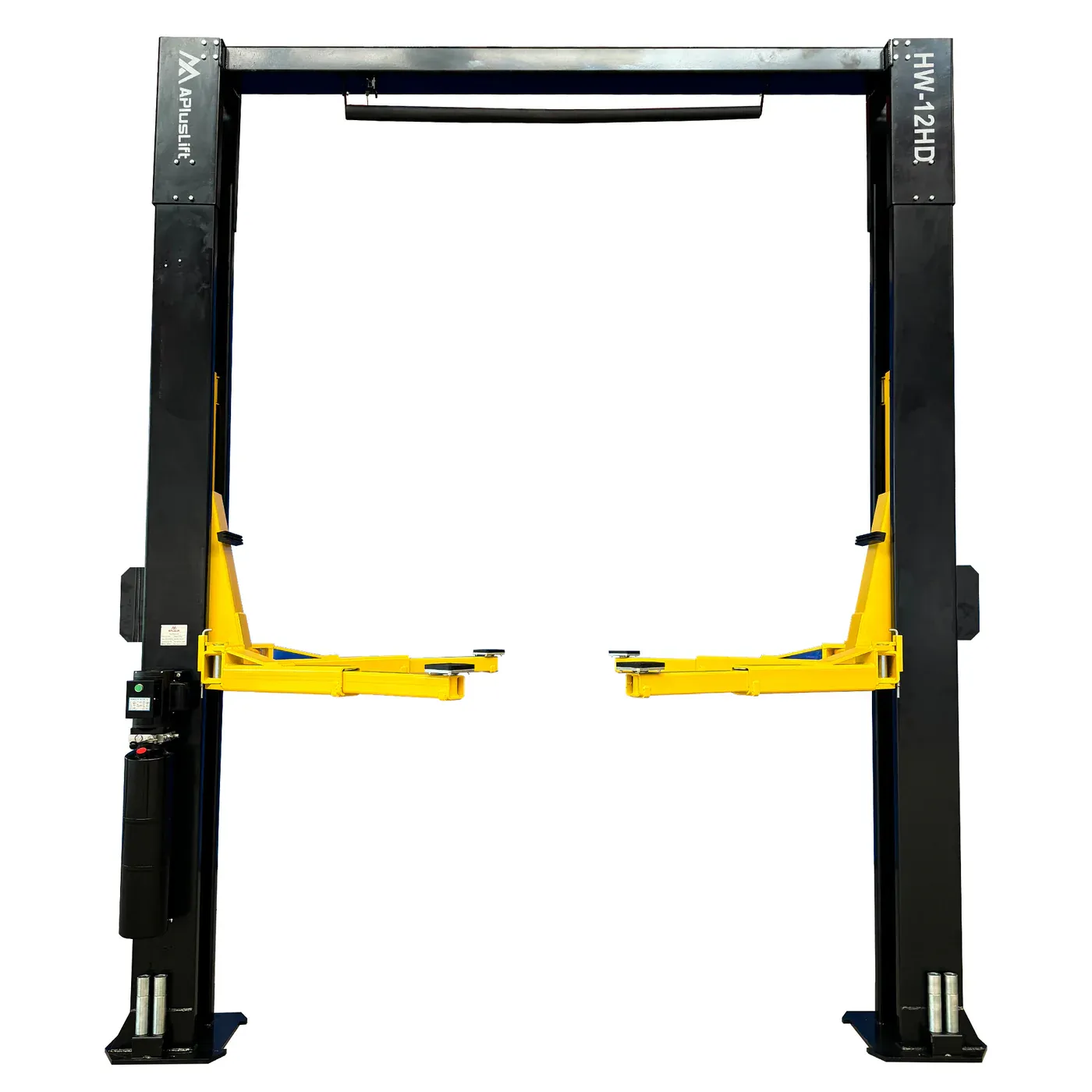

APlusLift HW-12HD 12,000 LB Overhead Car Lift

APlusLift HW-12HD 12,000 LB Single Point Release Overhead Car Lift

Industry Leading 3 YEAR WARRANTY (a $499 value!)

Elevate your garage or auto shop with the APlusLift HW-12HD, a powerful overhead car lift designed to safely and efficiently lift vehicles up to 12,000 lbs. Built with high-quality materials and a durable powder-coated finish, the HW-12HD is ideal for both commercial and residential use.

Key Features:

3 Year Warranty for all parts (a $499 value).
Single Point Safety Lock Release System for easy and safe operation.
Includes Two Sets of Truck Adapters: 2 3/4" and 5 1/2" Tall.
CE Certified Lift Structure and Hydraulic System – tested for 115% Dynamic Load Capacity and 150% Static Load Capacity.
Robot Welded Structure with durable powder-coated finish for superior corrosion resistance.

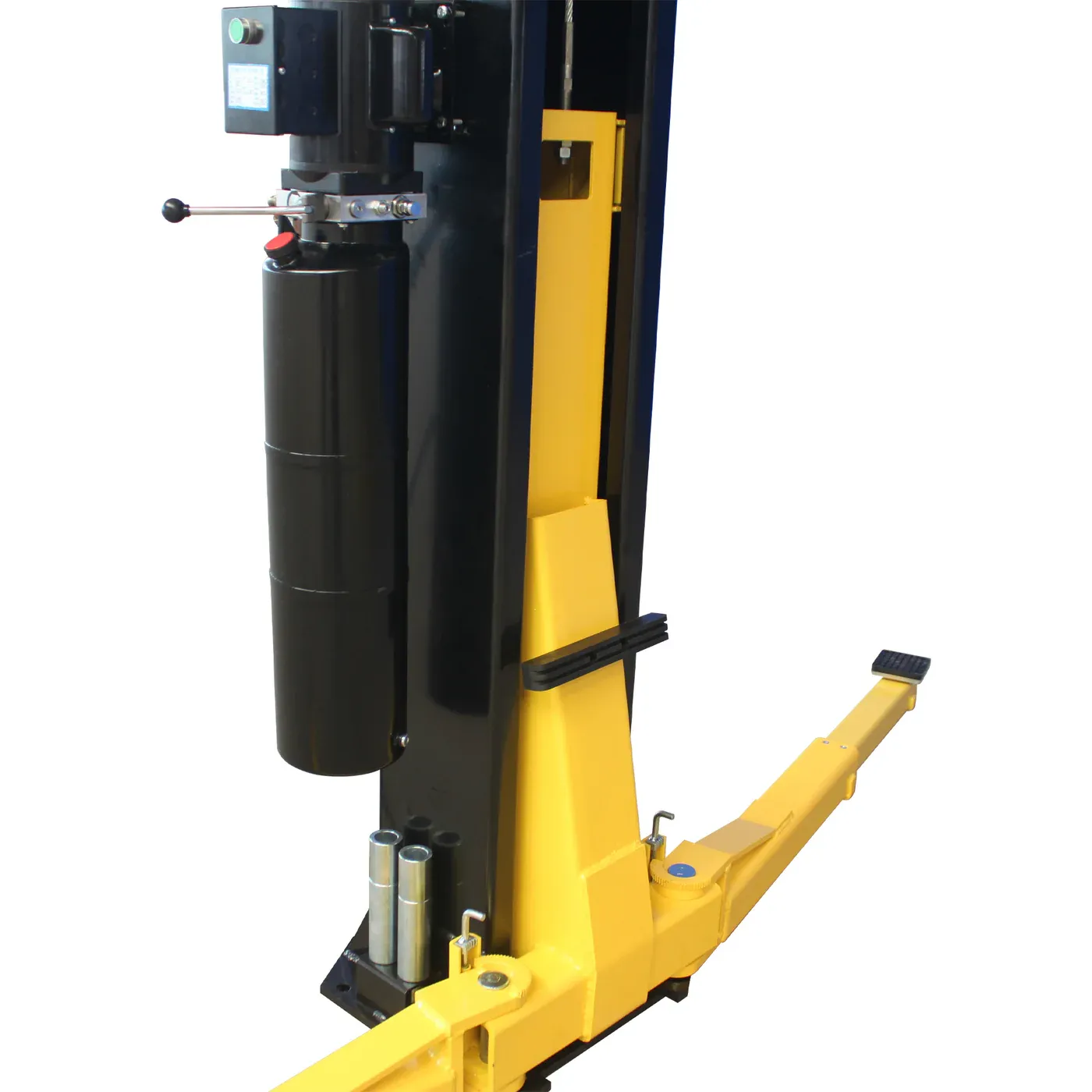

Direct Drive Mode with dual hydraulic cylinders for reliable lifting performance.
Hydraulic Oil capacity: 3.2-5 gallons AW32/AW46 (Not Included).

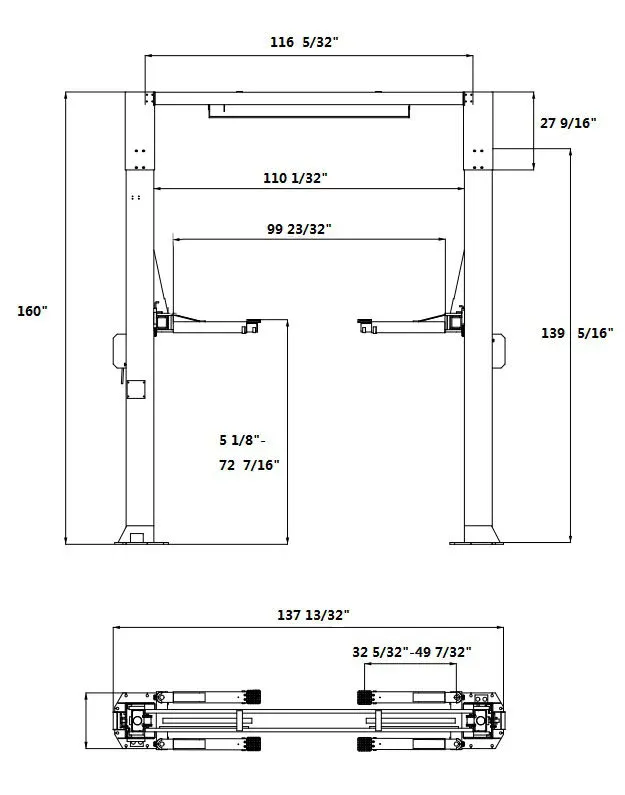

Specifications:

Model:	HW-12HD
Lock Release:	Single Point Release
Lifting Capacity:	12,000 lbs
Overall Height:	160"
Maximum Lift Height with Truck Adapters:	77 15/16"
Maximum Lift Height without Truck Adapters:	72 7/16"
Drive Through Width:	99 23/32"
Motor:	220V Single Phase 3HP (recommend a 30A breaker)
Time to Full Rise:	75 seconds
Shipping Weight:	2100 lbs
Concrete Requirement:	6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles 9000 lb and below)

Included Parts:

Two sets of Truck Adapters: 2 3/4" Tall and 5 1/2" Tall.
10 anchor bolts and 10 shims.

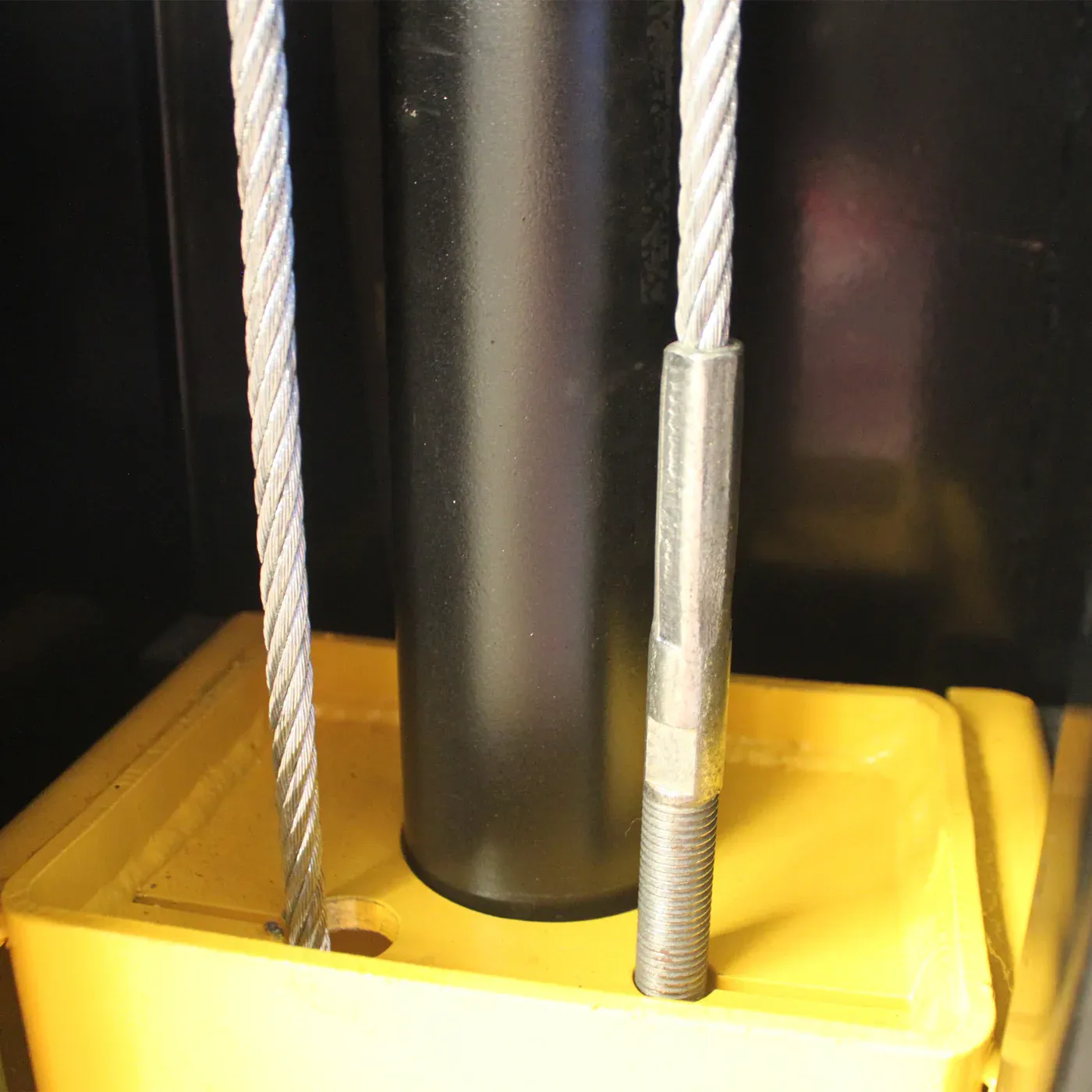

Heavy-duty 3/8" diameter cables and 3" pulleys for increased cable life.
Carriage and column materials made from high-quality Q235B steel.

Safety Features:

Double Seal Rings protecting PU material for enhanced durability.

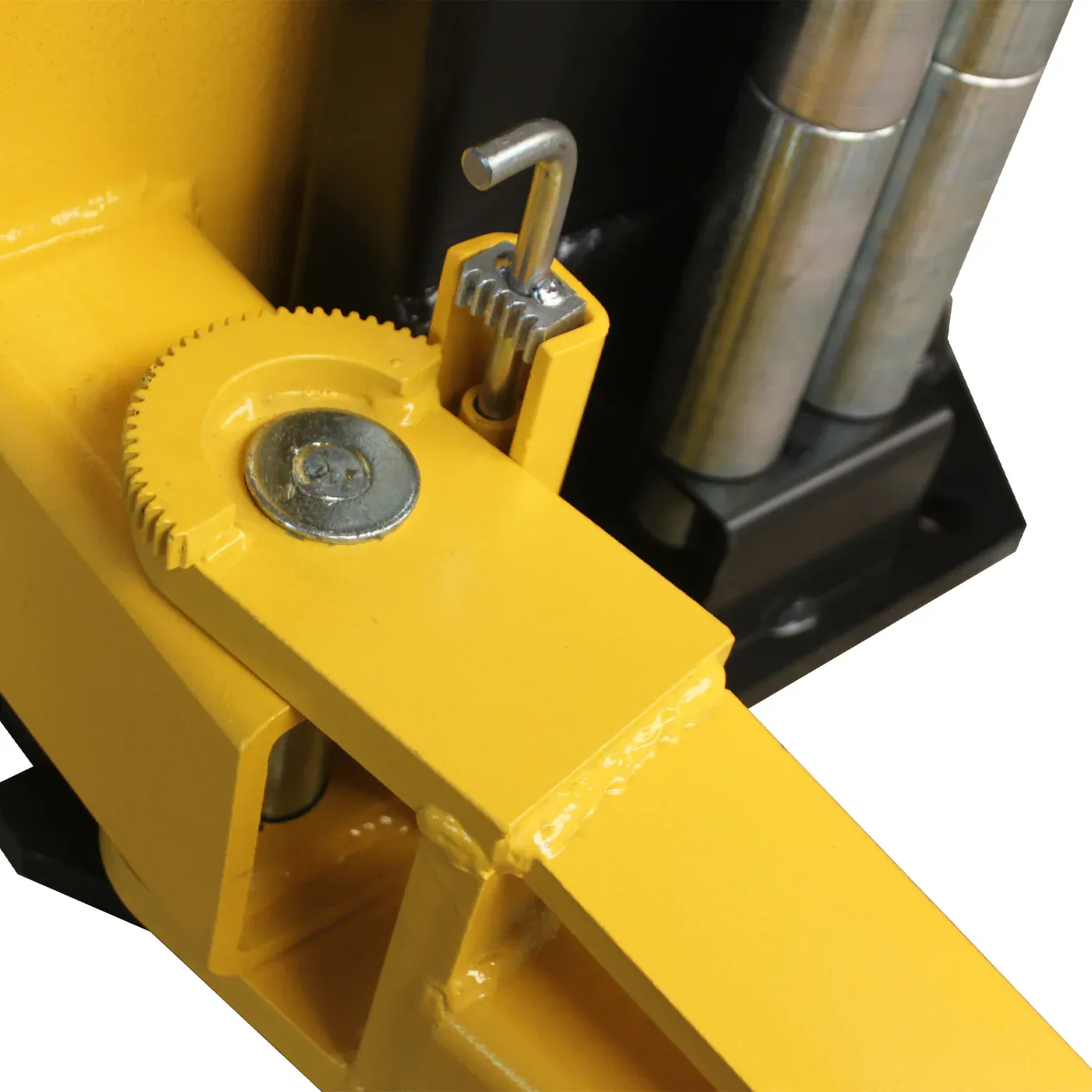

Automatic Arm Lock Restraints for secure lifting and lowering.
Relief Valve built into the power pump to prevent overloading.
Up-limit Switch to protect cylinders' working stroke and ensure safe operation.
Door Guards with protective rubber to prevent vehicle damage.

Installation and Shipping:

Enjoy free shipping to the lower 48 states with forklift or similar on-site, or opt for free pickup at a nearby terminal. Car lifts require an on-site forklift (no liftgate). We highly recommend against renting a forklift, as expenses are not reimbursed.

Concrete Floor Requirements:

The lift must be installed on reinforced concrete with a minimum 3500 PSI rating:

6" thick for lifts up to 12,000 lbs.
4" thick for lifts below 9,000 lbs.

Warranty & Support:

We provide an industry-leading 3-year warranty on all parts, a $499 value. Should you need a replacement or part, we offer complete support and replacements at competitive prices.

Visit Our Store:

Check out our store for more lifts and accessories, or visit our warehouse for direct pickup to save on shipping!
