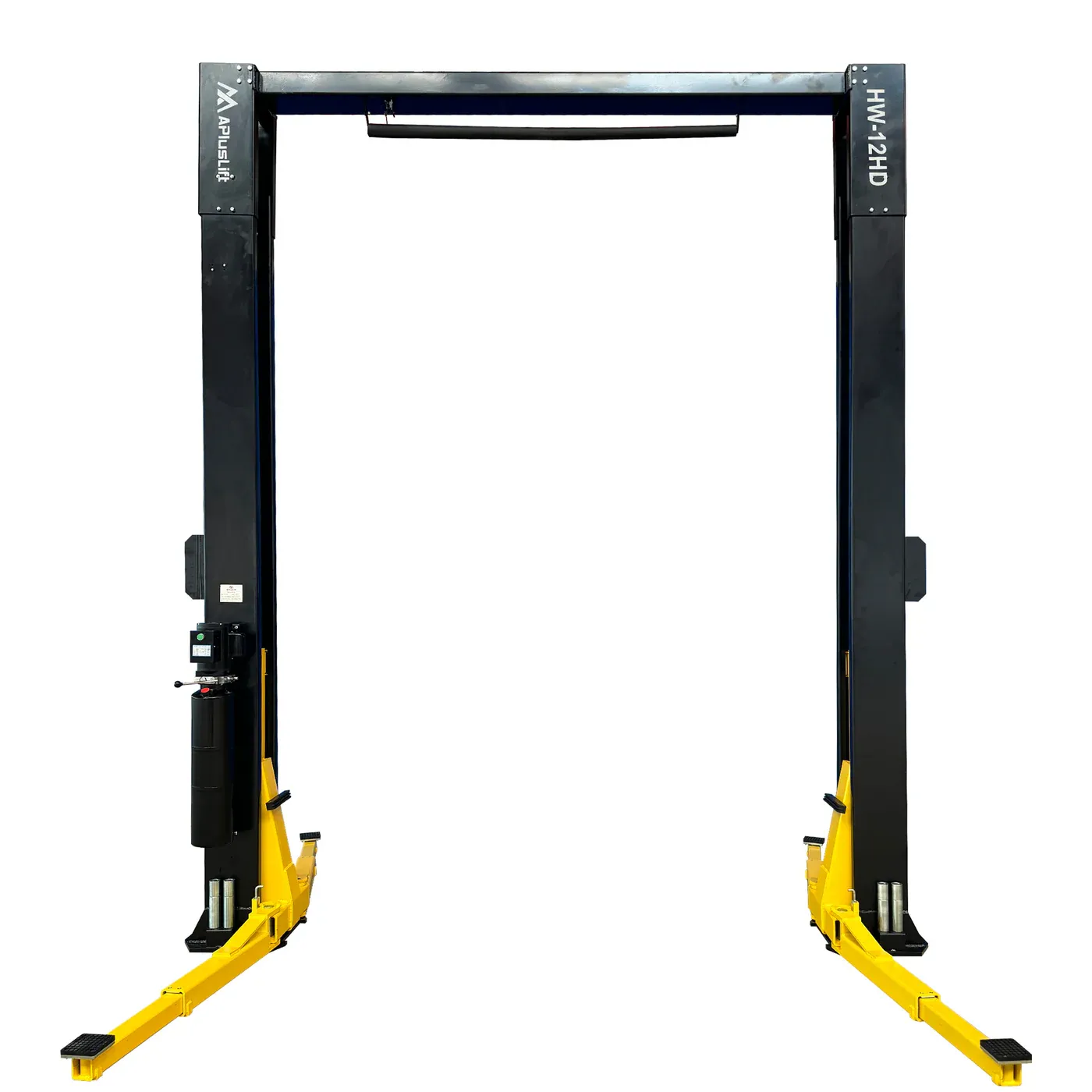

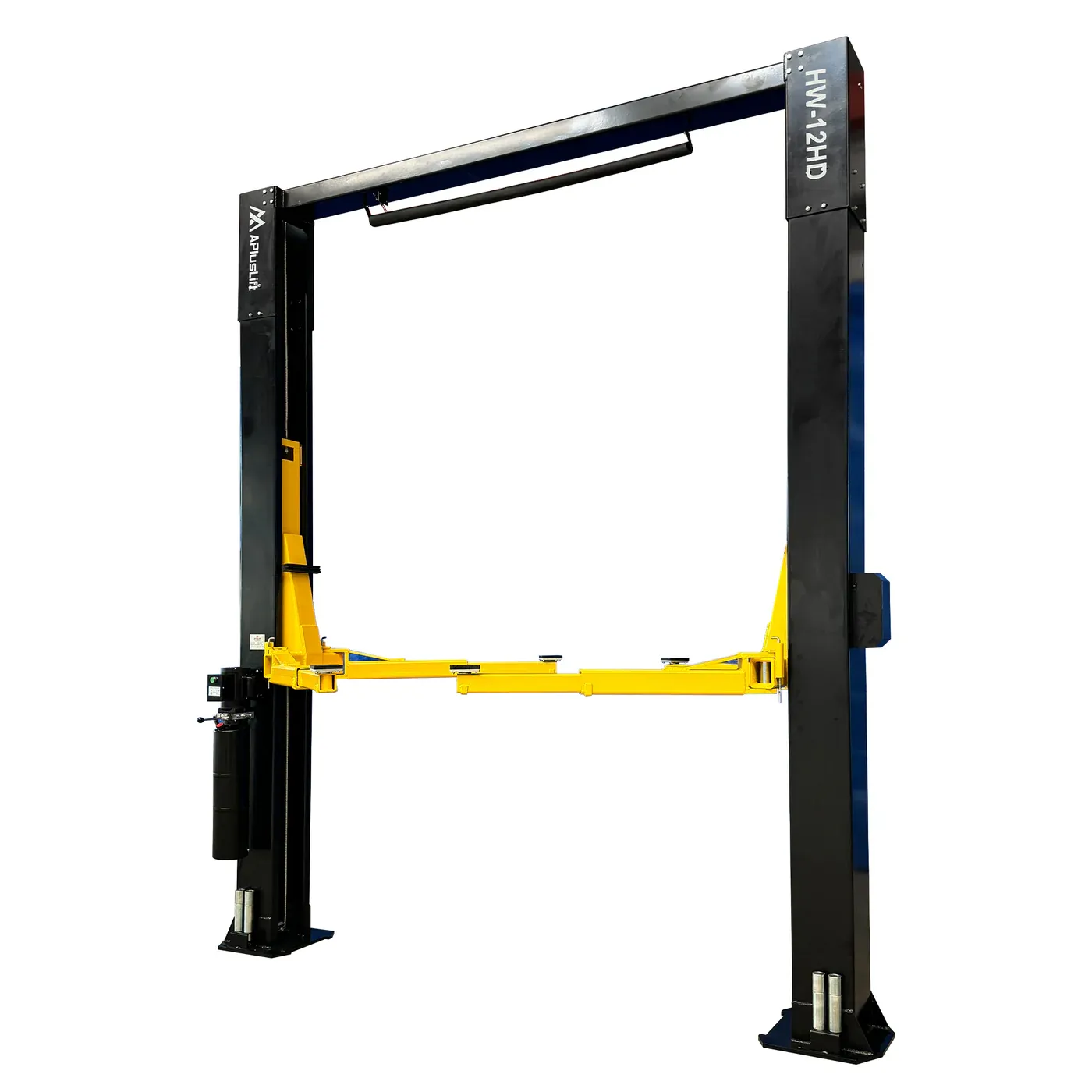

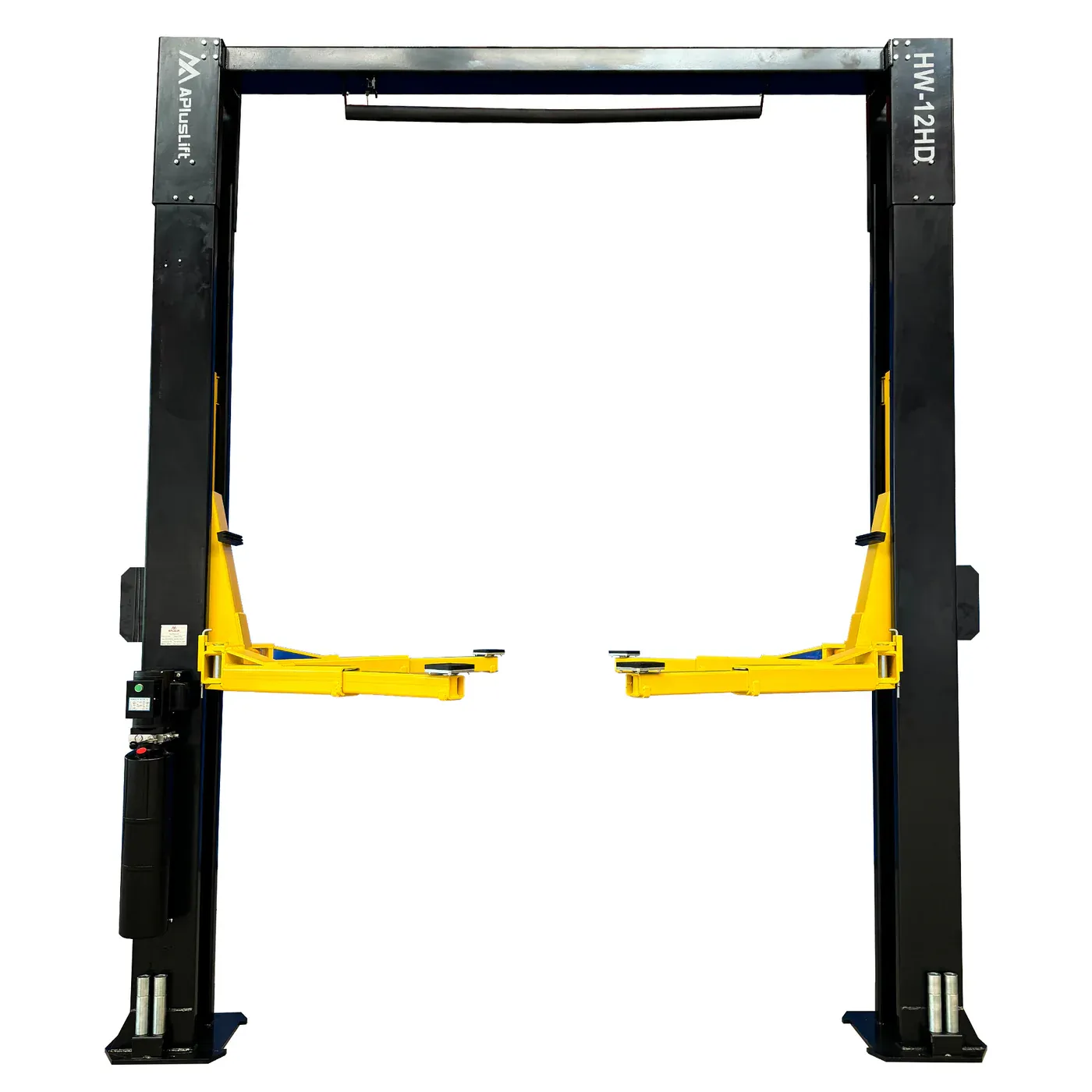

APlusLift 12,000LB 2-Post Overhead Single Release Direct Drive Car Lift with 3 Year Warranty - HW-12HD

APlusLift HW-12HD 12,000 lb Capacity Overhead Car Lift

Powerful, Reliable, and Built to Last: The APlusLift HW-12HD

The APlusLift HW-12HD is a top-tier 12,000 lb capacity overhead car lift designed for those who require high performance, durability, and ease of use. Built with quality materials and superior workmanship, this lift boasts a single point release system, a dual hydraulic cylinder direct drive mechanism, and a robust structure, making it perfect for automotive professionals. The HW-12HD comes with a 3-year warranty, offering you peace of mind and long-term value.

Key Features and Benefits:

Industry-Leading 3-Year Warranty: Backed by a $499 value warranty, covering all parts for 3 years (36 months).
Single Point Safety Lock Release System: Easy, quick, and safe operation every time.

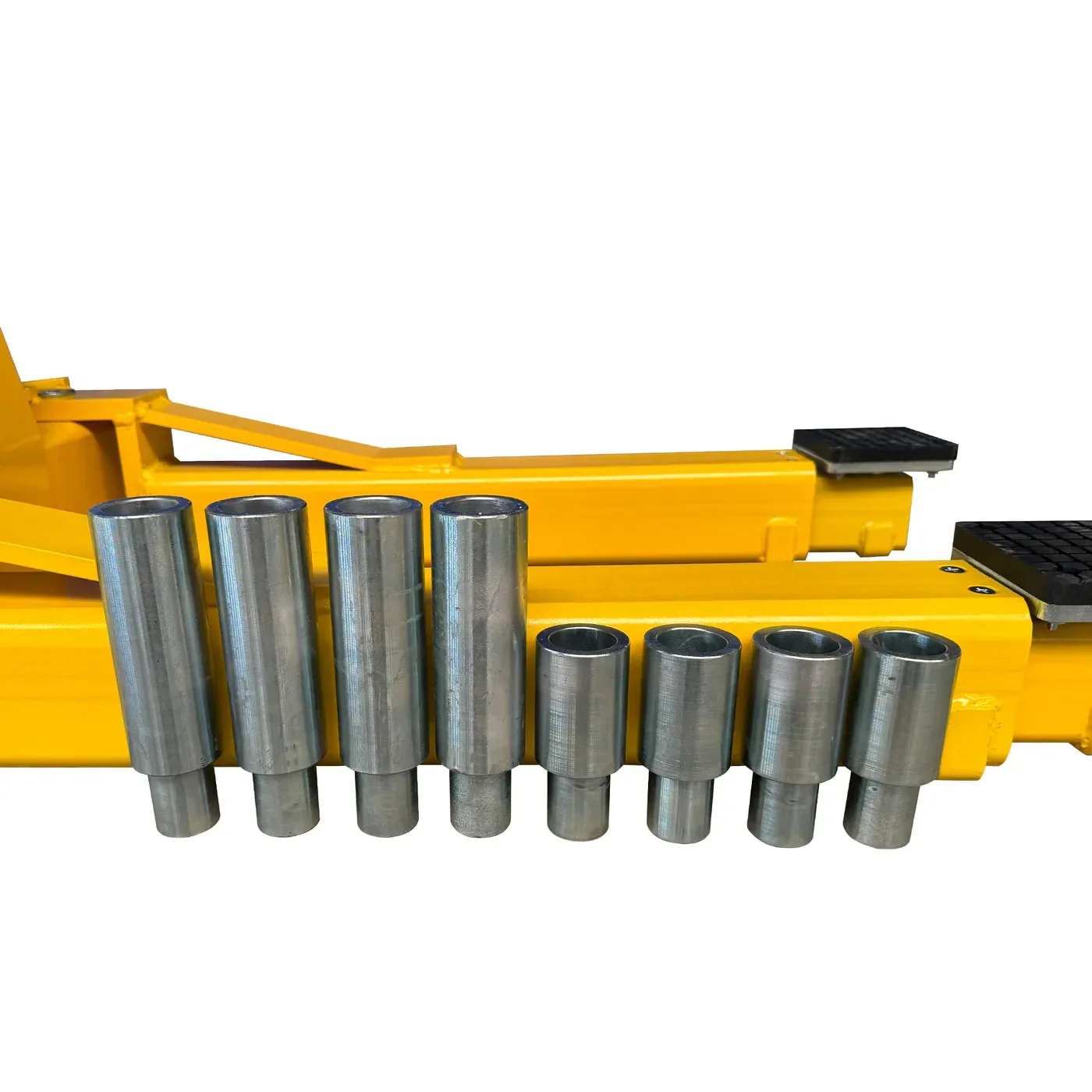

Two Sets of Truck Adapters: Includes 2 3/4" tall and 5 1/2" tall truck adapters, providing a maximum lift height of 77 15/16" with adapters.
CE Certified Lift Structure and Hydraulic System: Ensures the lift has been rigorously tested for dynamic and static load capacities (115% and 150%, respectively).
Durable Robot-Welded Structure: Featuring a powder-coated finish for long-lasting corrosion resistance and rugged durability.

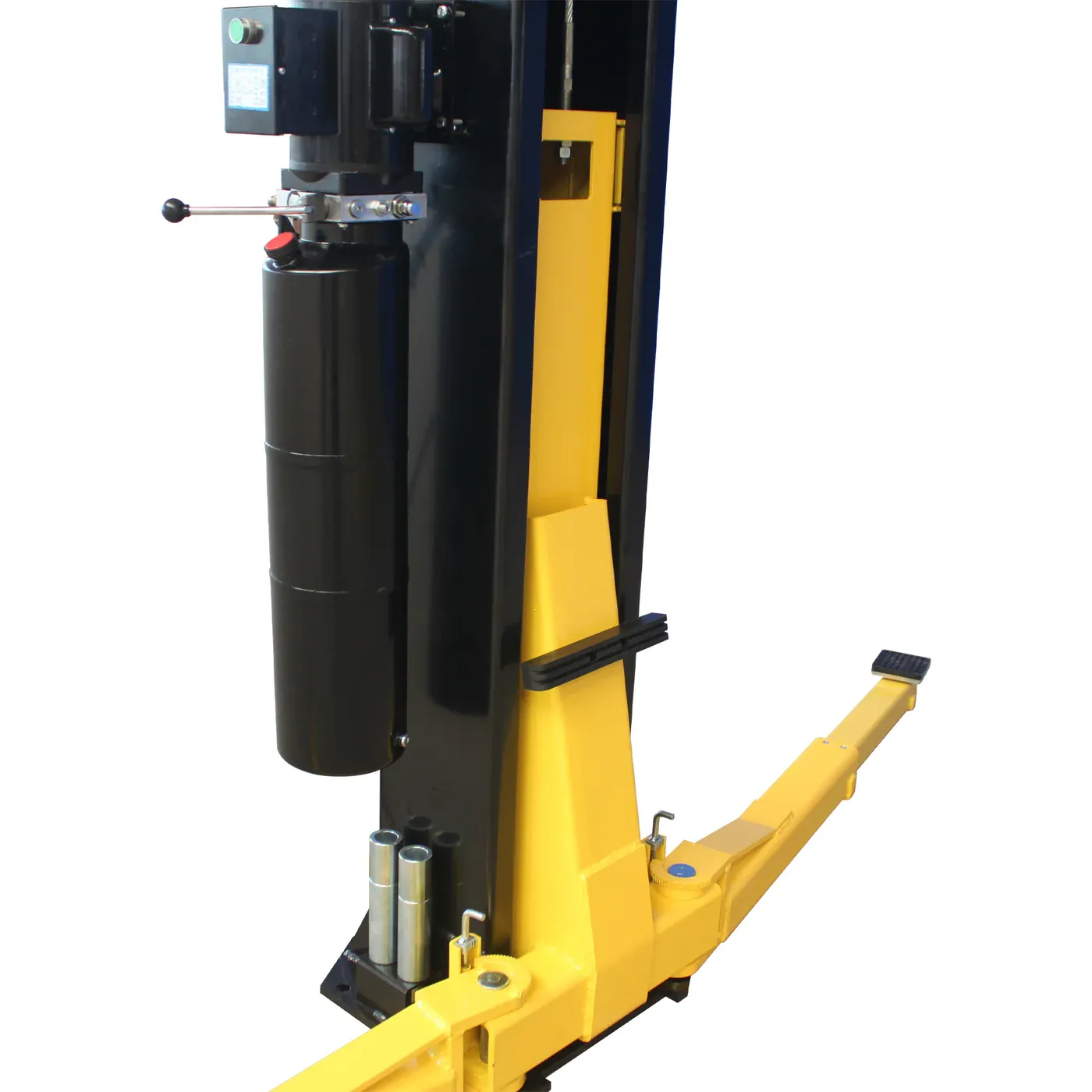

Direct Drive Hydraulic System: Dual hydraulic cylinders ensure smooth and reliable operation with a full rise time of 75 seconds.
Affordable and Reliable: Built for long-term reliability and minimal maintenance needs.

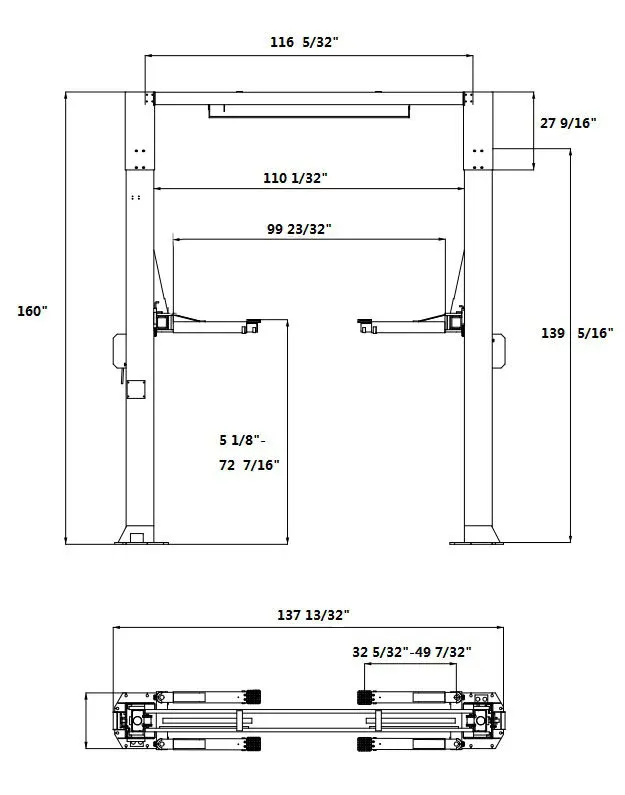

Specifications:

Model: HW-12HD
Lifting Capacity: 12,000 lbs
Overall Height: 160"
Maximum Lift Height with Truck Adapters: 77 15/16"
Maximum Lift Height without Truck Adapters: 72 7/16"
Minimum Height of Adjustable Pads: 5 1/8"
Drive-Through Width: 99 23/32"
Column to Column Width: 110 1/32"
Column Cross Section: 12 7/32"L x 9 27/32"W
Motor: 220V Single Phase 3HP (30A breaker recommended)
Hydraulic Oil: 3.2-5 gallons AW32/AW46 (Not included)
Time to Full Rise: 75 seconds
Shipping Weight: 2100 lbs
Shipping Package Size: 146"L x 33"W x 21"H
Concrete Requirement: 6" thick at 3500 psi reinforced with fiberglass or steel (4" thick for vehicles 9,000 lbs and below)

Parts Included:

10 anchor bolts
10 shims

Optional Parts:

2 3/4" and 6" Tall Truck Adapters

Arm Assembly:

Symmetrical Arm Assembly
Front Arms: 2-stage reach from 32 5/32" to 49 7/32"
Back Arms: 2-stage reach from 32 5/32" to 49 7/32"

Features:

Direct Drive Mode for smooth and reliable operation
Durable hydraulic system for long-lasting performance
Easy to operate with single point safety lock release
Double seal rings protect PU materials for better durability
Carriage and column made from strong Q235B steel
Lifting operation via pressing the "UP" button on the motor
Manual lowering with a simple lever press
Relief valve built into the power pump to prevent overloading

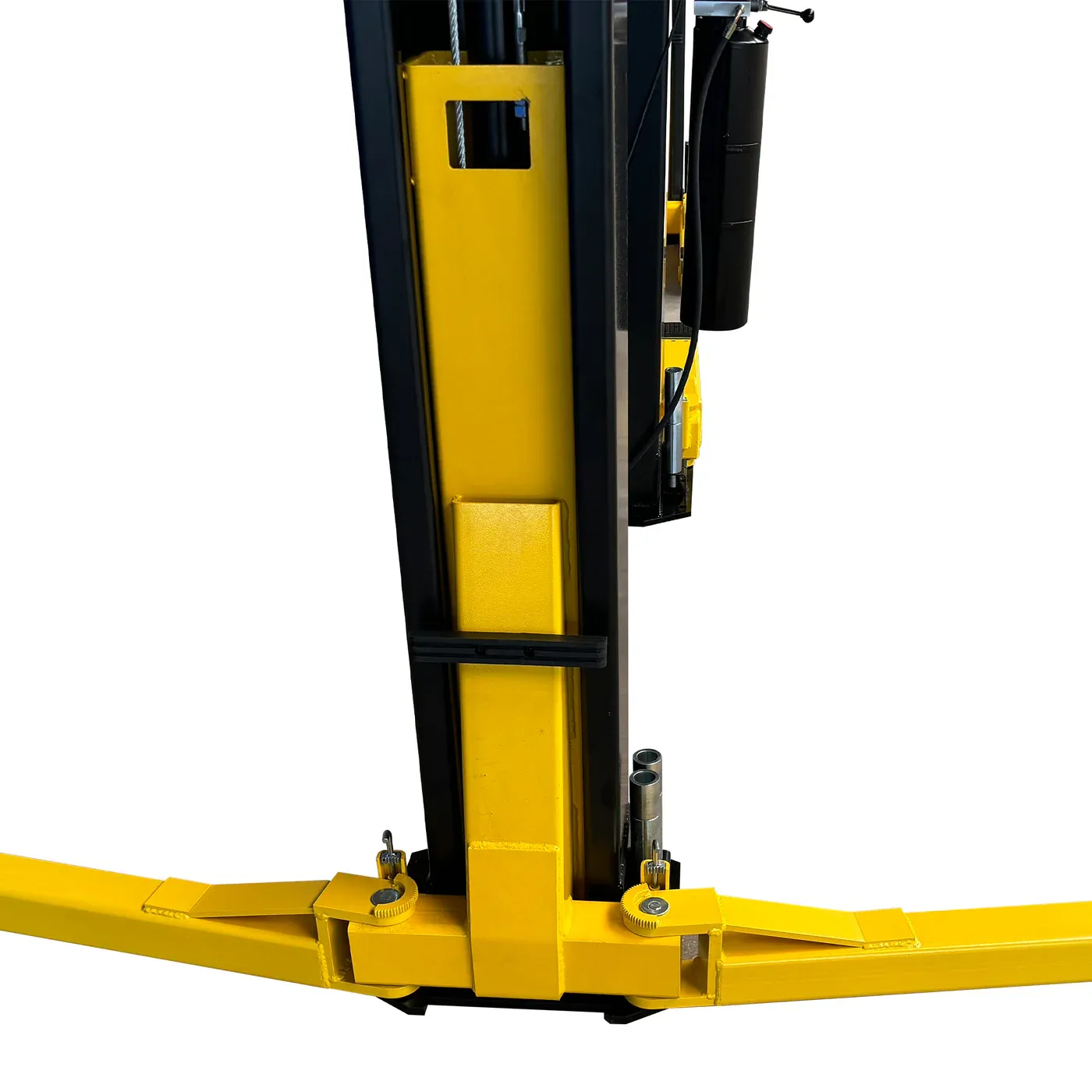

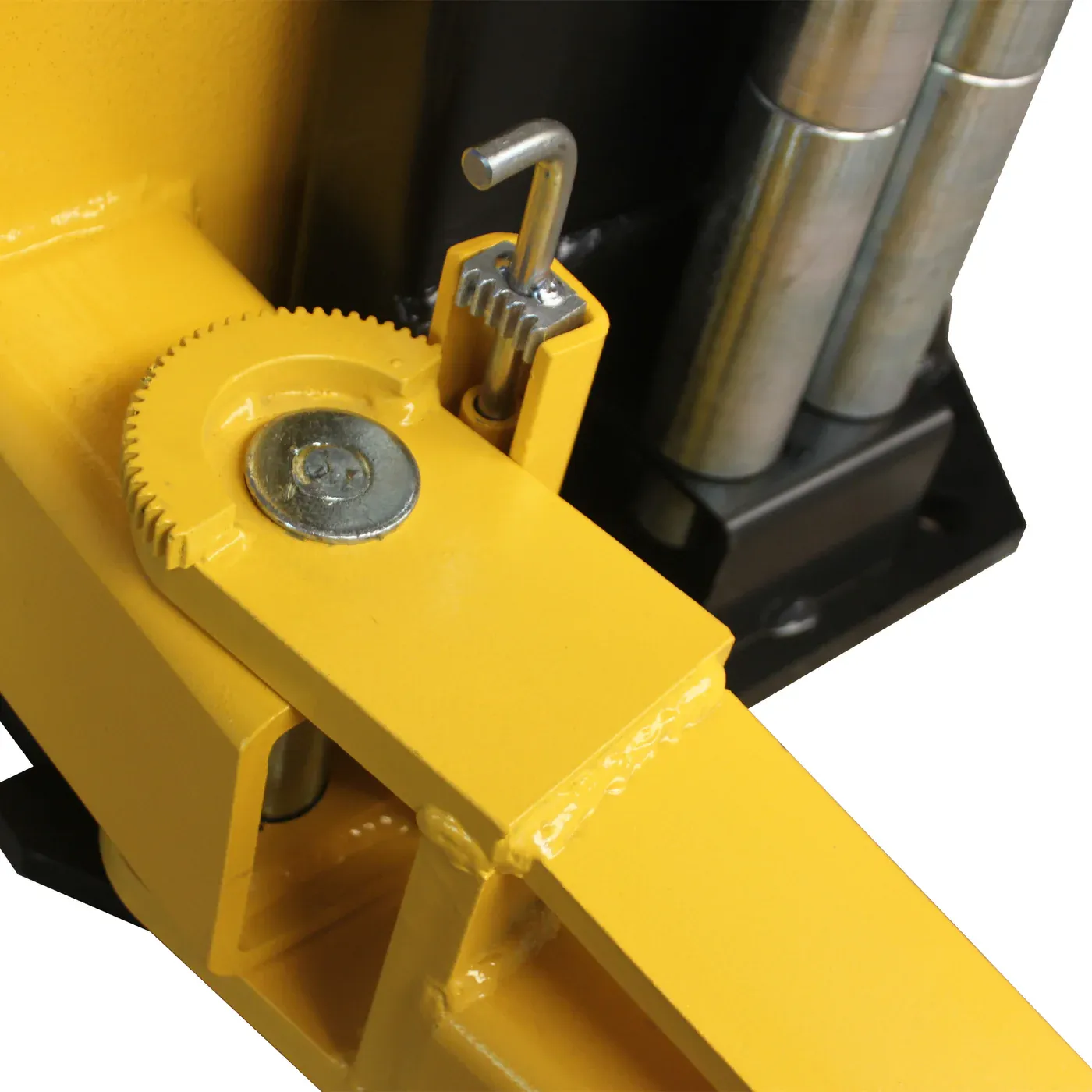

Automatic arm lock restraints for enhanced safety

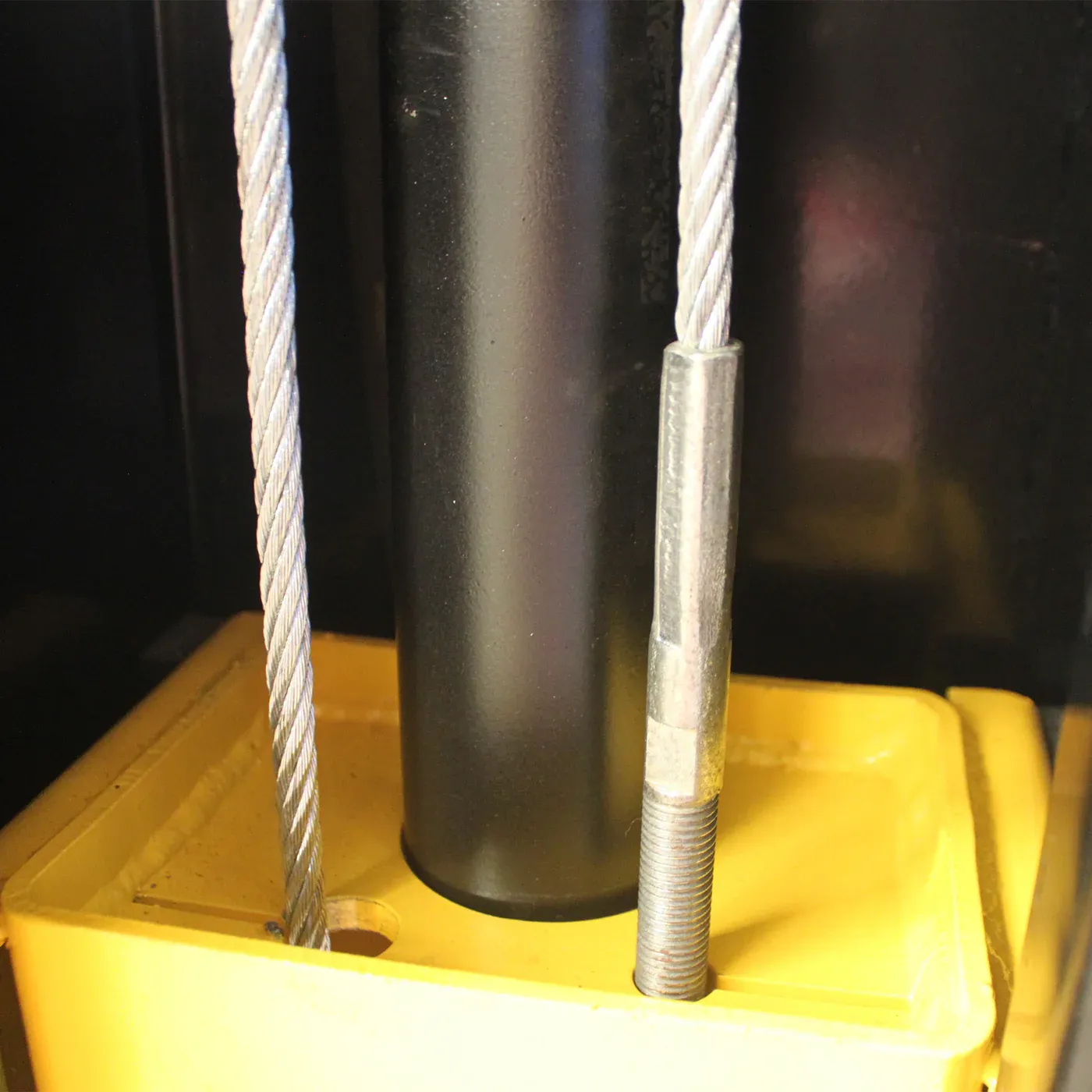

Heavy-duty 3/8" diameter cable and 3" pulley system to reduce synchronization stress and extend cable life
Ultra-high molecular self-lubricating nylon slider ensures smooth lifting

Shipping and Installation:

Free shipping to the lower 48 states with forklift (or similar) on-site (no liftgate required). Alternatively, free pickup is available at a nearby terminal. Note: Car lifts require on-site forklift assistance for unloading. Renting a forklift is not recommended, as the expense is not reimbursed.
