APlusLift 14,000LB 2-Post Overhead Single Release Direct Drive Car Lift with 3 Year Warranty - AP-14SR
$ 2,192.49
$ 4,995

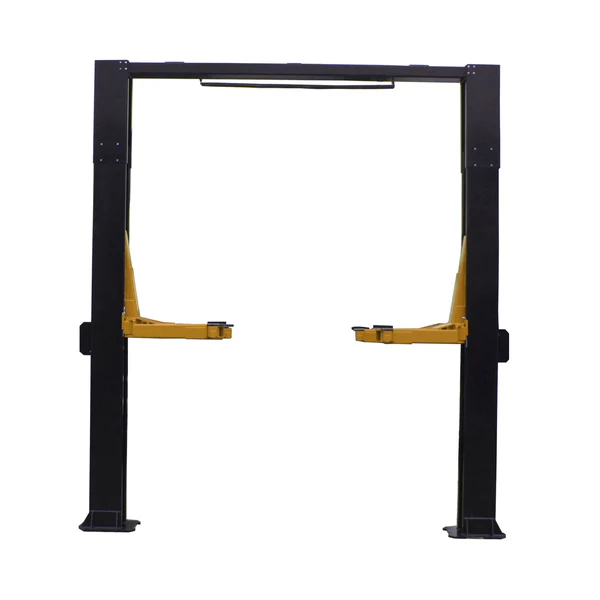

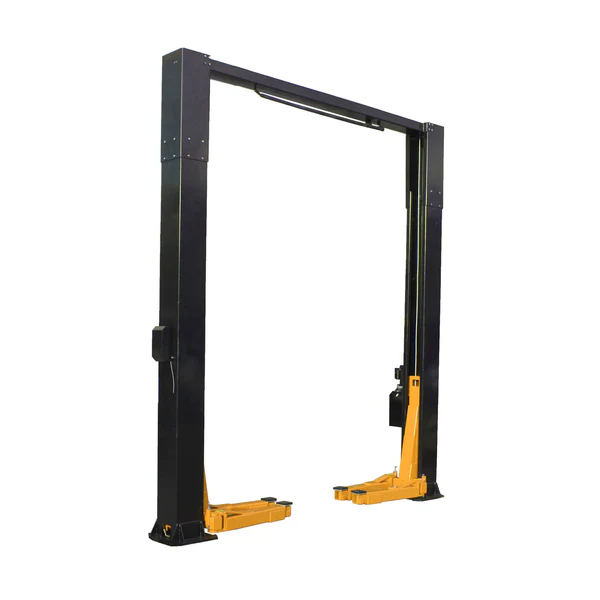

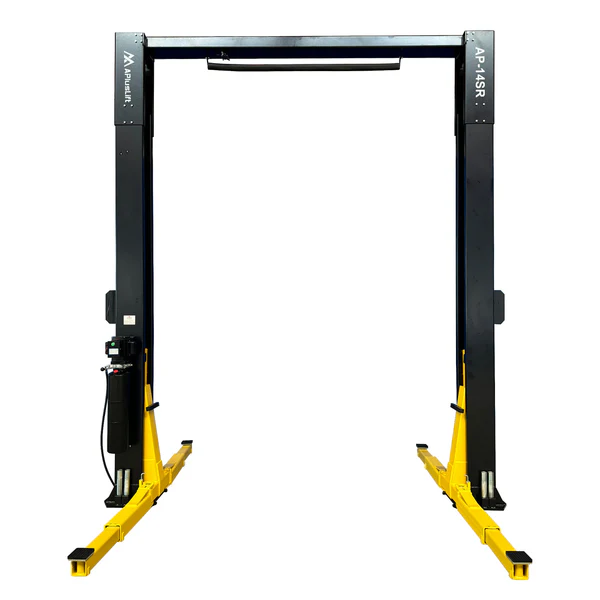

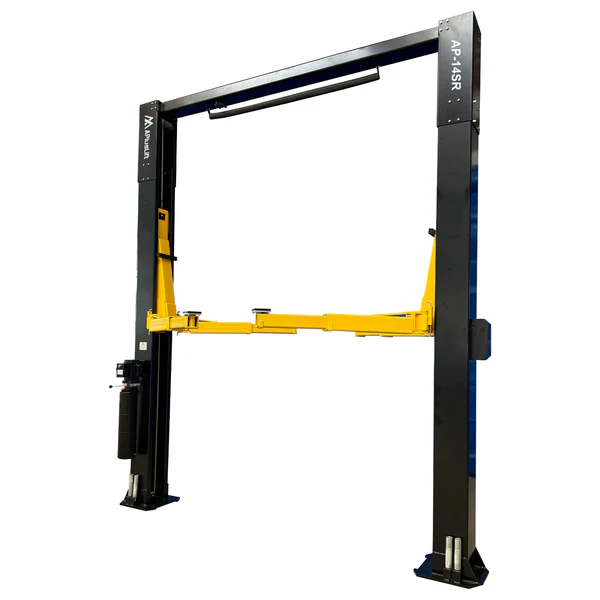

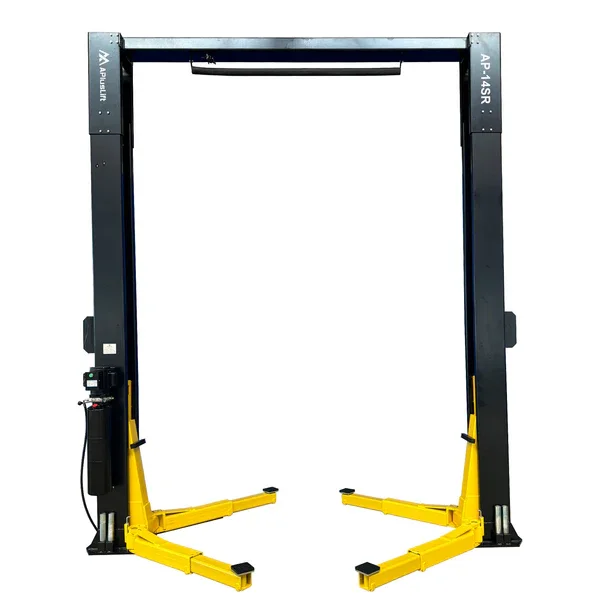

APlusLift AP-14SR 14,000LB Overhead 2-Post Car Lift
Industry-Leading Warranty: 3 YEARS (36 Months) – a $499 value!
Includes: Two sets of truck adapters (2 3/4" and 5 1/2" tall)
Max Lift Height: 6'7" with truck adapters
Safety: Single Point Safety Lock Release System
Certifications: CE Certified Lift Structure and Hydraulic System – tested for 115% dynamic load and 150% static load capacity
Build Quality: All robot-welded structure with durable powder-coated finish
Overview
The APlusLift AP-14SR is a professional-grade, 14,000LB capacity, overhead 2-post car lift (auto hoist). Built with quality materials, direct drive hydraulic cylinders, and robust safety mechanisms, it's perfect for heavy-duty lifting. All parts are backed by a 3-year warranty and are readily available.
Shipping Info
Free shipping to the lower 48 states (forklift or similar required on-site), or free pickup at a nearby terminal. Car lifts require a forklift on-site—no liftgate service. We do not reimburse forklift rentals. Please review our shipping policy for limited access or remote area charges.
Specifications
- Model: AP-14SR
- Style: Overhead
- Lock Release: Single Point
- Lifting Capacity: 14,000 LB
- Overall Height: 165 11/32"
- Overall Width: 142 1/8"
- Max Lift Height (with Truck Adapters): 79 19/32"
- Max Lift Height (without Truck Adapters): 74 3/32"
- Min Height of Pads: 6 11/16"
- Drive Through Width: 104 1/8"
- Column to Column Width: 114 11/16"
- Column Cross Section: 12 7/32" L x 9 27/32" W
- Driving Mode: Dual hydraulic cylinders, direct drive
- Motor: 220V Single Phase 3HP (30A breaker recommended)
- Hydraulic Oil: 3.2-5 gallons AW32/AW46 (not included)
- Time to Full Rise: 75 seconds
- Shipping Weight: 2300 LB
- Shipping Package Size: 150" L x 33" W x 21" H

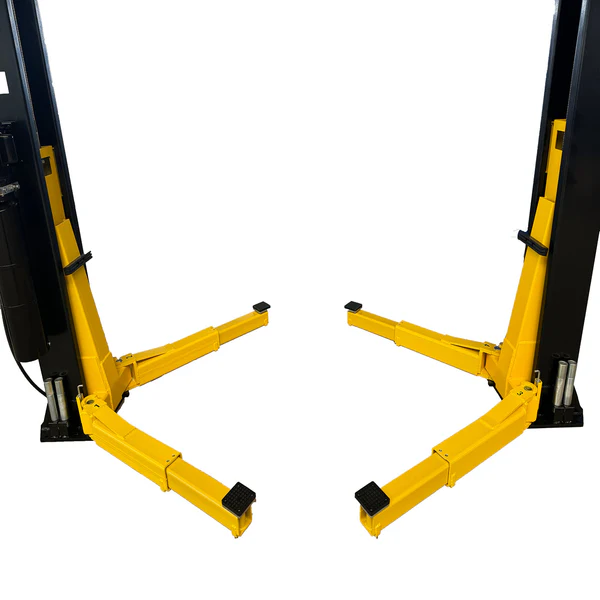

- Arm Assembly: Symmetrical (2-stage front and rear arms)
- Steel Thickness: Columns & Carriage: 1/4", Carriage Yoke: 13/32", Arms: 5/16", Base Plate: 5/8"
- Truck Adapters Included: 4 pcs (2 3/4" tall), 4 pcs (5 1/2" tall)
- Other Parts Included: 10 anchor bolts, 10 shims
- Optional Parts: 2 3/4" and 6" tall truck adapters
- Concrete Requirement: 6" thick at 3500 psi with reinforcement (4" for vehicles 9000LB and below)
Key Features
- Direct drive system with dual hydraulic cylinders

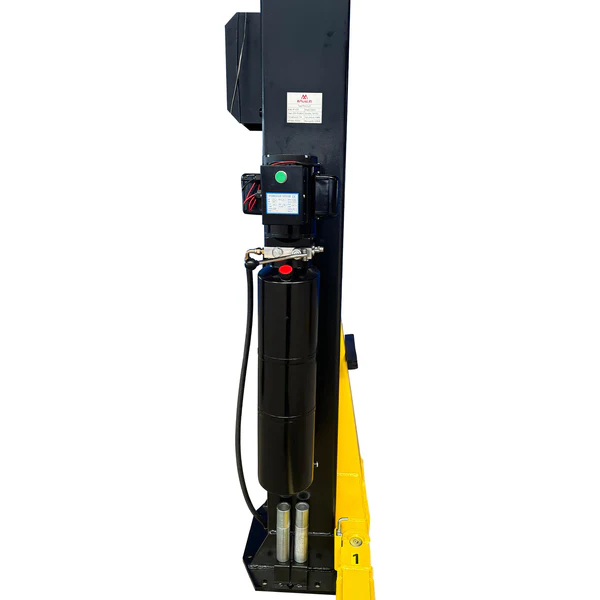

- Durable hydraulic components and power unit
- Single-point safety lock release
- Double seal rings protect PU material for long service life
- Q235B steel used for column and carriage
- Simple UP button for lift, manual lowering lever
- Built-in relief valve to prevent overloading
- Automatic arm lock restraints
- Door guards with protective rubber
- Up-limit switch protects cylinder stroke
- Heavy-duty 3/8" cable and 3" pulley system for stress reduction
- Self-lubricating nylon sliders for smooth carriage movement
