APlusLift Falcon MCL-180 Mobile Column Lift – 18,000 LB Capacity per Column, CE Certified, 3-Year Warranty

Professional-Grade Mobile Column Lifting System for Heavy-Duty Performance and Safety

Product Overview

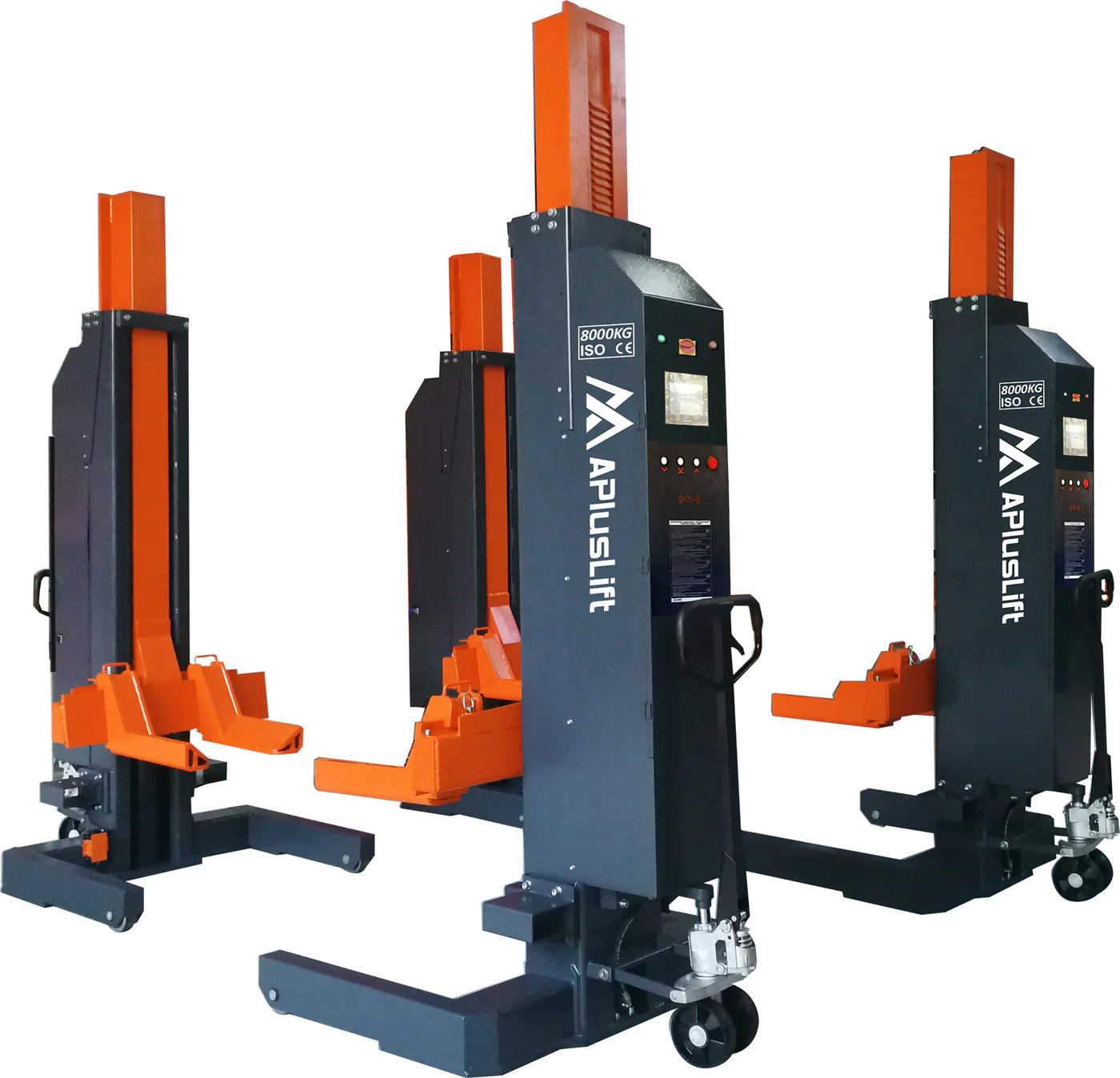

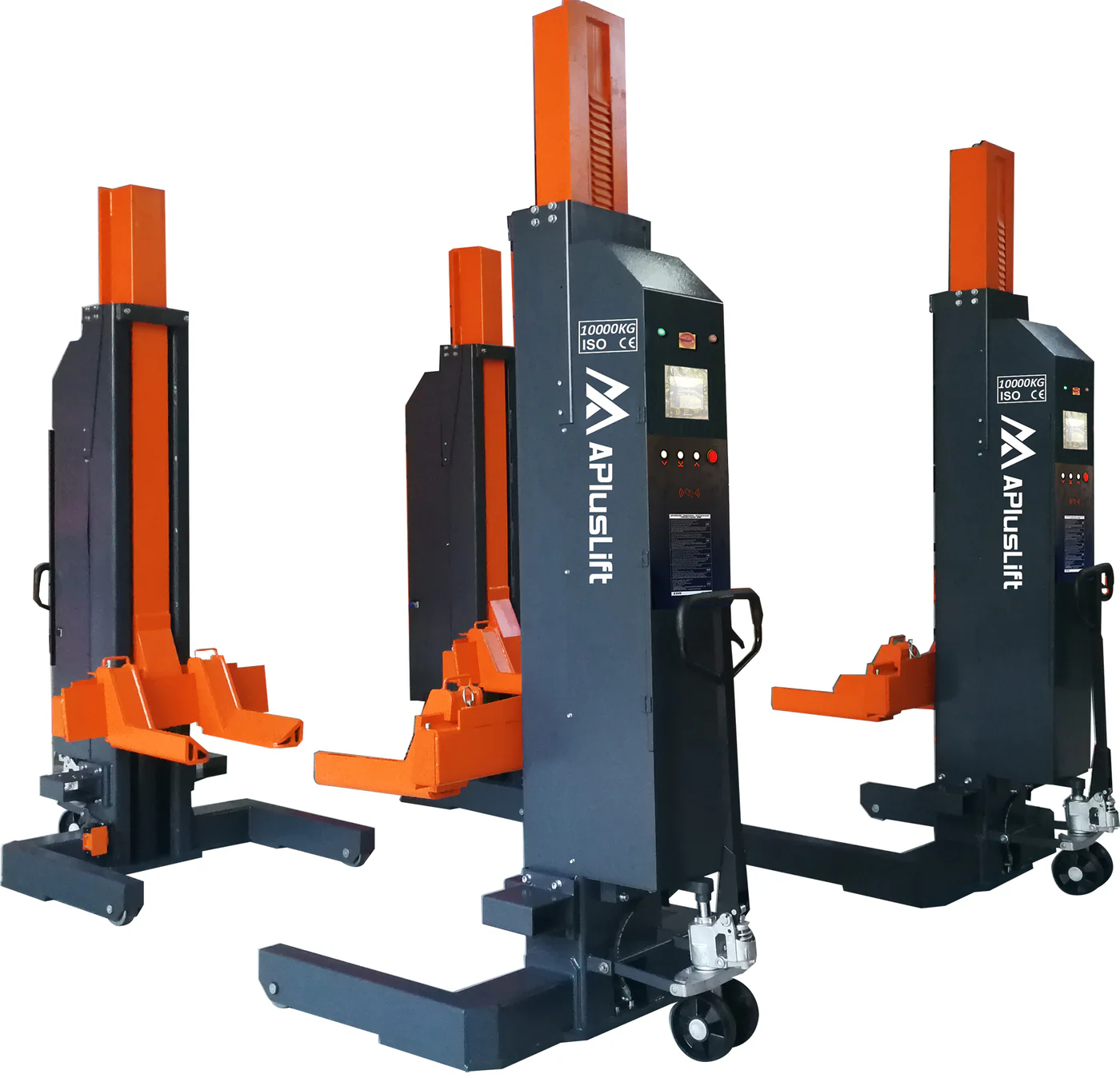

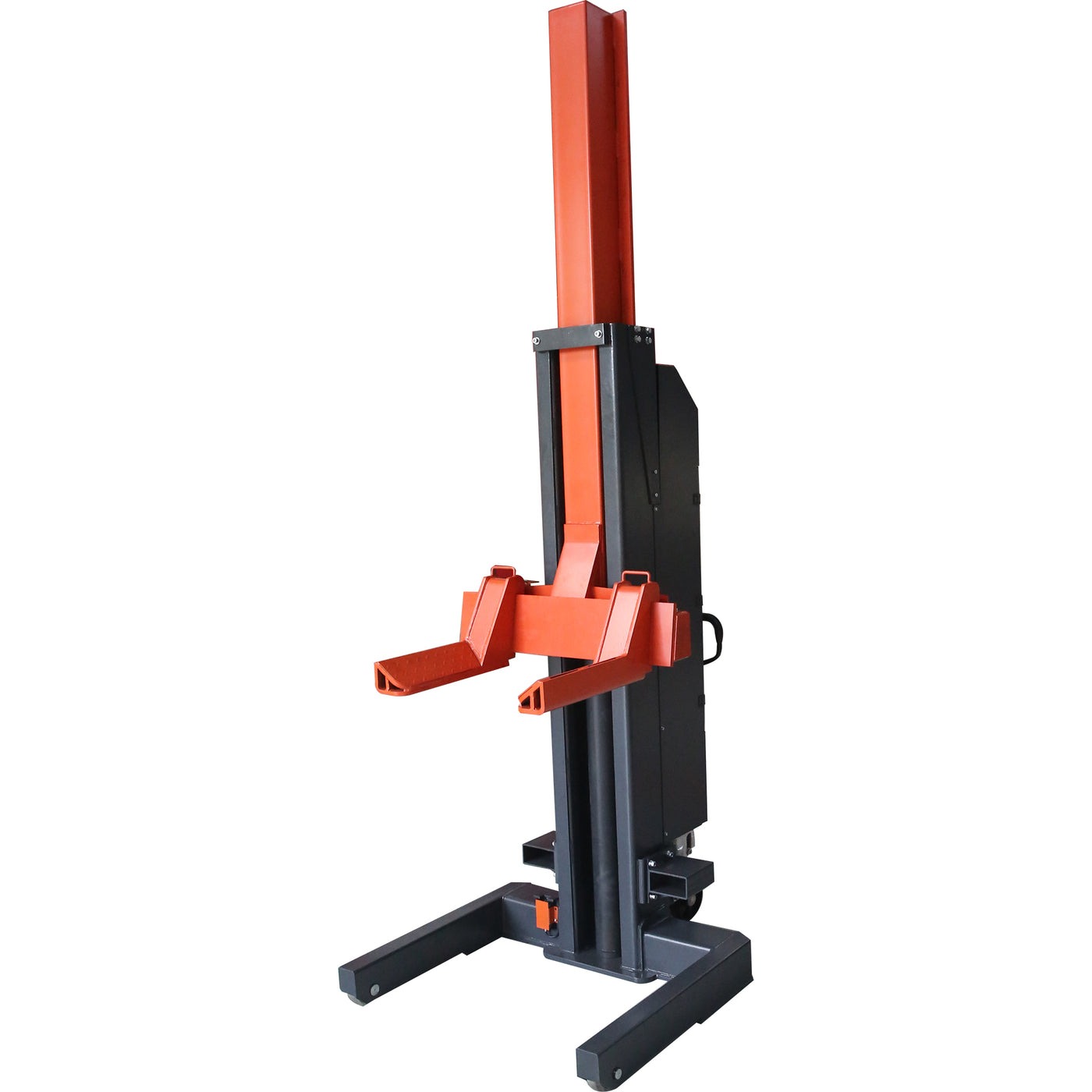

The APlusLift Falcon MCL-180 Mobile Column Lift is a high-performance, mobile lifting system designed to handle vehicles with a lifting capacity of up to 18,000 LB per column. This lift system is perfect for heavy-duty automotive workshops, commercial service stations, or any facility requiring flexible, reliable lifting power. Built with quality materials and tested for maximum safety, the Falcon MCL-180 is CE Certified and features advanced hydraulic and mechanical locking systems to ensure double safety during operation.

Whether lifting a large truck or other heavy vehicles, the Falcon MCL-180 provides powerful lifting and quick, safe descent. The system uses wireless communication between columns and is synchronized with microchip technology, making it highly versatile and easy to use. Additionally, it includes a move kit, wheels, and rubber pads for easy mobility, making it ideal for various types of vehicle lifting operations.

Key Features

18,000 LB Lifting Capacity per Column – Handles a wide range of heavy vehicles
Double Safety Locking Systems – Combines hydraulic and mechanical locks for enhanced security
Wireless Communication – Efficient operation with real-time data and control
Synchronization via Microchip Technology – Ensures smooth, synchronized lifting across columns
Touchscreen Control Panel – Provides user-friendly interface for easy operation
Real-Time Lifting Height Display – For accurate control of lifting movements
Battery Powered – Each column has a DC24V 3HP motor and includes a 2x12V 100Ah battery with a charger

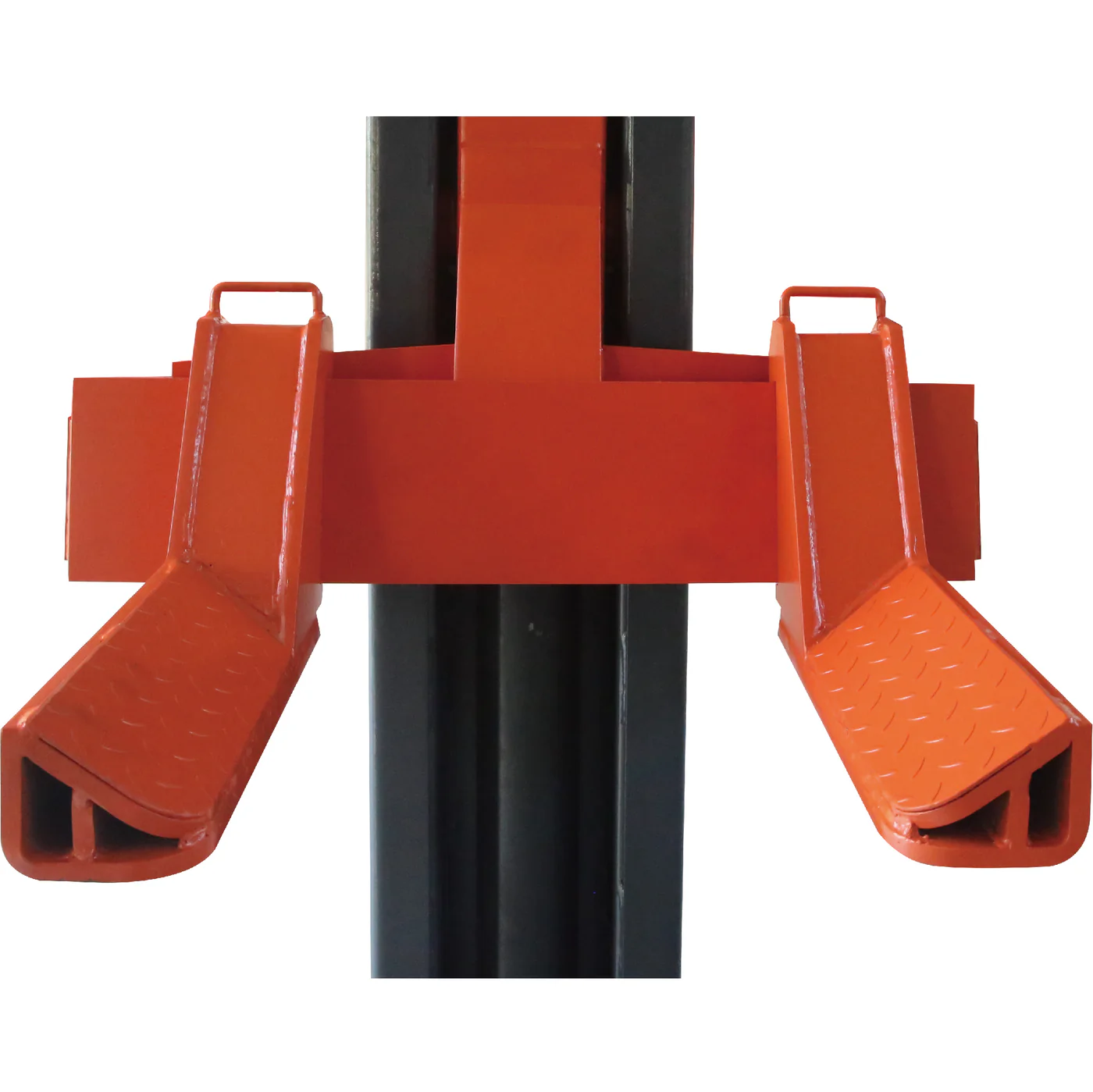

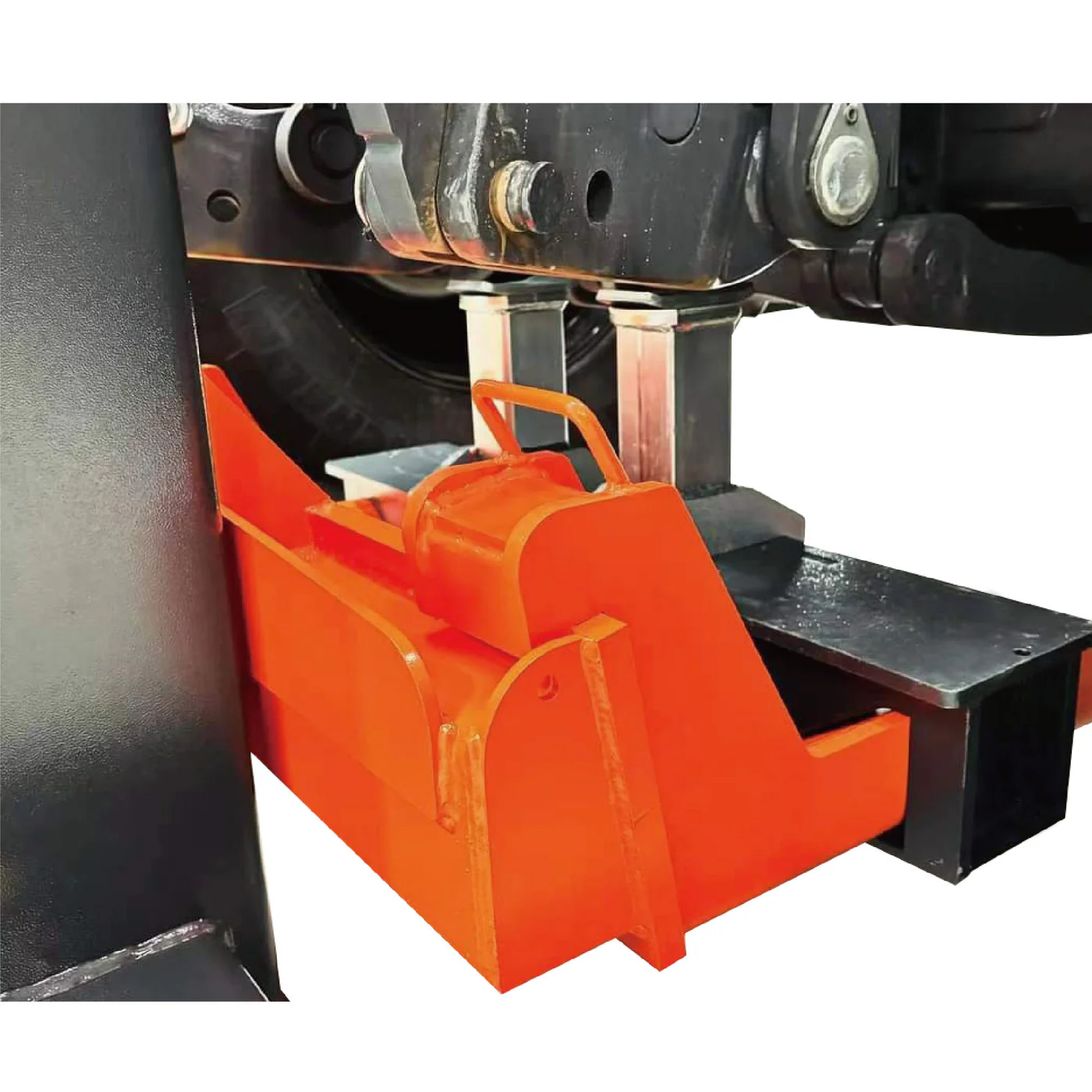

Adjustable Wheel Pick-Up Fork – Fits tire diameters from 23 5/8" to 49 7/32"
Emergency Stop Button – Safety feature on each column for instant stopping
Audible Warning – Alerts operator when the lift reaches the final lowering position
Portable and Easy to Move – Includes a move kit, wheels, and rubber pads for easy mobility

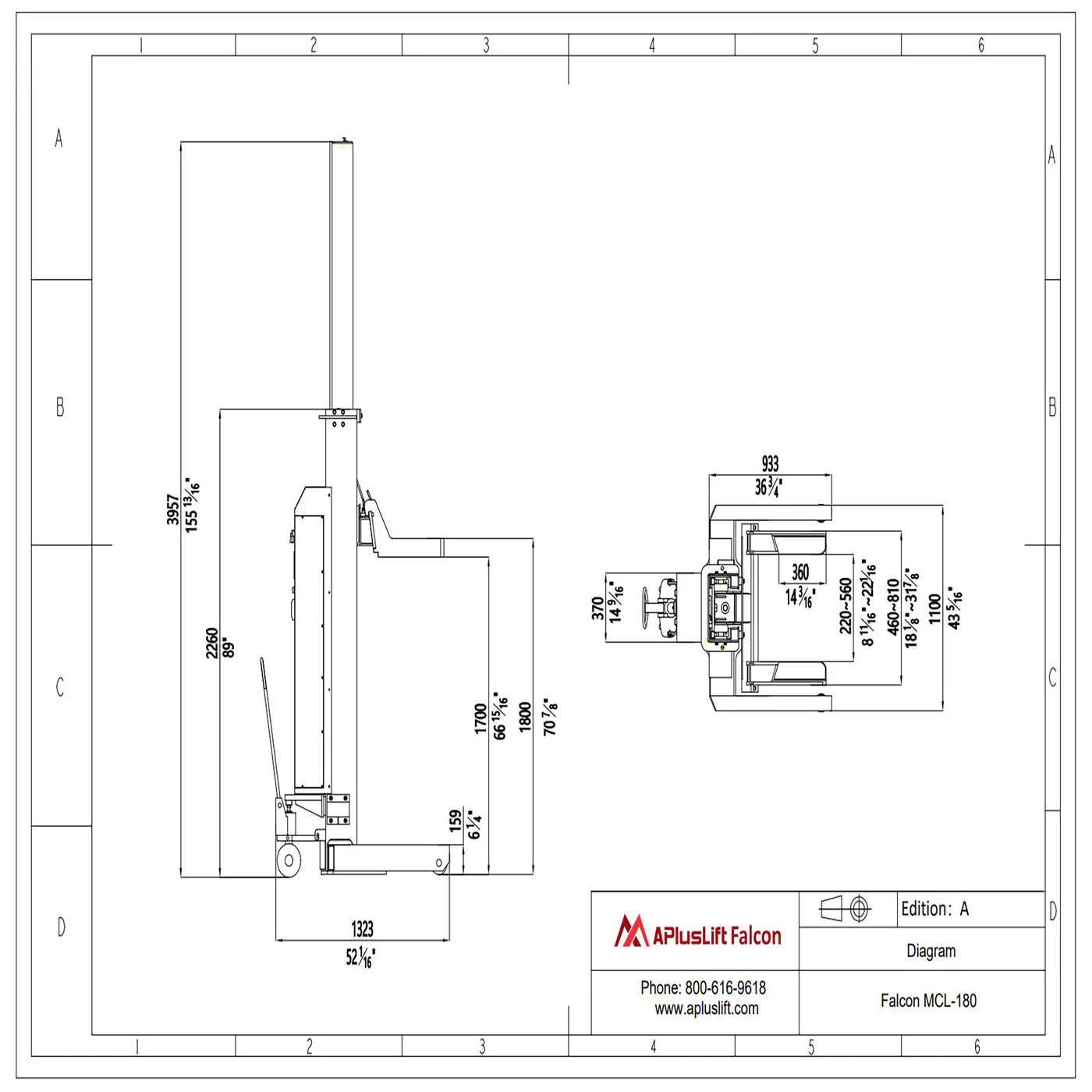

Specifications

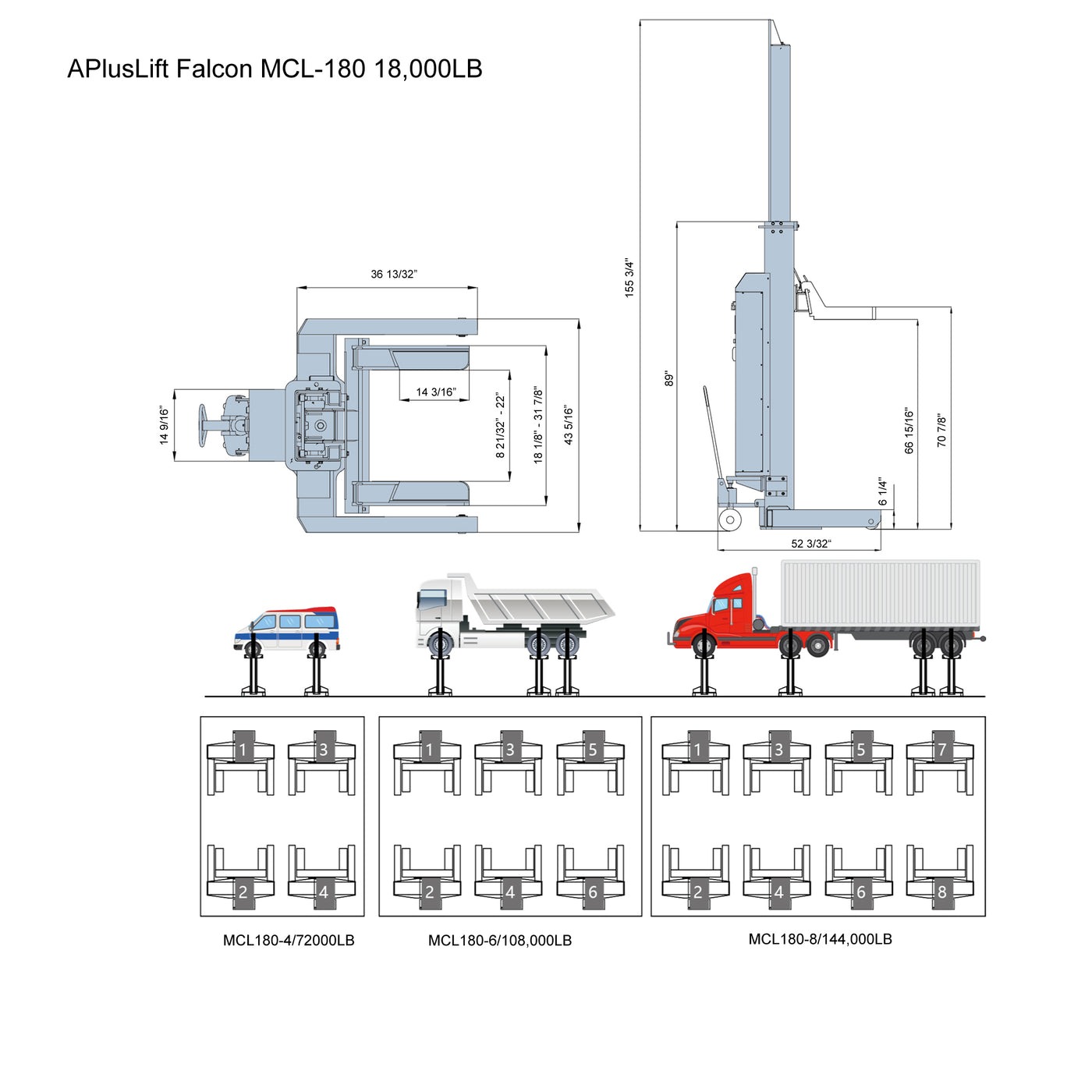

Model: MCL-180
Lifting Capacity: 18,000 LB per column
Column Steel Thickness: 1/4"
Carriage Steel Thickness: 5/16"
Overall Height: 155 3/4"
Maximum Lift Height: 70 7/8"
Minimum Height of Adjustable Pads: 6 1/4"
Effective Wireless Communication Distance: 39 3/8"
Maximum Pressure at Rated Load: 14.5MPa
Unlocking System: Electrical release
Hydraulic Fluid: 3-5 gallons AW32/AW46 (Not Included)
Motor Voltage: DC24V 3HP per column
Battery: 2x12V 100Ah
Charger: AC100-120V /200-240V
Operating Voltage: DC24V
Lifting Time: 85 seconds
Descent Time: 75 seconds
Operating Temperature: 0-60℃
Concrete Requirement: 8" thick at 4000 psi reinforced with fiberglass or steel
Shipping Weight: 1,870 lbs per column
Shipping Package Size: 89" L x 46" W x 54" H per column

What's Included

1 Falcon MCL-180 Mobile Column Lift per column
Move Kit (wheels and rubber pads for easy movement)
Charger for each column
Hydraulic fluid specifications
Installation Manual

Warranty & Shipping

3-Year (36-Month) Warranty – Industry-leading warranty ensures long-term reliability and peace of mind.

Free Shipping to the lower 48 U.S. states. Delivery requires on-site forklift or similar equipment (no liftgate service). For remote or limited access areas, please check the shipping policy for additional details.

Ideal For

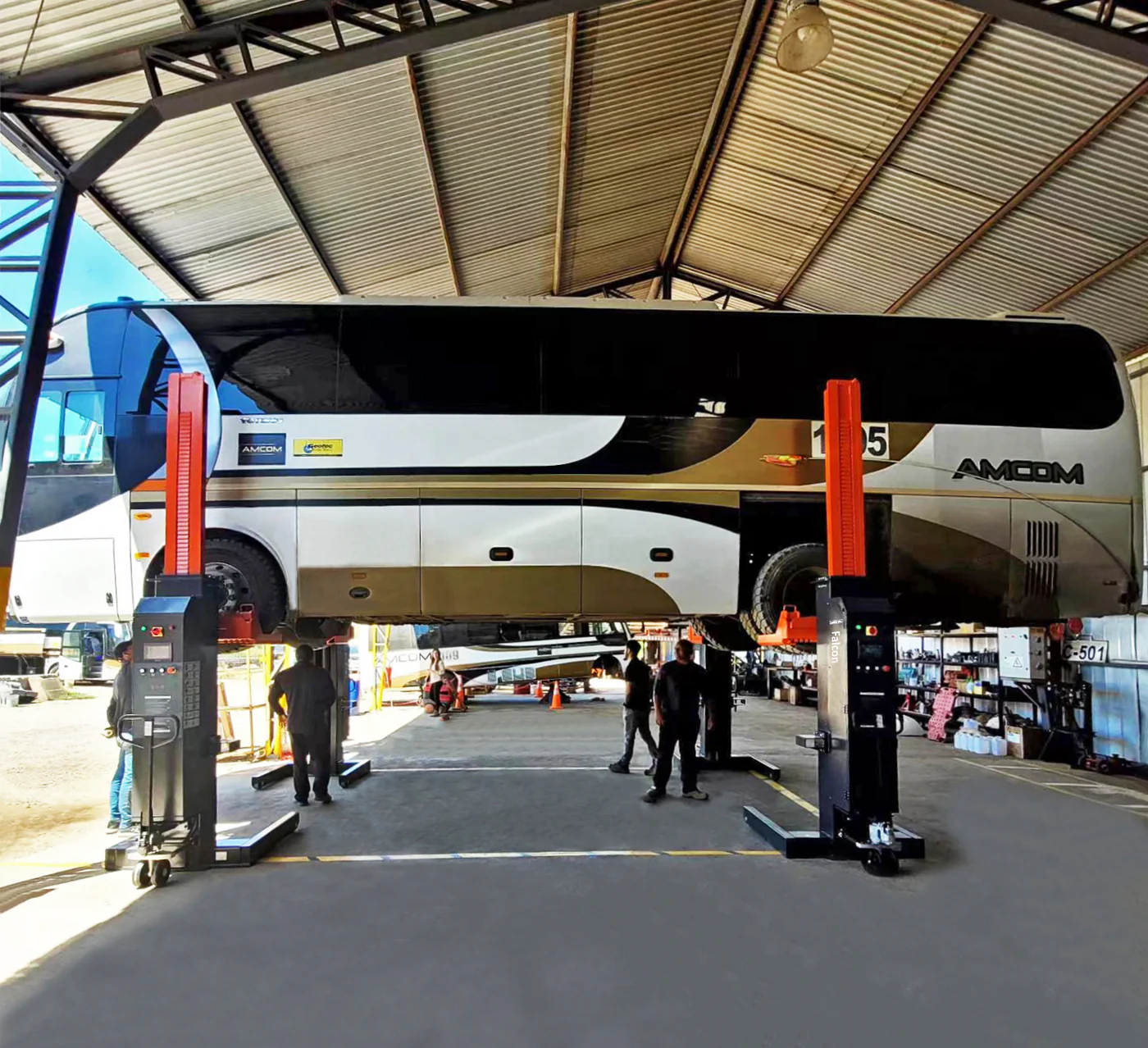

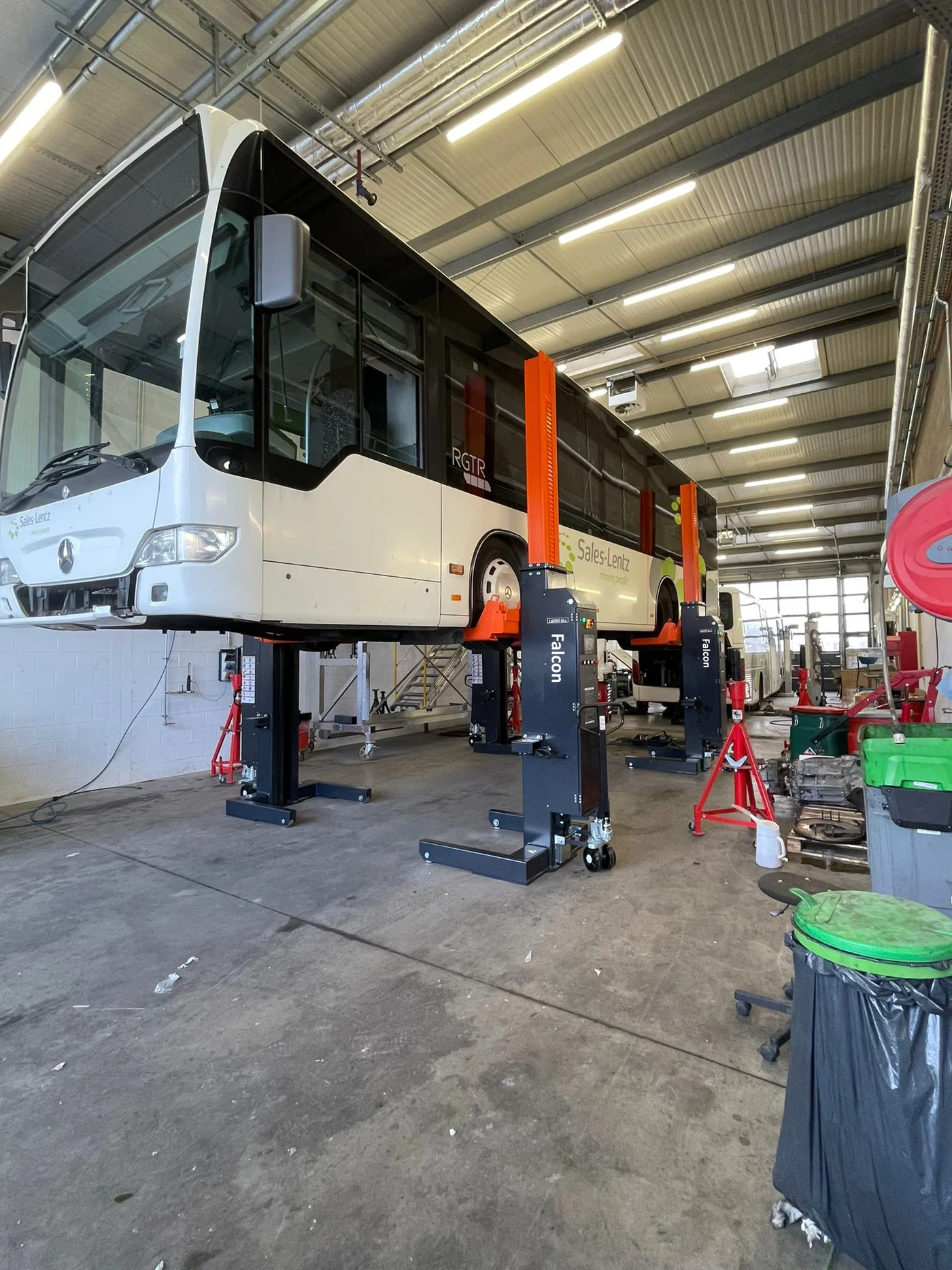

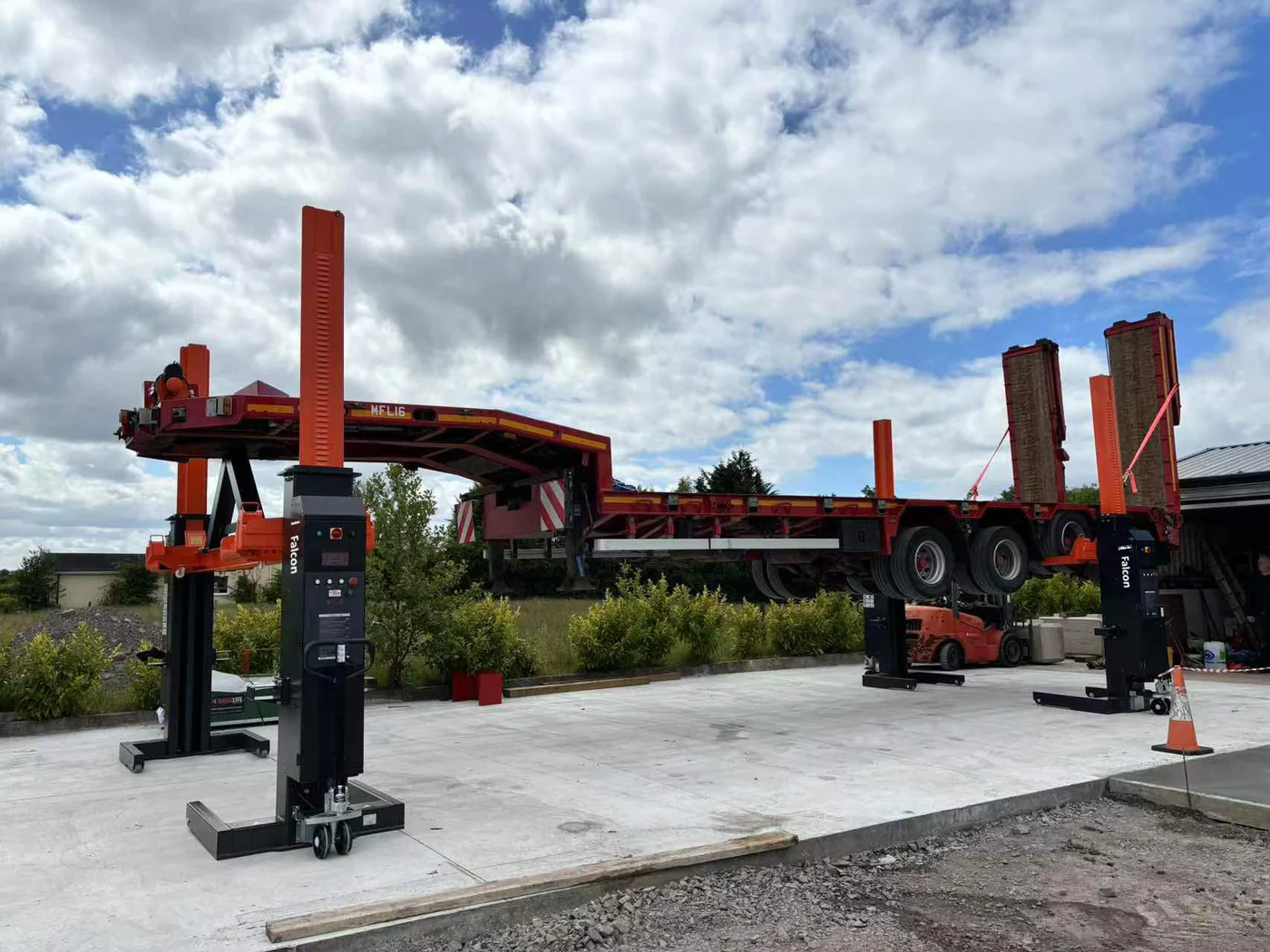

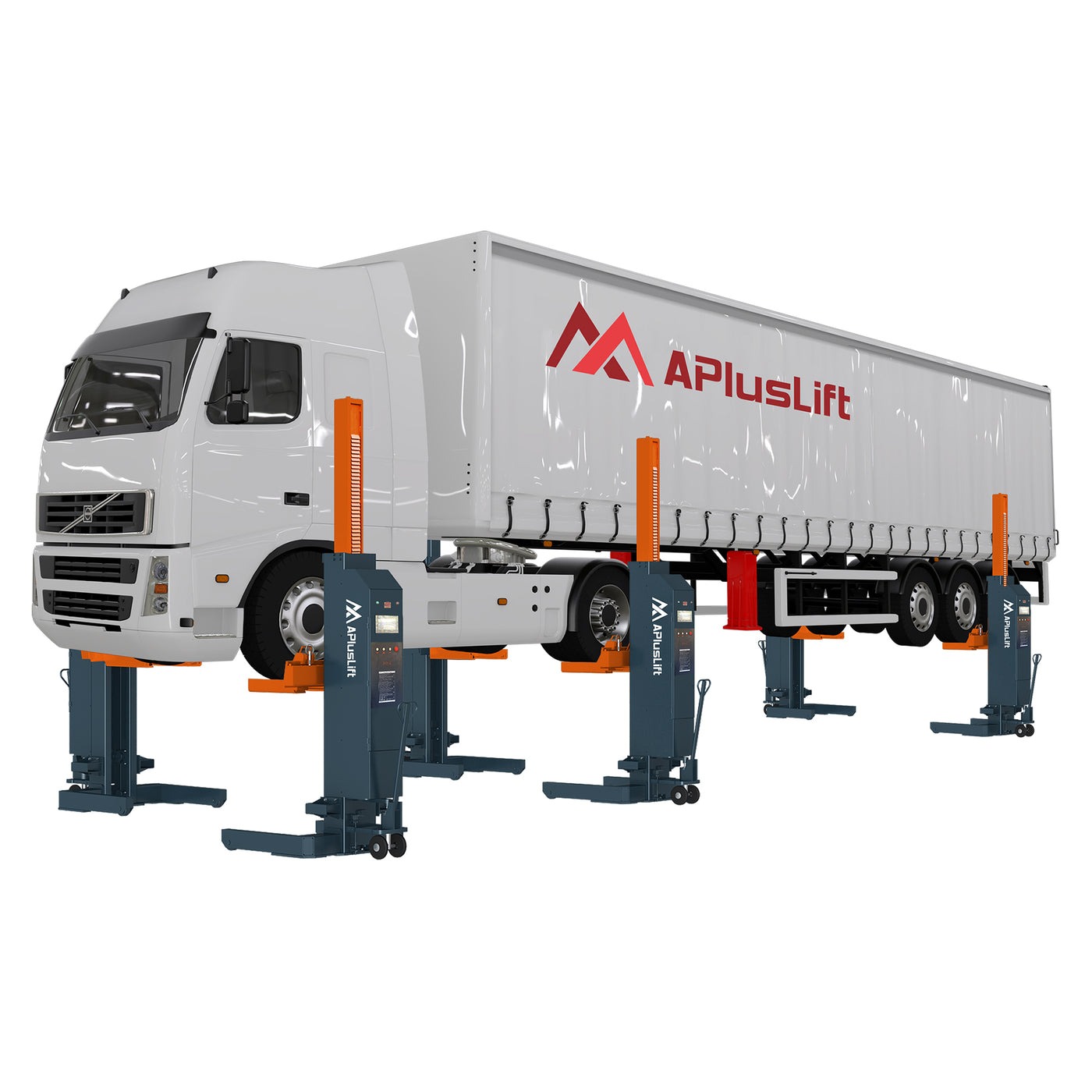

This mobile column lift is perfect for professional automotive service centers, heavy-duty vehicle maintenance, or fleet management operations. Its 18,000 LB lifting capacity per column makes it suitable for lifting trucks, buses, and other large vehicles with ease, while its mobile design offers flexibility for various lifting needs.
