Atlas BP10000 Baseplate 2 Post Lift

Atlas BP10000 Baseplate 2 Post Lift - 10,000 lb Capacity

Robust, Reliable, and Versatile: The Atlas BP10000 Baseplate 2 Post Lift

The Atlas BP10000 Baseplate 2 Post Lift is a premium lift solution for automotive repair shops and garages that require high-quality equipment to handle a variety of vehicles. With a 10,000 lb lifting capacity, it is ideal for cars, light trucks, and other vehicles requiring efficient, unobstructed access for repairs and maintenance. Its space-efficient design ensures it is an excellent choice for facilities with limited ceiling height.

Key Features and Benefits:

10,000 lb Lifting Capacity: Suitable for most passenger vehicles and light trucks.

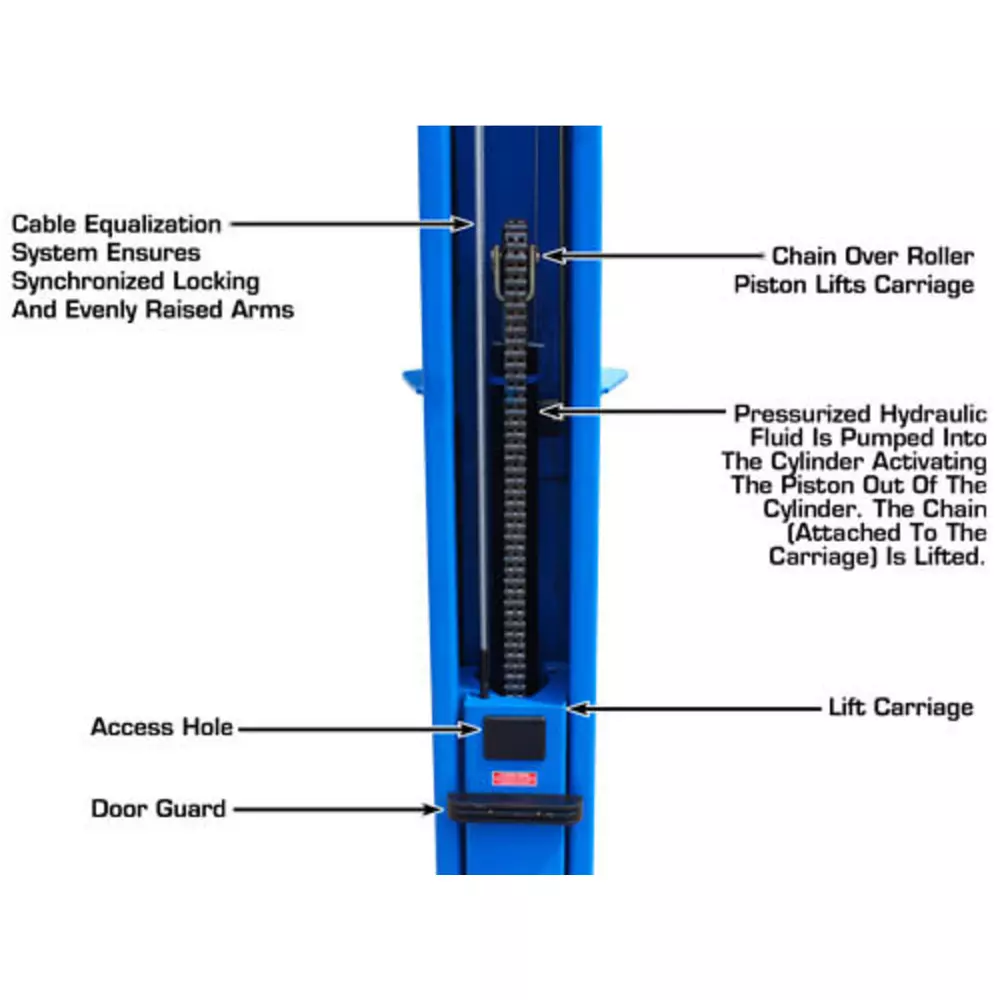

Dual Hydraulic Chain-Drive Cylinders: Built to ANSI standards for smooth lifting and lowering operations.

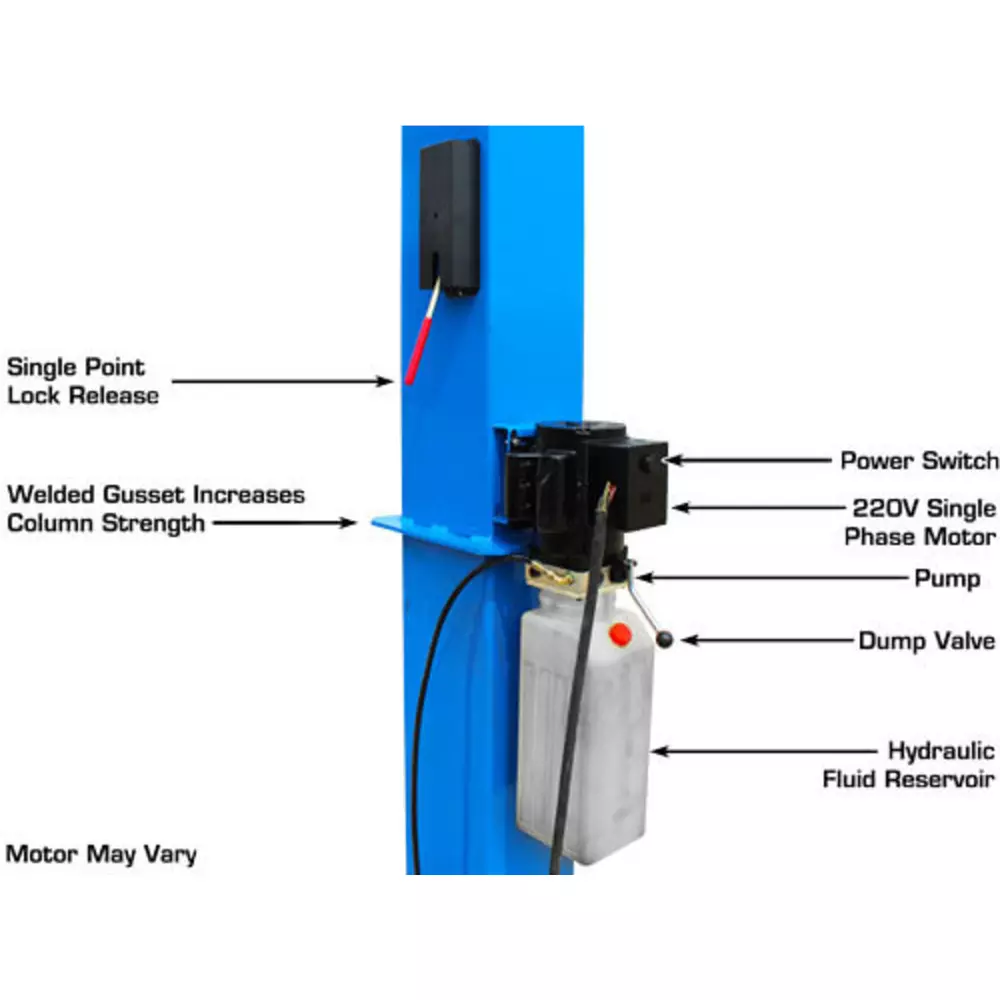

Single-Point Lock Release: Disengage both columns simultaneously for faster operation.
Double Lock System: Enhances the lift’s safety and security during operation.

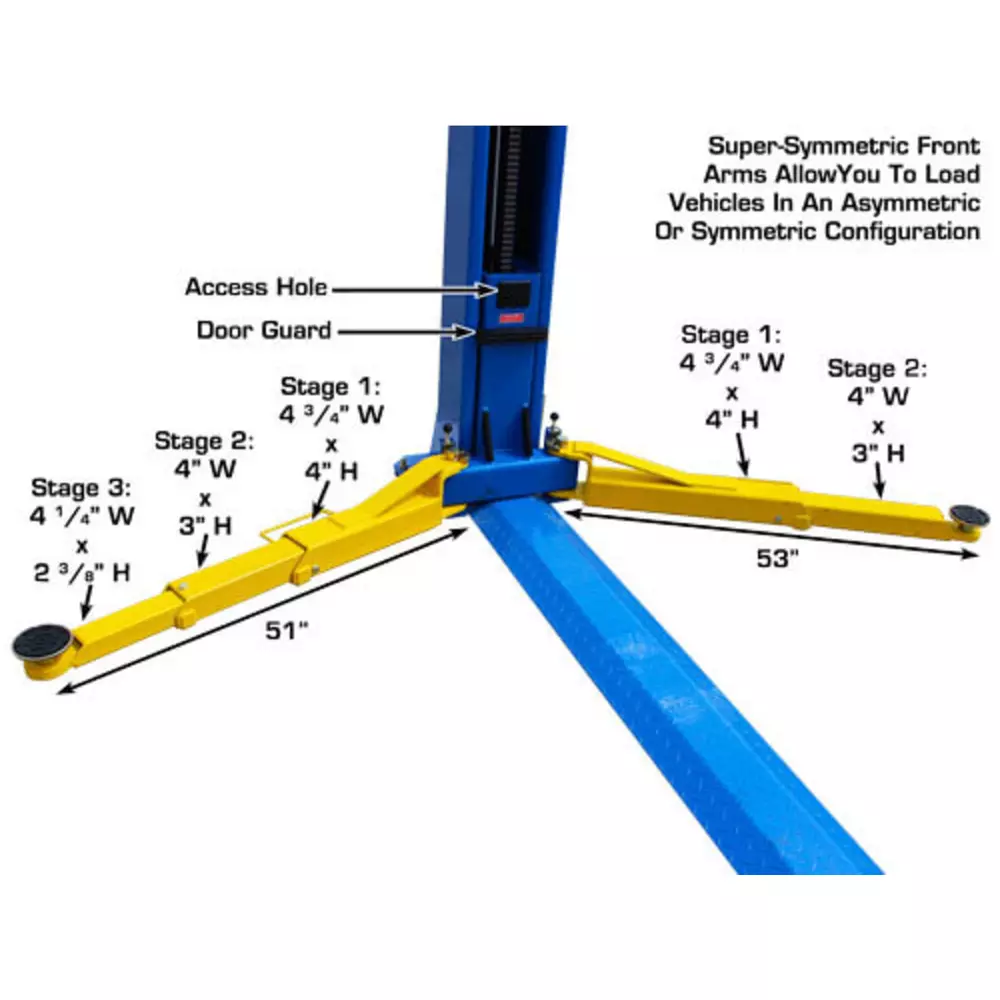

Super-Symmetric Arms: Offers flexibility to accommodate a wide range of vehicle sizes.
Baseplate Design: Does not require overhead clearance, ideal for lower ceiling heights.

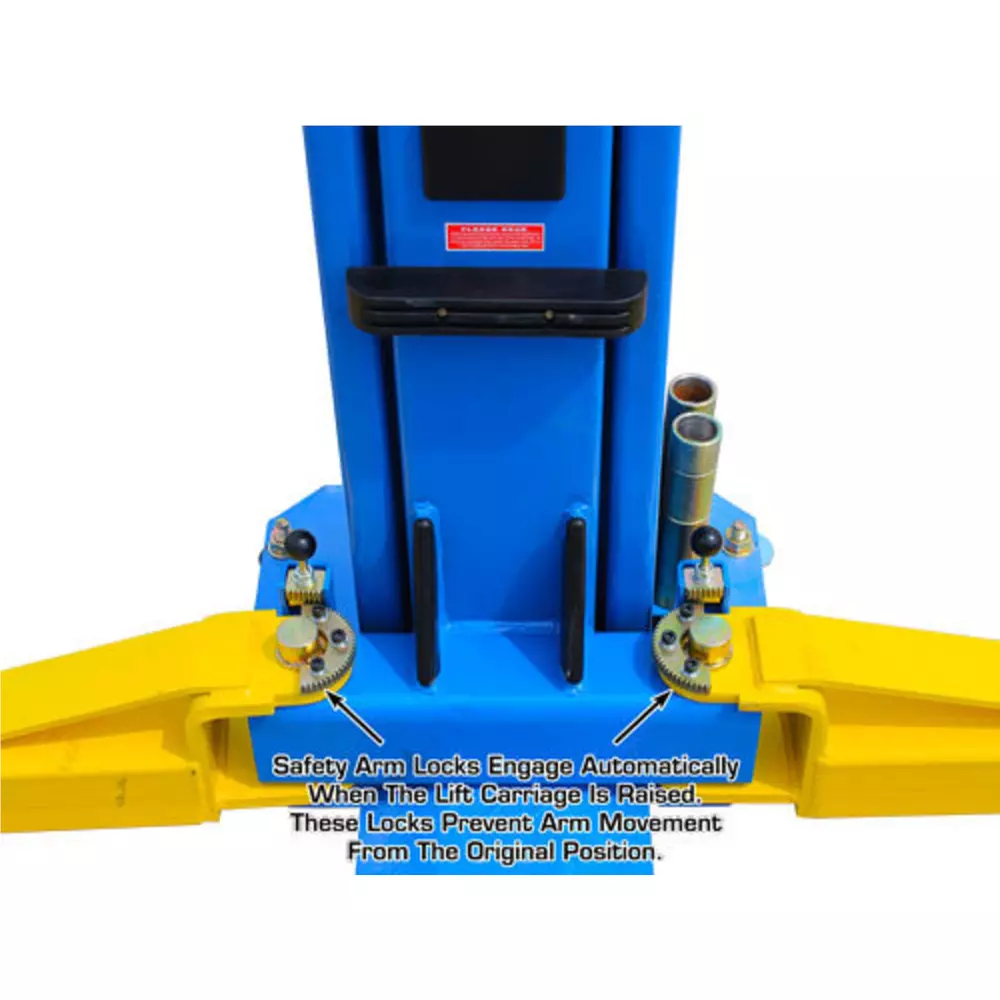

Automatic Arm Restraints: Provides additional safety during operation.
Powder Coat Finish: Durable finish ensures corrosion resistance and long-lasting performance.

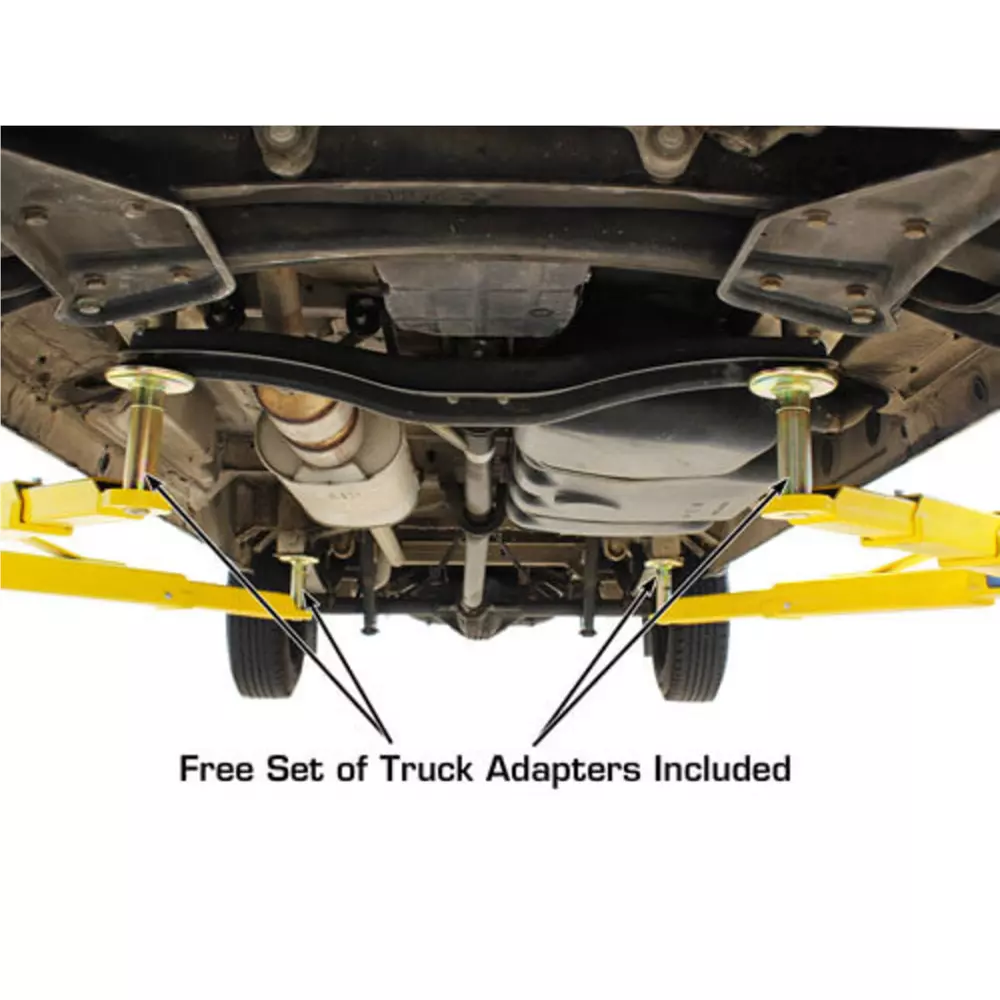

Free 12-Piece Truck Adapter Set: Includes a set of adapters to further extend the lift’s versatility.
Five-Year Structural Warranty: Backed by a solid warranty for peace of mind.

Specifications:

Capacity: 10,000 lb

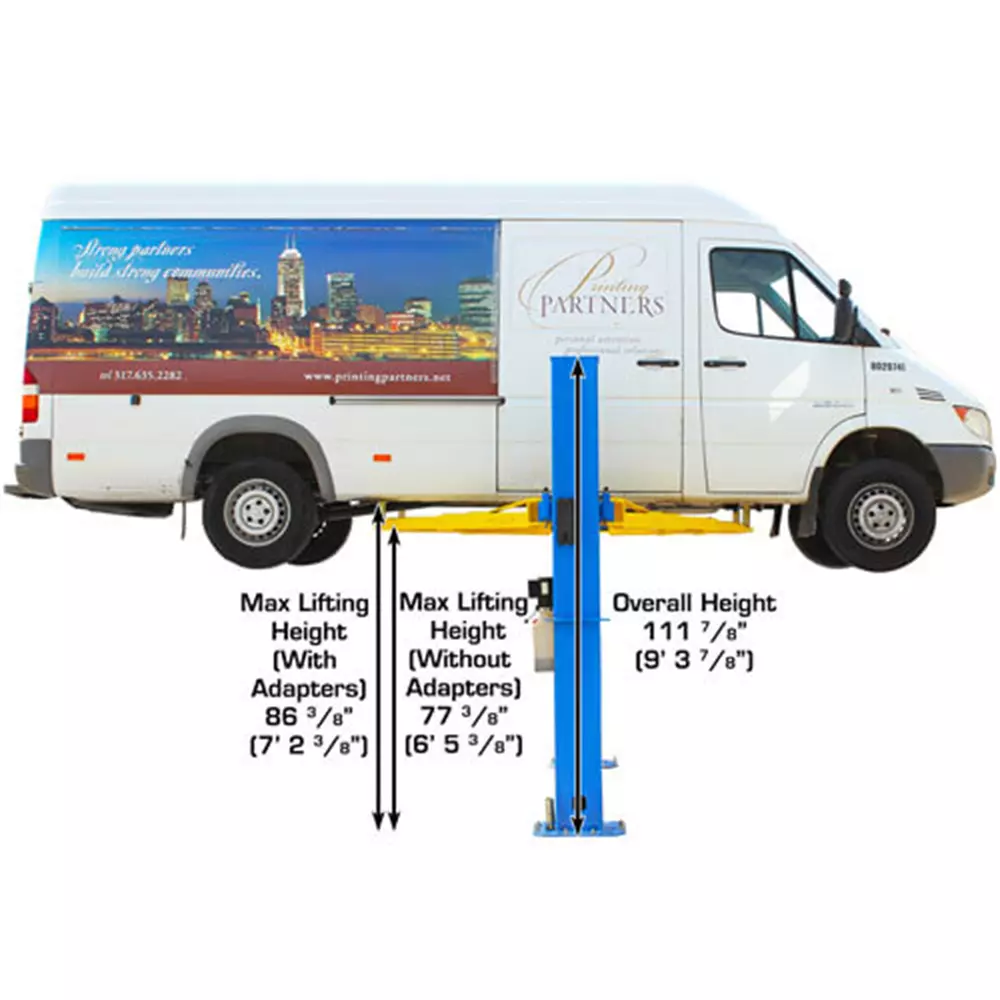

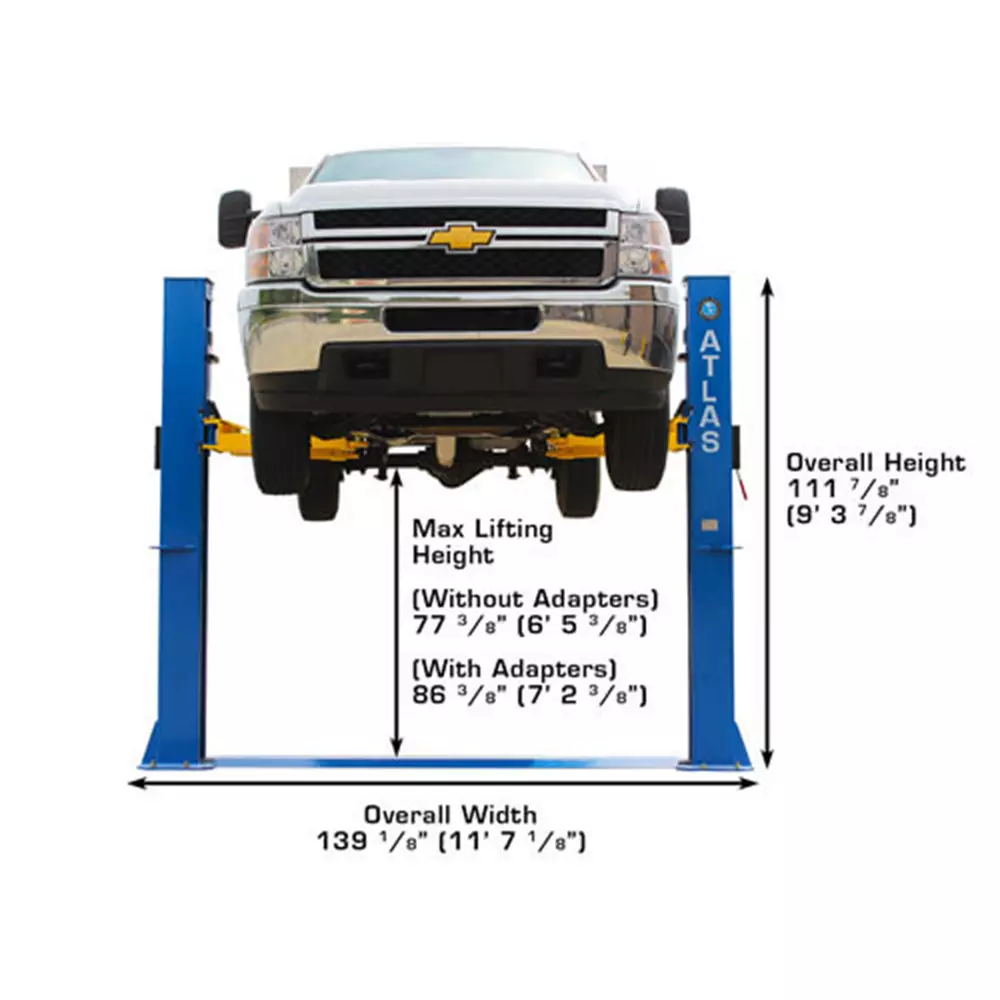

Overall Height: 111 7/8” (9’ 3 7/8”)
Overall Floor Width: 139 1/8” (11’ 7 1/8”)
Maximum Lift Height (Without Adapters): 77 3/8”
Maximum Lift Height (With Adapters): 86 3/8”
Minimum Arm Height: 4”

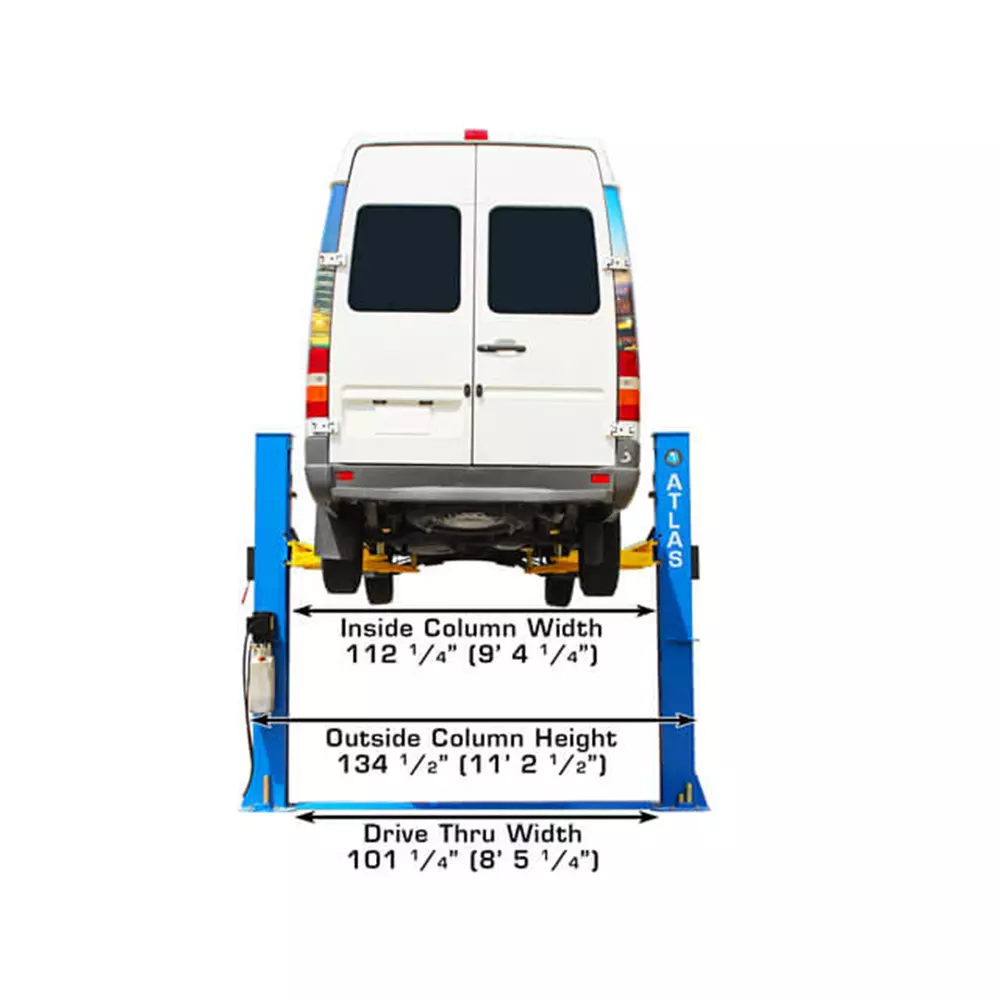

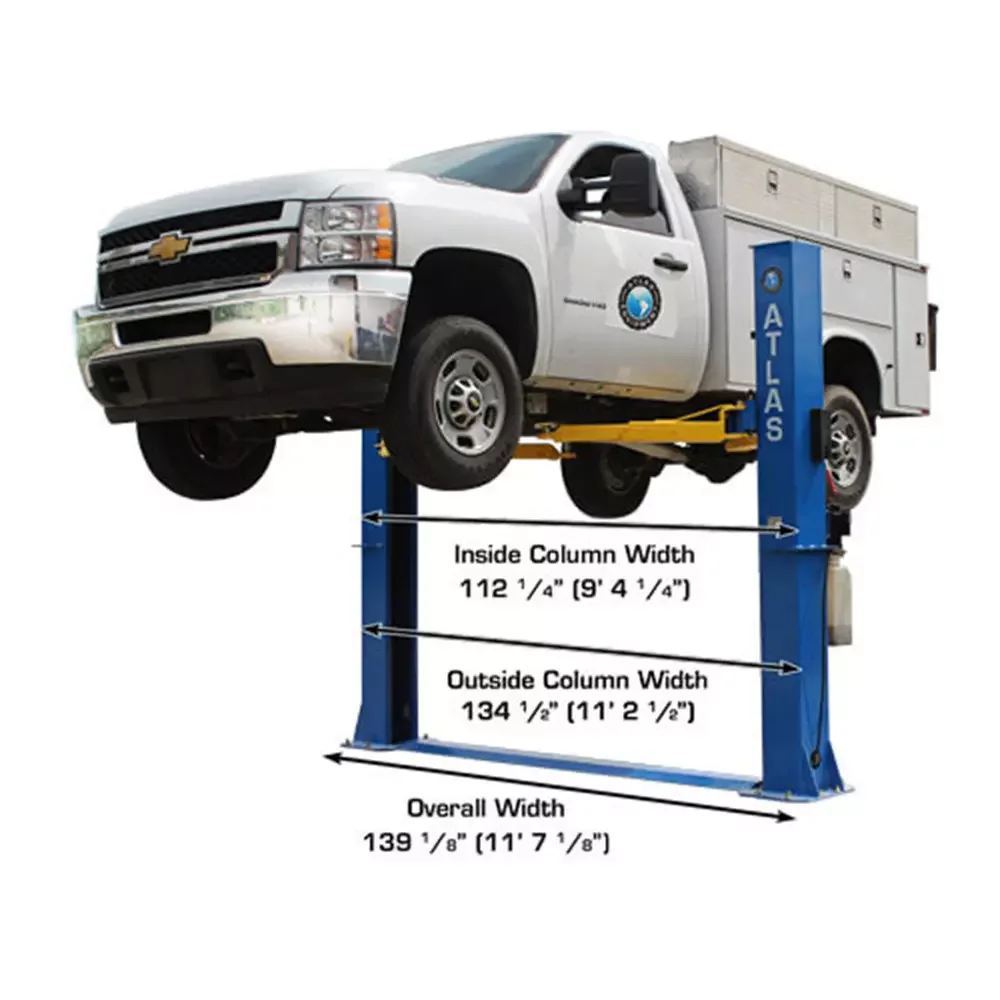

Inside Column: 112 1/4” (9’ 4 1/4”)
Drive Thru Width: 101 1/4” (8’ 5 1/4”)

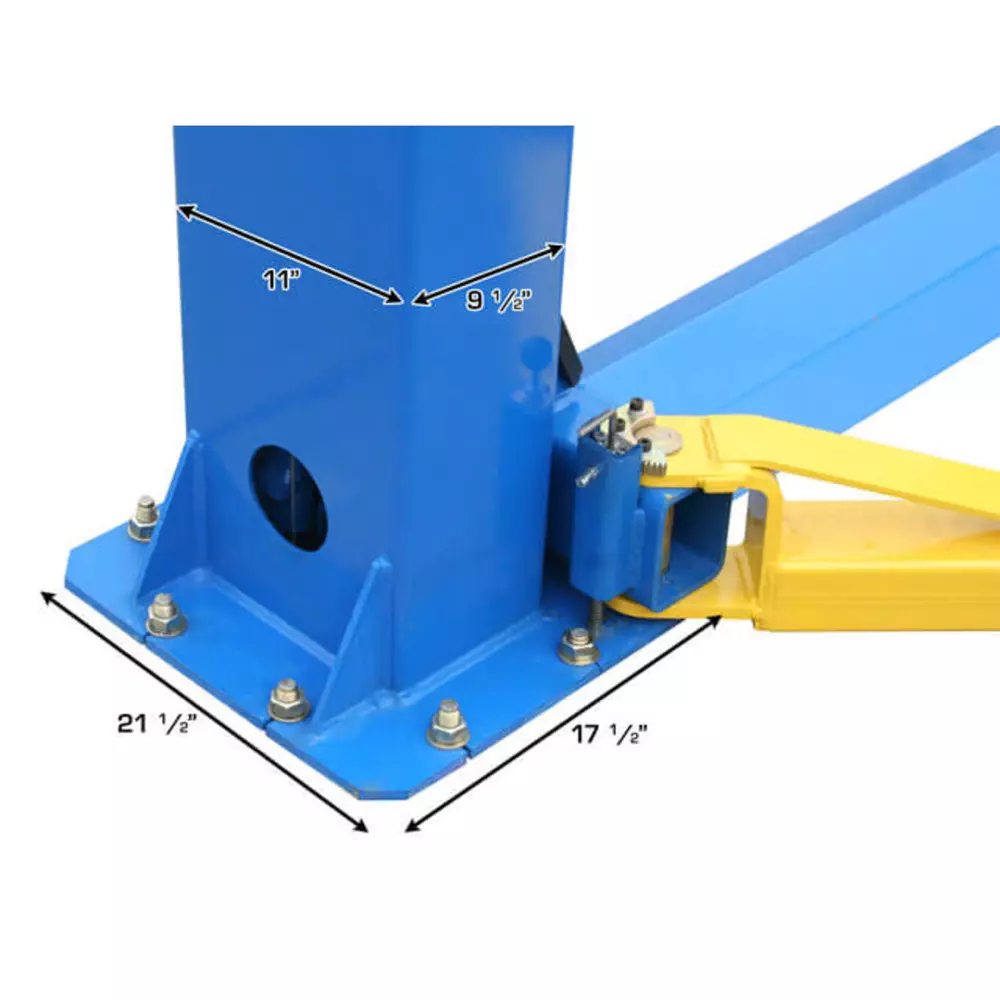

Column Size: 9 1/2” x 11”
Column Thickness of Steel: 6mm
Base of Lift: 17 1/2” x 21 1/2”
Motor/Electrical Requirement: 220V single-phase (A 30 amp breaker is recommended)
Oil Requirement: 3-5 gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight: 1,640 lbs

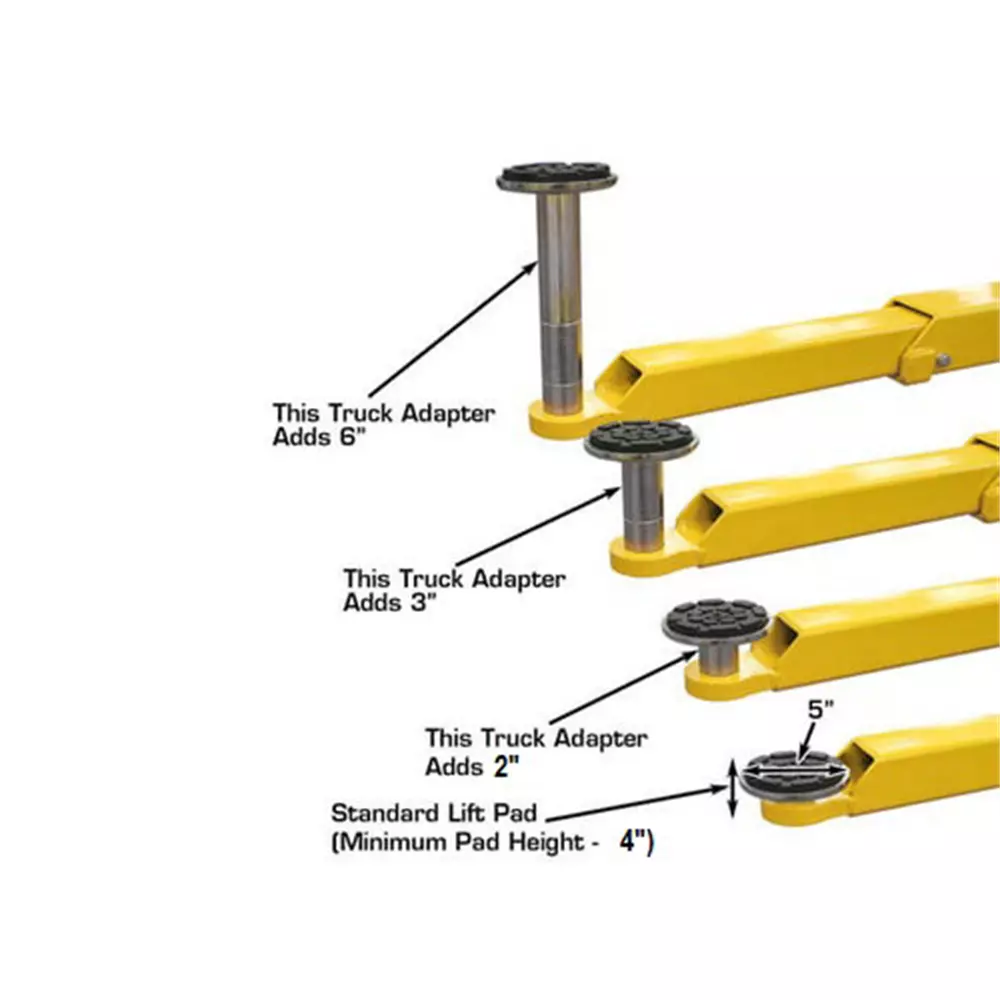

Adapter Heights:

4 Each of 2", 3", and 6"

Optional Features:

Adapters for additional lifting heights

Installation Process:

Proper installation of the Atlas BP10000 Baseplate 2 Post Lift is crucial for ensuring safety and performance. Professional installation is recommended to ensure that the columns are properly aligned and anchored to a smooth, reinforced concrete floor. Installation requires tools such as a hammer drill, torque wrench, and a level to ensure precision. The power supply should be checked to ensure compatibility with the lift’s electrical requirements.

Maintenance & Troubleshooting Tips:

Routine Inspections: Regularly inspect the structural components, cables, and hydraulic system for any signs of wear or damage.
Lubrication: Ensure that all moving parts, including arms and carriage rollers, are lubricated according to the manufacturer’s schedule to minimize wear.
Hydraulic System Maintenance: Check for hydraulic fluid levels and ensure that hoses are secure and free from leaks.
Troubleshooting: For issues such as hydraulic leaks or alignment problems, check for leaks in hoses, adjust the lift components, and consult the user manual for detailed troubleshooting steps.

Warranty:

5-Year Structural Warranty (covers lift structure)
2-Year Hydraulic Cylinder Warranty
1-Year Power Unit Warranty
