ATLAS BP12000X 12,000 lb Baseplate Lift (12,000lbs Capacity)

1 / 9

ATLAS BP12000X 12,000 lb Baseplate Lift (12,000lbs Capacity)

$ 2,370.99

$ 4,649

Atlas BP12000 12,000LB 2-Post Bottom Plate Lift

The Atlas BP12000 2-Post Bottom Plate Lift is a heavy-duty, professional-grade car lift designed to handle vehicles up to 12,000 pounds. Ideal for mechanics and commercial garages, it combines durability, safety, and efficiency with a space-saving bottom plate design.

Key Benefits

12,000 lb. Lifting Capacity – Handles light-duty cars to heavy trucks
Bottom Plate Design – Ideal for low-ceiling shops, no overhead crossbar

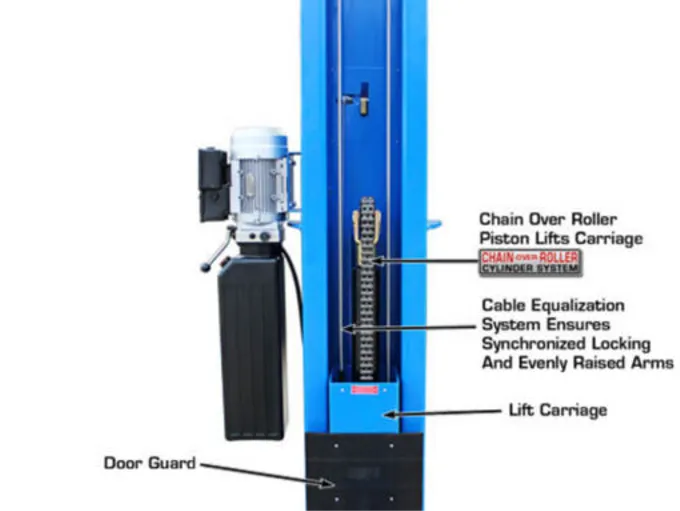

Dual Hydraulic Cylinders – ANSI-standard, reliable chain-drive system
Open Top & Symmetric Arms – Easier access and improved stability
Automatic Arm Restraints & Safety Locks – Keeps vehicle secure during lift
Powder-Coated Finish – For enhanced durability and corrosion resistance
User-Friendly Controls – Intuitive operation with minimal maintenance
Free 12-Piece Truck Adapter Set Included

Real-World Performance

Praised by shop owners and technicians alike, the BP12000 offers reliable lifting for vehicles of all sizes. Users report consistent performance, increased productivity, and low maintenance. Some installations may require assistance, but Atlas customer service is highly rated for support.

Specifications

Capacity: 12,000 LB

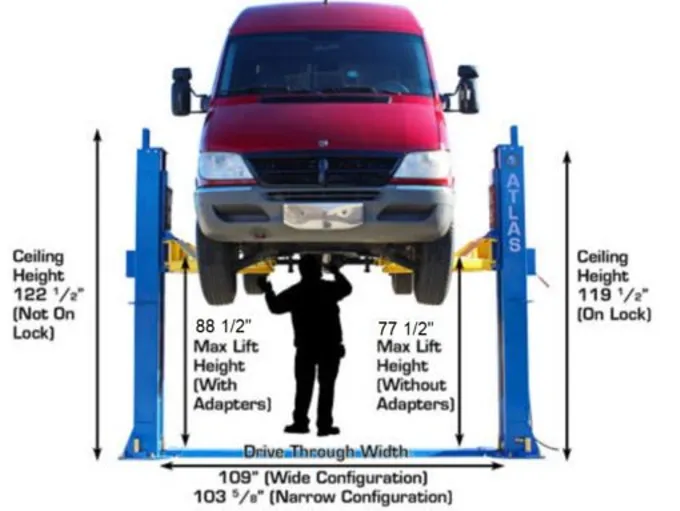

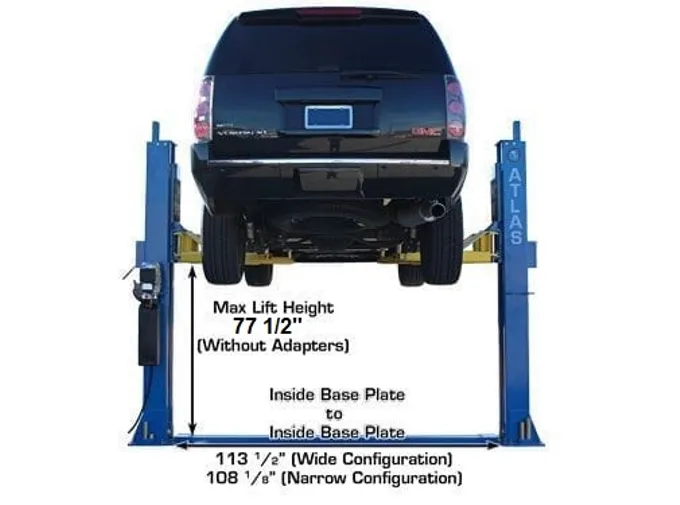

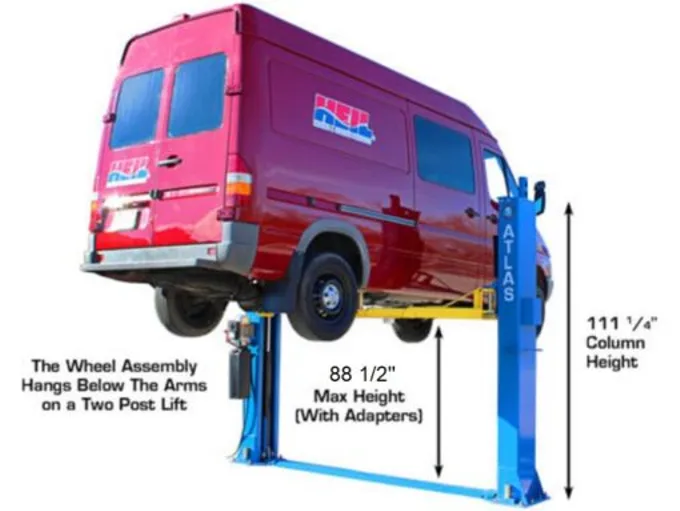

Maximum Lift Height: 77 1/2″ (Without Adapters), 88 1/2″ (With Adapters)
Minimum Arm Height: 4″

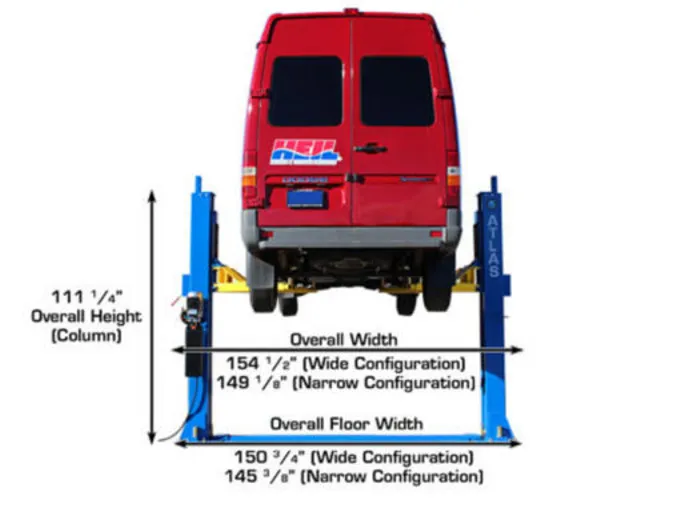

Overall Height: 122 1/2″ (10’ 2 1/2″)

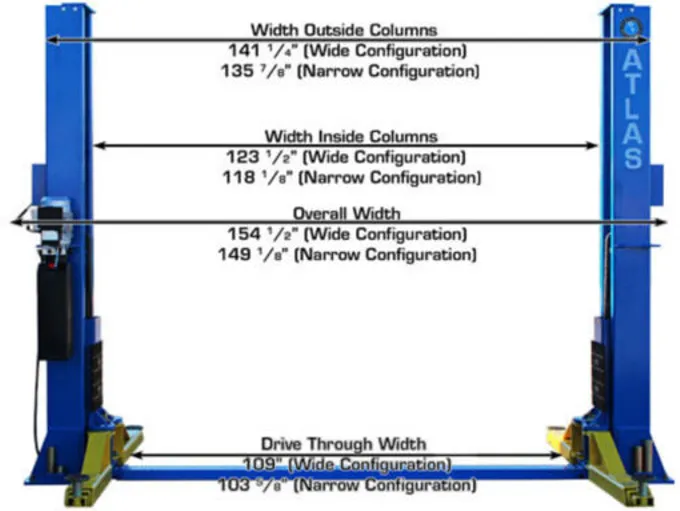

Overall Floor Width: 149 3/8″ or 154 1/2”
Outside Column Width: 135 7/8″ or 141 1/4″
Drive Thru Width: 103 5/8″ or 109″
Inside Column Width: 118 1/8” or 123 1/2″
Column Size: 8 3/4″ x 14″
Steel Thickness (Column): 6mm

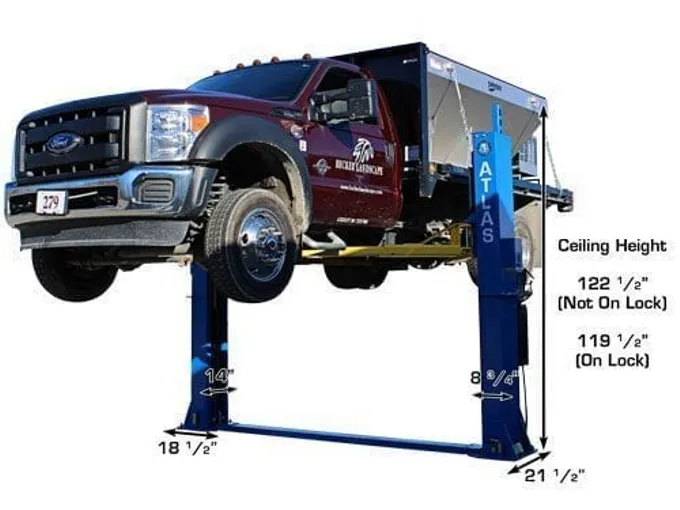

Base Plate Dimensions: 18 1/2″ x 21 1/2″
Motor Requirement: 220V Single Phase (30 Amp Breaker Recommended)
Hydraulic Oil: 3–5 Gallons AW32 or AW46 (Not Included)
Adapter Heights: 4 each – 2”, 3”, and 6”
Arm Hole / Adapter Peg Size: 1.5”
Concrete Requirement: Minimum 6″ at 3000 PSI
Shipping Weight: 2,130–2,300 LB

Warranty

5-Year Structural Warranty
2-Year Hydraulic Cylinder Warranty
1-Year Power Unit Warranty

Included Accessories

12-Piece Truck Adapter Set
Mounting Hardware
Installation Manual

Summary

The Atlas BP12000 is a rugged, efficient, and safe lifting solution for any automotive workshop. With its high capacity, bottom plate design, and advanced safety features, it’s the perfect lift for handling everything from passenger vehicles to heavy-duty trucks—without the need for extra ceiling clearance.

Need assistance or have questions? Contact us or visit our FAQ and Shipping Policy pages for more details.
