HD-9 9,000-lb. Capacity Four-Post Lift – Heavy-Duty Parking, Storage & Service Solution

BendPak HD-9 9,000 lb Capacity Freestanding Car Lift

Maximize Your Space, Boost Your Productivity

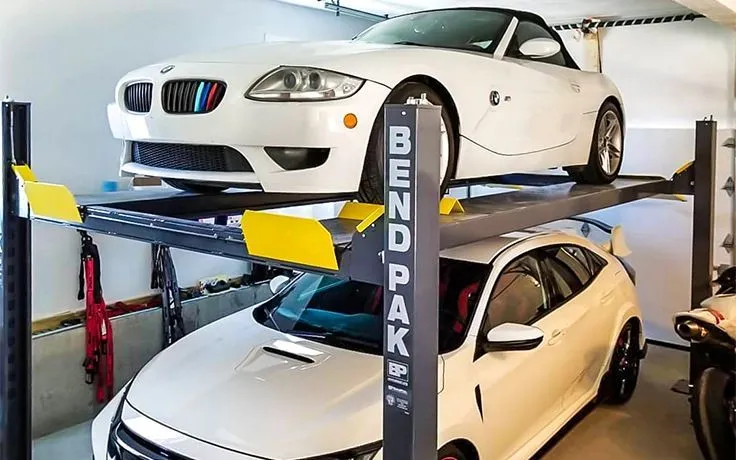

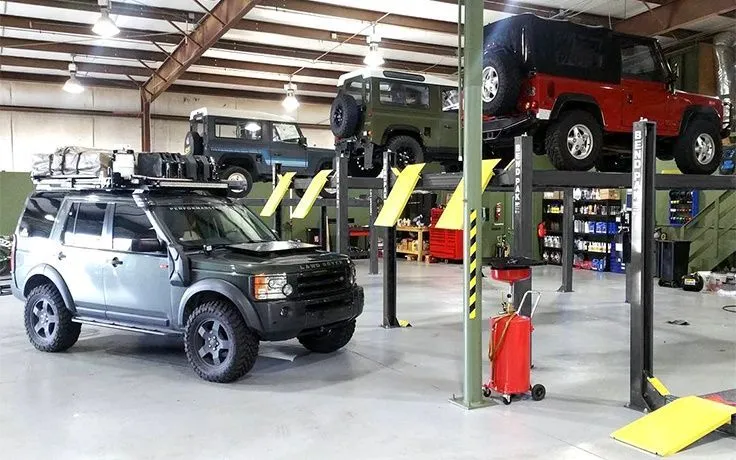

The BendPak HD-9 is the ultimate solution for professional shops, garages, and commercial storage that require reliable, space-saving lifting solutions. With a 9,000-lb capacity and a freestanding design, the HD-9 enables you to utilize vertical space effectively for secure vehicle parking, including cars, trucks, ATVs, and boats. Ideal for tight spaces, this lift offers both flexibility and industrial-grade strength, while maintaining ease of use and maintenance-free performance.

Key Features and Benefits:

9,000-lb. Capacity: Safely lifts vehicles up to 4,500 lbs. per axle, making it perfect for most cars, trucks, and equipment.
Space-Saving Footprint: Fits standard parking spaces with a 110.25" width. Removable ramps provide additional drive-under clearance.
Rapid Operation: Reach full height (75" max lift) in just 45 seconds thanks to its efficient 220V electric/hydraulic system.
14 Locking Positions: Secure your vehicle with locking positions every 4" via push-button pneumatic safety release.

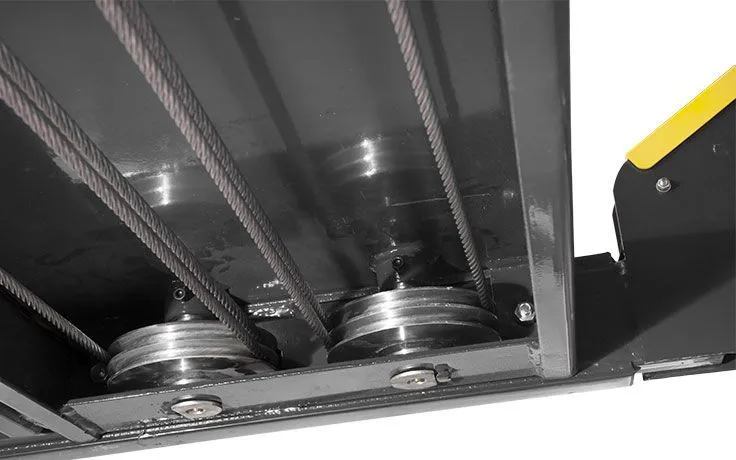

Dual-Hub Cable Sheaves: Reduce wear on cables and axles, extending the lift’s durability.
Self-Lubricating Rollers & Enclosed Cables: Offers maintenance-free performance, even in harsh environments.

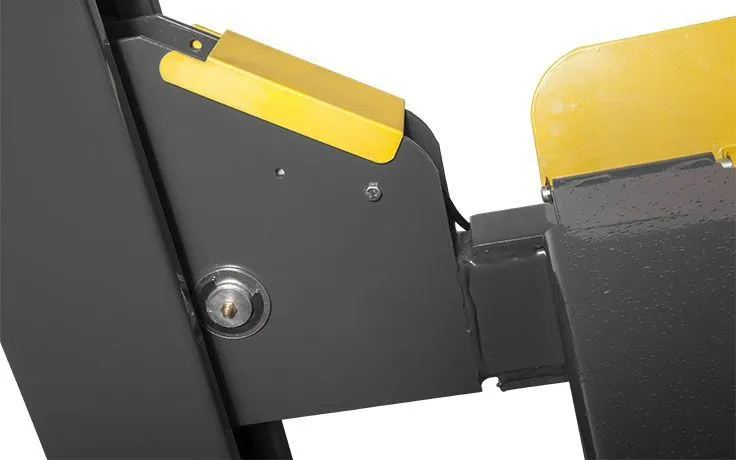

Anti-Sway Sliders & Backup Latches: Ensure stability under max load, with redundancy built into the system.
10-Step Powder Coat Finish: Resists corrosion, chemicals, and wear, ensuring the lift looks great for years to come.

Technical Specifications:

Motor: 220 VAC / 60 Hz / 1 Ph | Noise Level: 45 dB
Max Lifting Height: 75" (1,905 mm)
Min. Runway Height: 5" (127 mm)
Runway Dimensions: 158.25" L x 19" W
Drive-Thru Clearance: 86.5" (2,197 mm)
Locking System: 14 positions (4" spacing)

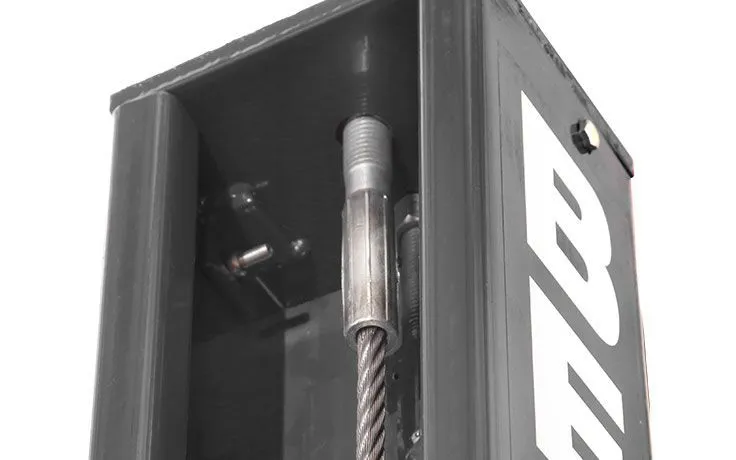

Cable Rating: 3/8" aircraft-grade
Shipping Weight: 1,616 lbs. (733 kg)
Air Supply Required: 30 PSI / 3 CFM

Why Choose the HD-9?

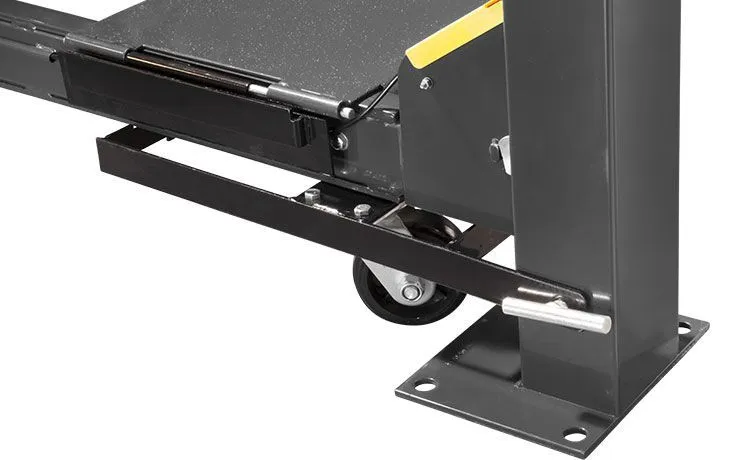

Freestanding Flexibility: No concrete anchoring required. Install the lift anywhere and roll it outdoors with optional casters.

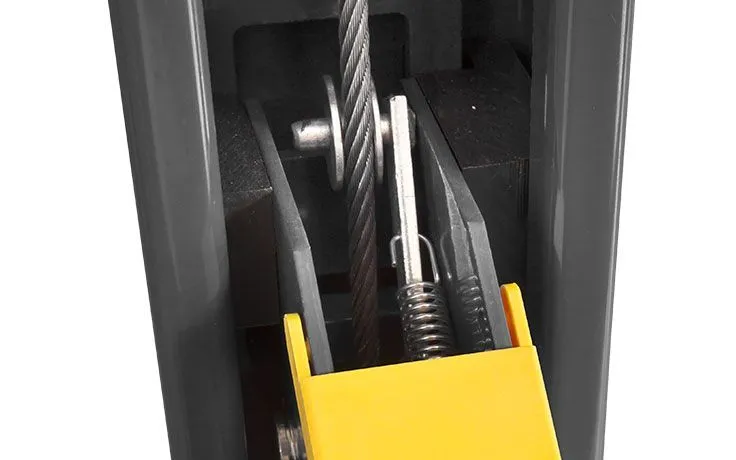

Pro-Grade Safety: Features spring-loaded locks, anti-sway blocks, and independent slack-cable latches for fail-safe operation.
Expandable Utility: Add optional drive-thru ramps, drip trays, solid decks, or RJ-45 rolling jacks (4,500-lb. capacity) to meet your needs.
Low-Profile Ramps: Perfect for vehicles with minimal ground clearance, making loading effortless.

Ideal For:

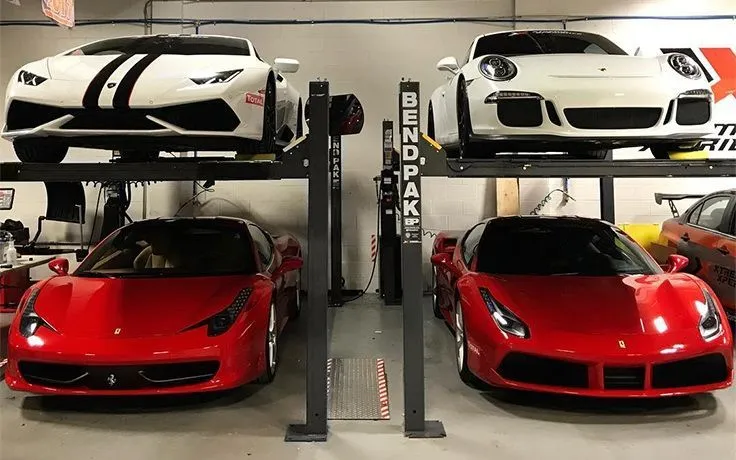

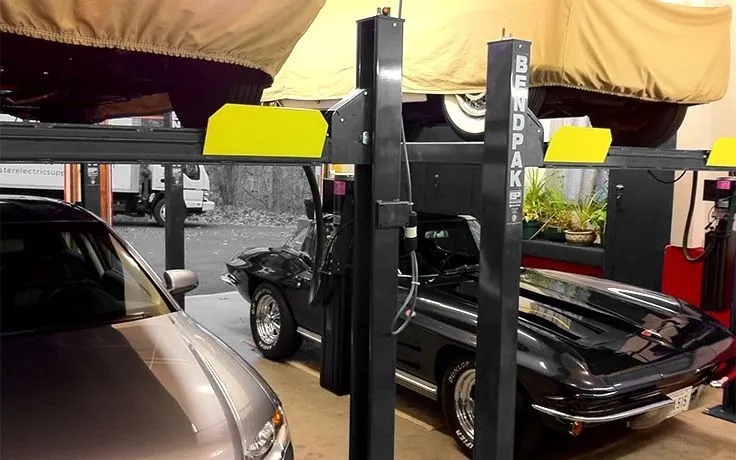

Storing seasonal vehicles, boats, or equipment.

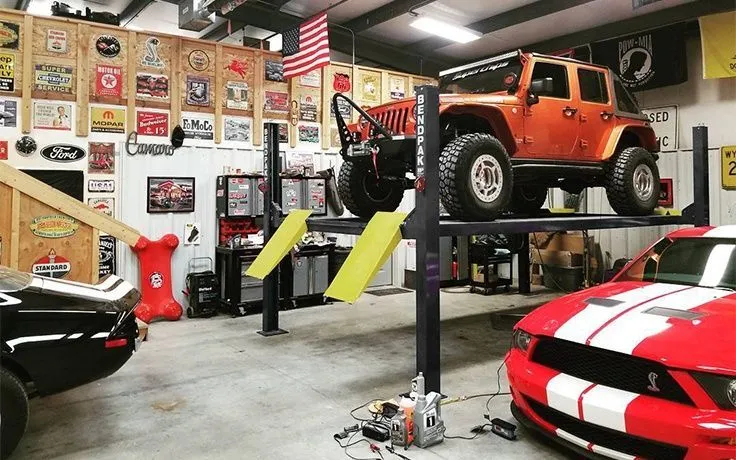

Servicing trucks, SUVs, or compact cars in tight spaces.
Shops needing a reliable secondary lift without sacrificing floor space.

Backed by BendPak’s Legacy

For over 40 years, BendPak has set the industry standard for automotive lifts. The HD-9 continues this tradition with robust steel construction, enclosed components, and a hydraulic cylinder engineered for leak-free performance.
