Rotary® SPOA10 10,000-lb. Capacity Overhead Two-Post Lift – Precision, Durability & ALI-Certified Safety

1 / 8

Rotary® SPOA10 10,000-lb. Capacity Overhead Two-Post Lift – Precision, Durability & ALI-Certified Safety

$ 2,823.60

$ 7,059

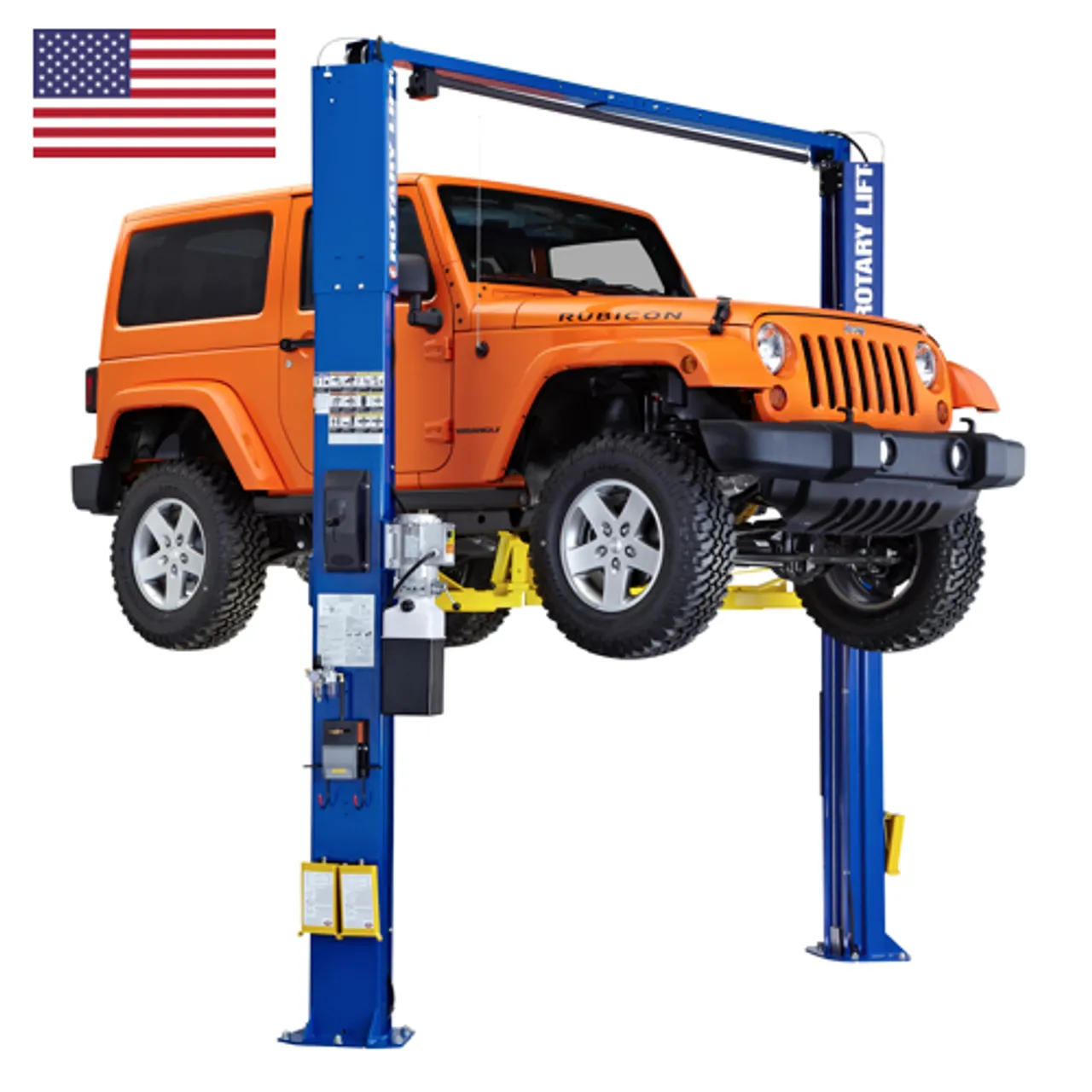

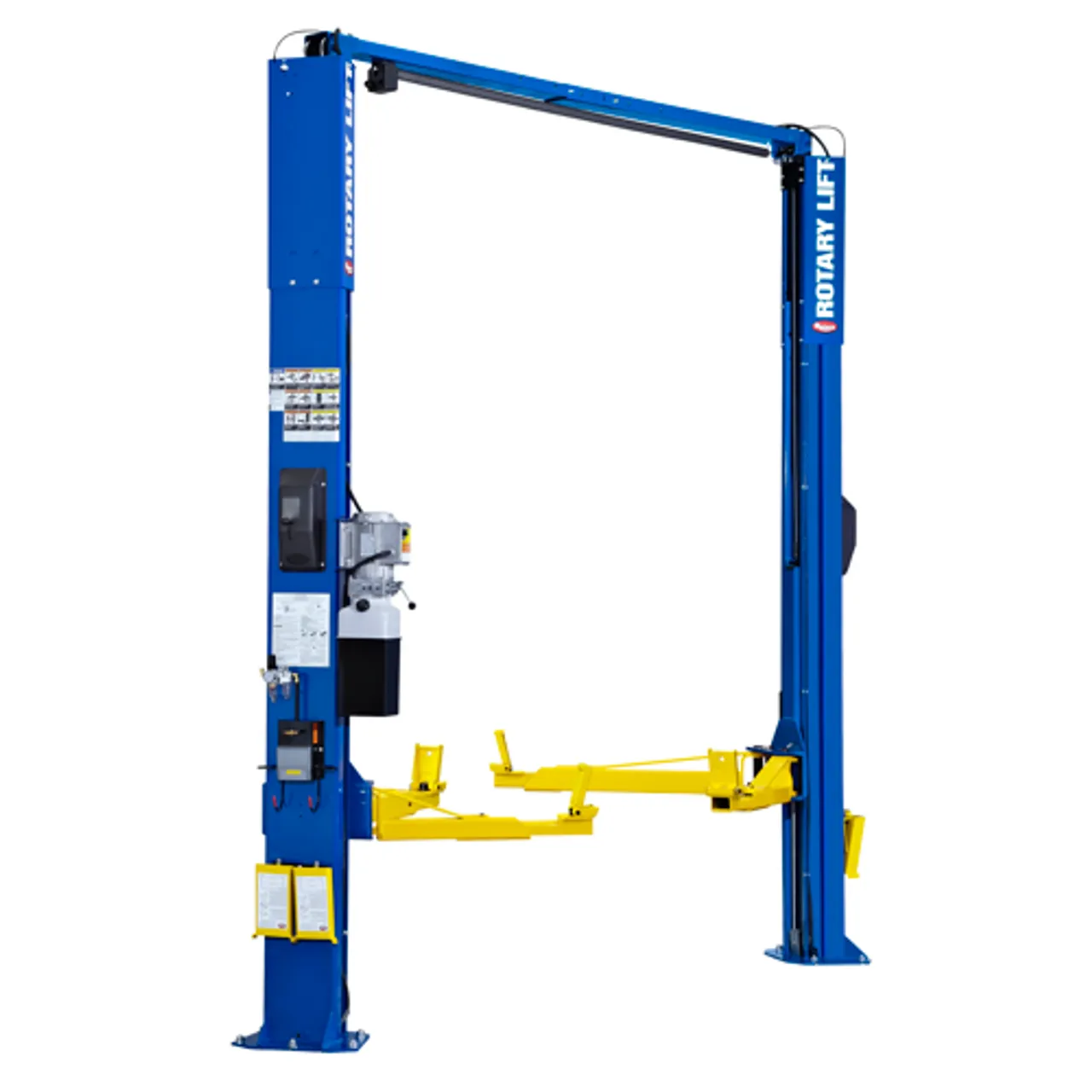

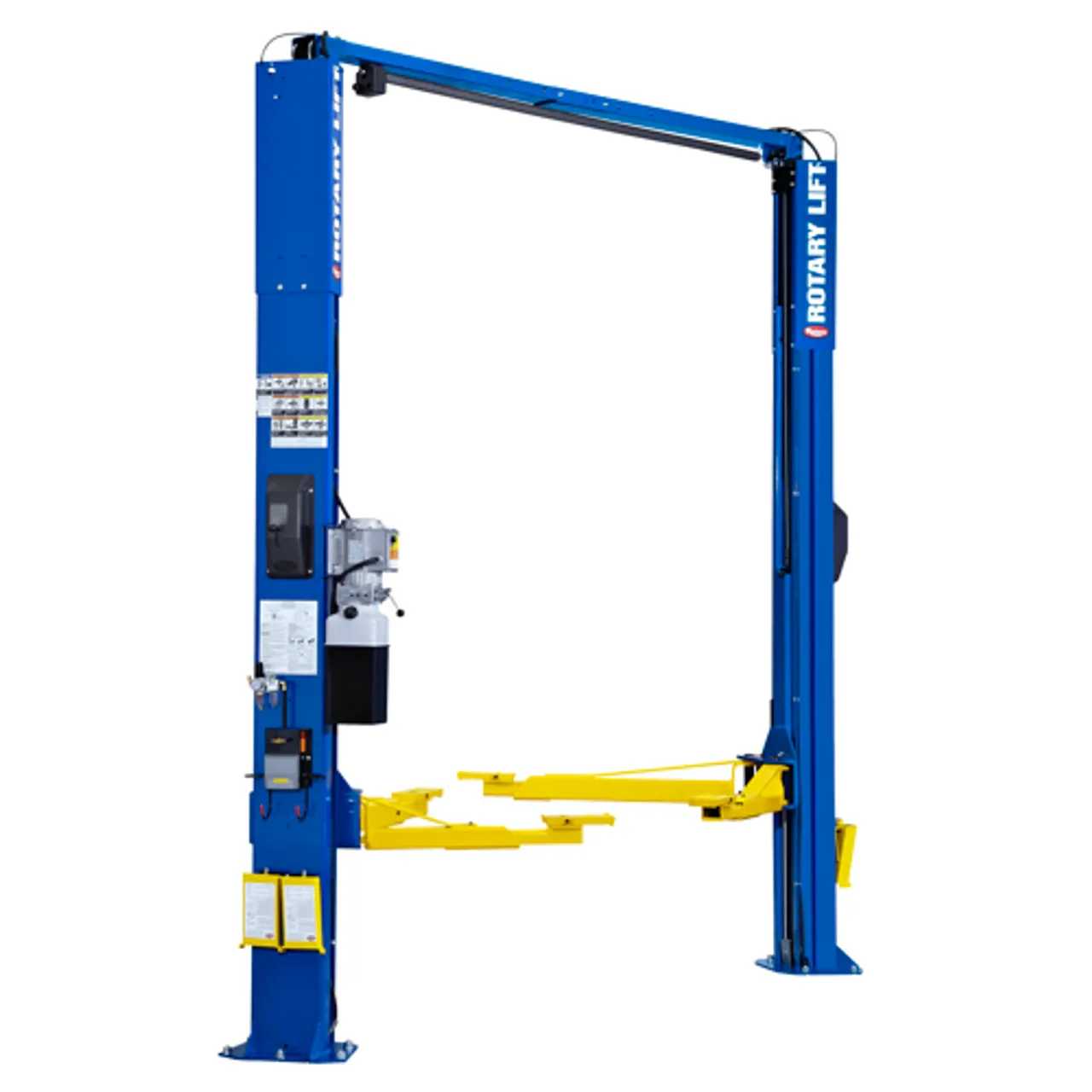

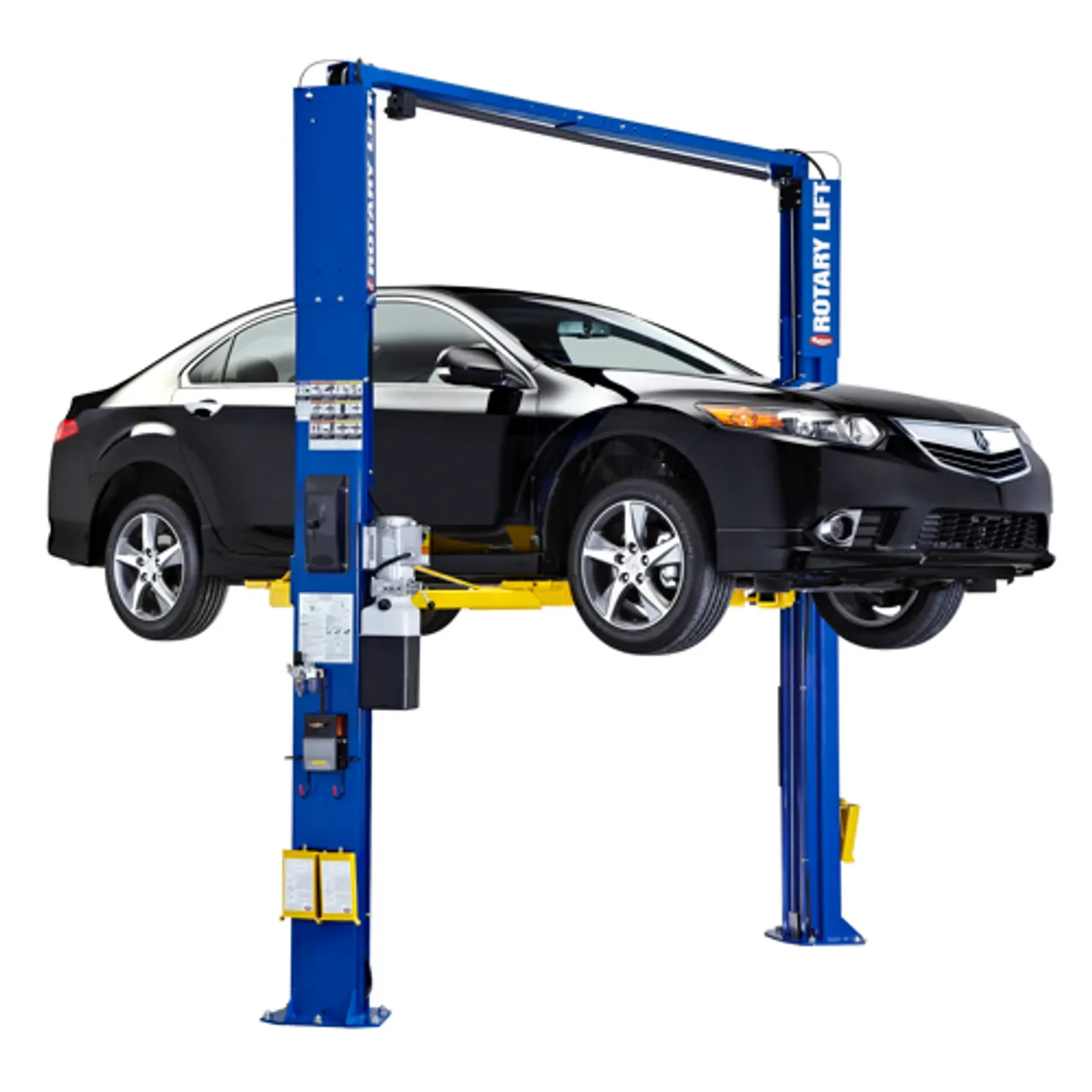

Rotary® SPOA10 Overhead Two-Post Lift

10,000-lb. Capacity for Professional Precision and Reliability

The Rotary® SPOA10 is a rugged, ALI/ETL-certified overhead two-post lift designed for automotive shops, dealerships, and service centers demanding durability, safety, and versatility. Built to handle a wide range of vehicles—from compact cars to full-size trucks—this lift combines Rotary’s legendary engineering with industry-leading safety standards, ensuring seamless operation in high-demand environments.

Key Features & Benefits:

10,000-lb. Capacity: Robust enough for trucks, SUVs, and commercial vehicles while remaining precise for sedans and sports cars.
Overhead Design: Features a crossbeam-supported structure with hydraulic lines routed overhead, optimizing floor space and accessibility.
ALI/ETL Certified: Meets rigorous ANSI/ALI ALCTV-2023 safety and performance standards for peace of mind.

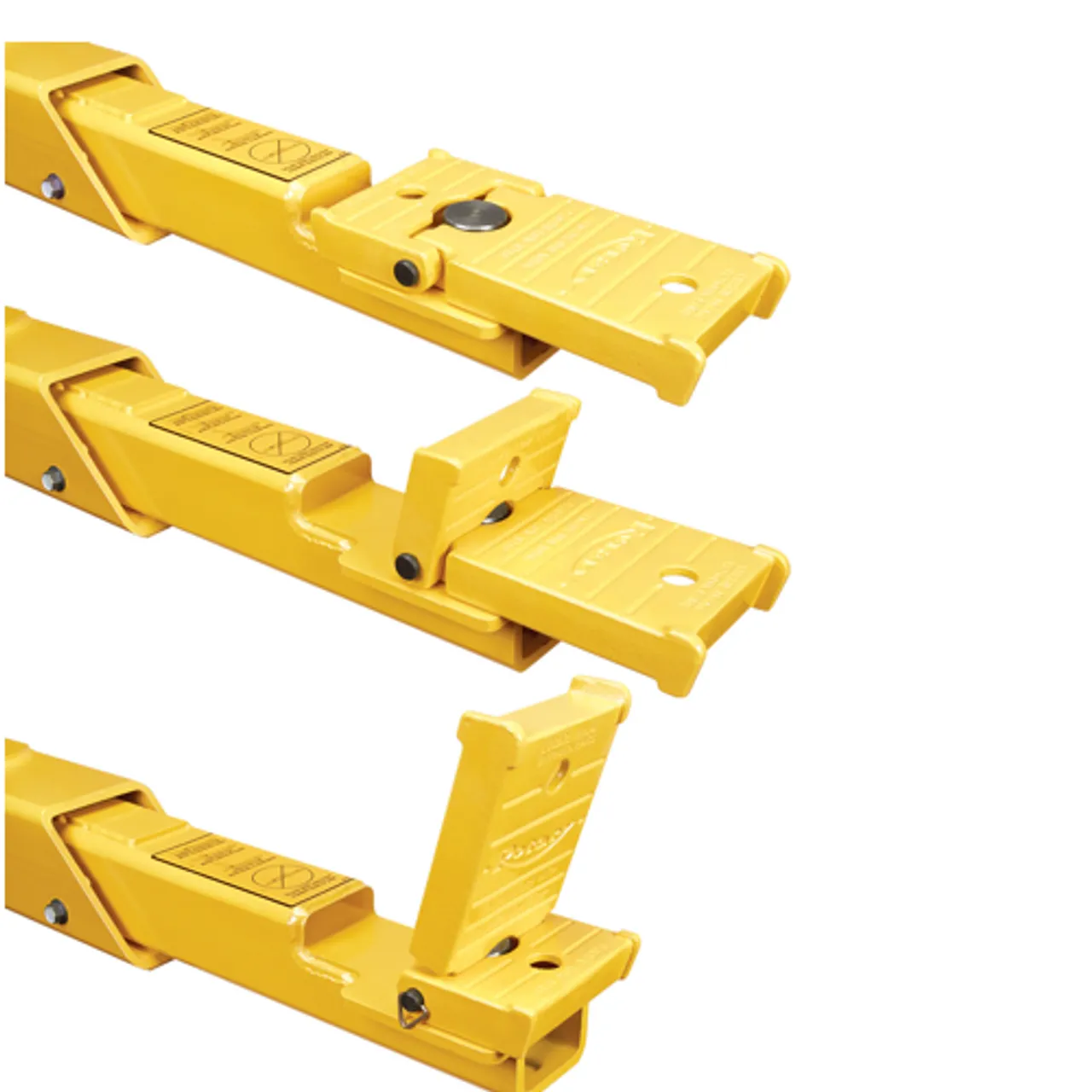

Triple-Telescoping Arms: Adjustable reach (front and rear) accommodates diverse lift points, from low-profile chassis to raised truck frames.
Automatic Mechanical Safety Locks: Engage at 3” intervals during ascent for secure load retention.

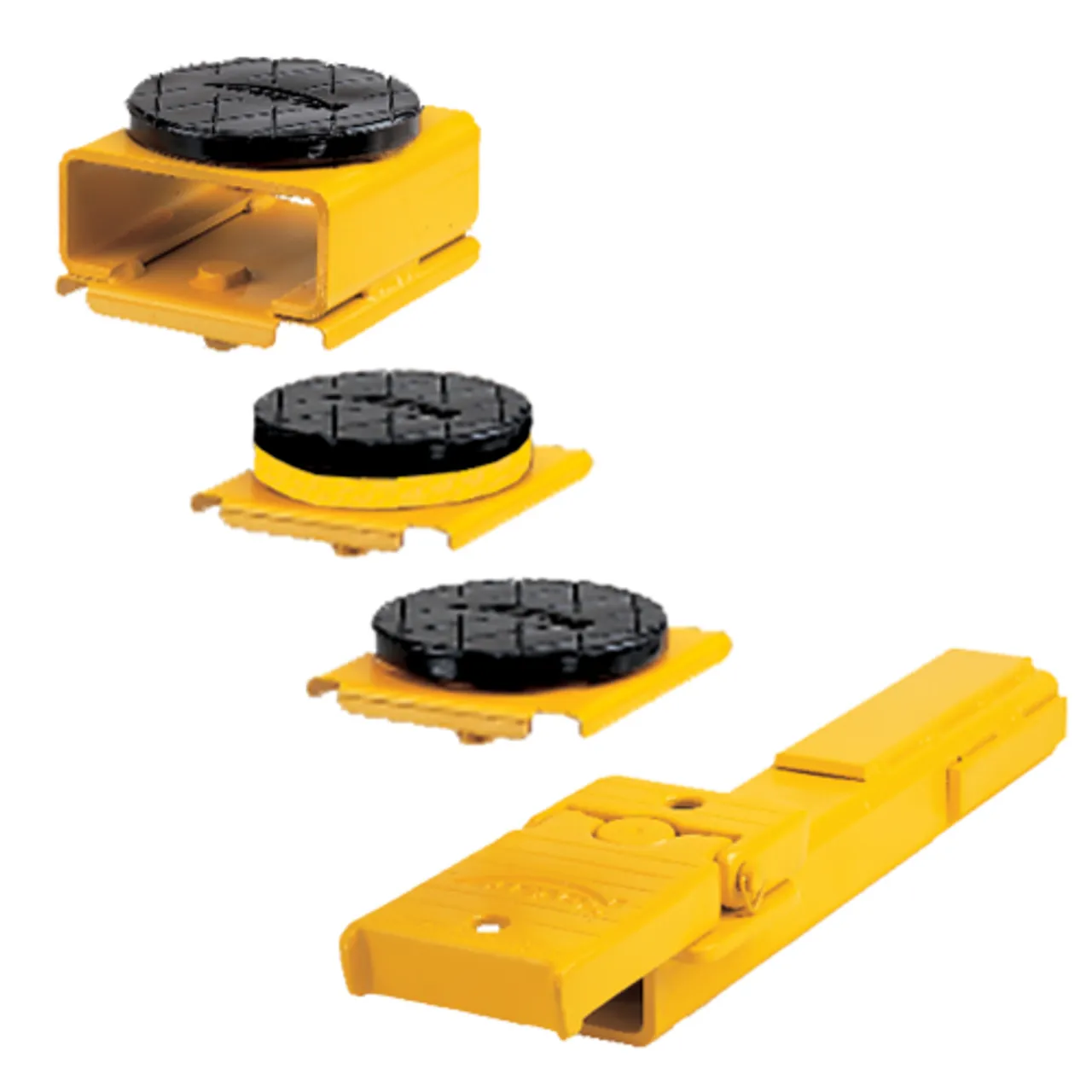

Low-Profile Lift Pads: Safely service vehicles with minimal ground clearance without risking undercarriage damage.
Durable Construction: Reinforced single-piece steel columns, heavy-duty carriage assemblies, and corrosion-resistant hardware.
Self-Lubricating Bearings: Maintenance-free operation with Rotary’s proprietary bearing system for smooth, quiet lifting.
High-Speed Hydraulics: Dual synchronized cylinders ensure fast, balanced lifting (approx. 45–60 seconds to full rise).

Technical Specifications:

Lifting Capacity: 10,000 lbs. (4,536 kg)
Lifting Height: Up to 72” (1,829 mm)
Arm Reach: Adjustable triple-telescoping arms (typical range: 24”–60”)
Motor: 220V/60Hz/3Ph or 220V/60Hz/1Ph (configurable)
Safety Locks: 3” spaced mechanical locks with manual/pneumatic release
Column Construction: Single-piece welded steel with powder-coated finish
Drive-Thru Clearance: Up to 120” (3,048 mm) for wide vehicles
Noise Level: < 75 dB

Why Choose the SPOA10?

Space-Saving Overhead Design: Ideal for shops with limited floor space, as hydraulic lines and power units are elevated, reducing trip hazards.
Versatile Vehicle Compatibility: From electric vehicles to diesel trucks, the SPOA10 adapts to any lifting scenario.
Safety First: Automatic arm restraints, overload protection, and ALI certification ensure compliance with global safety norms.
Proven Durability: Rotary’s 100+ years of expertise ensures components like aircraft-grade cables and hardened steel columns withstand decades of daily use.
Ease of Use: Ergonomic controls, intuitive arm positioning, and minimal maintenance requirements streamline workflow.

Ideal For:

Automotive repair shops
Tire and alignment centers
Fleet maintenance facilities
Dealership service bays
Enthusiast garages with heavy-duty projects

Certifications & Warranty:

ALI/ETL Certified: Validates compliance with ANSI/ALI safety standards.
Rotary’s Limited Warranty: Backed by Rotary’s industry-leading support and parts network.

Upgrade your shop with the Rotary® SPOA10—where innovation, safety, and performance lift your business to new heights.

Note: Specifications may vary based on configuration. Consult Rotary® or authorized dealers for exact details.

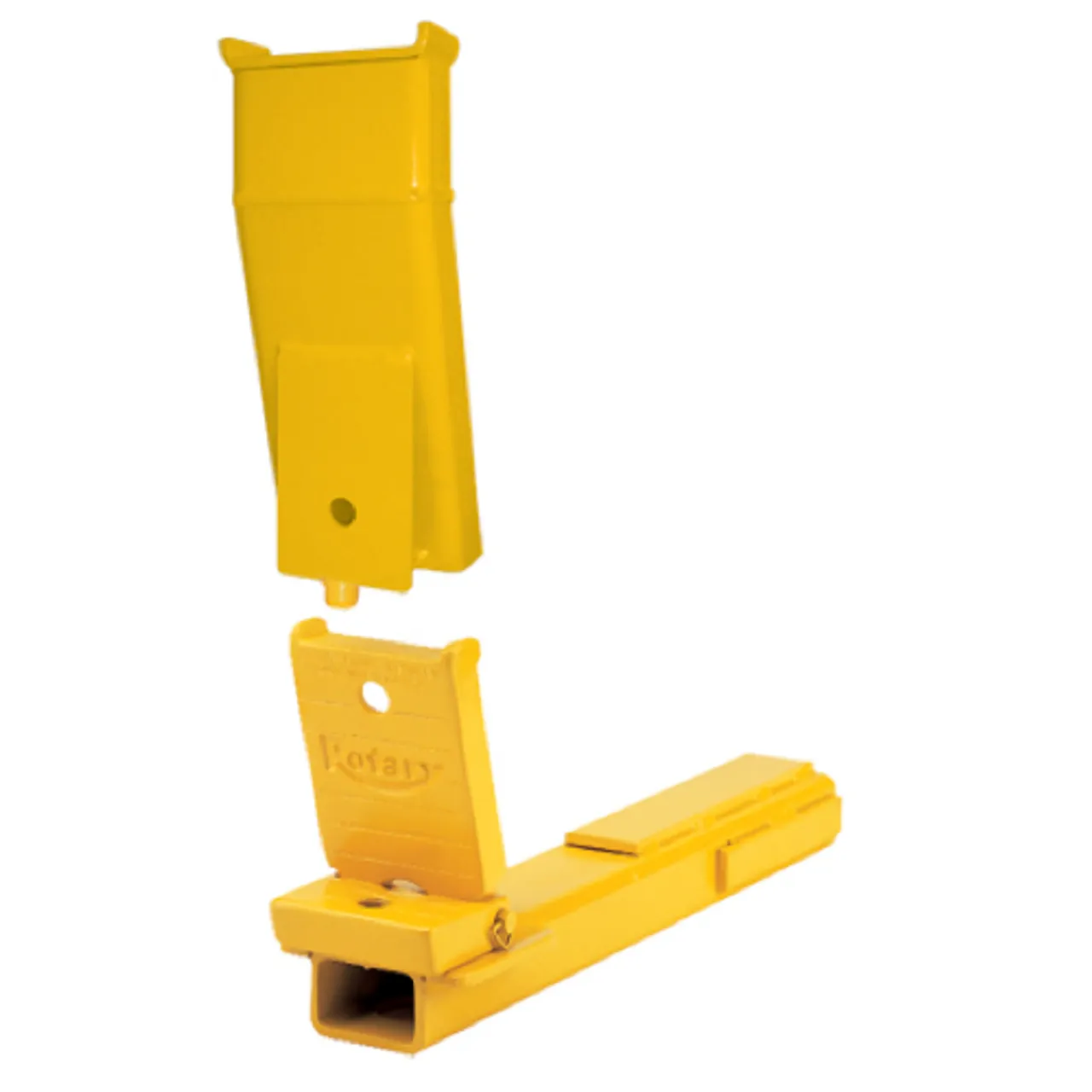

Optional accessories like truck adapters, drip trays, or rolling jacks may be available.
