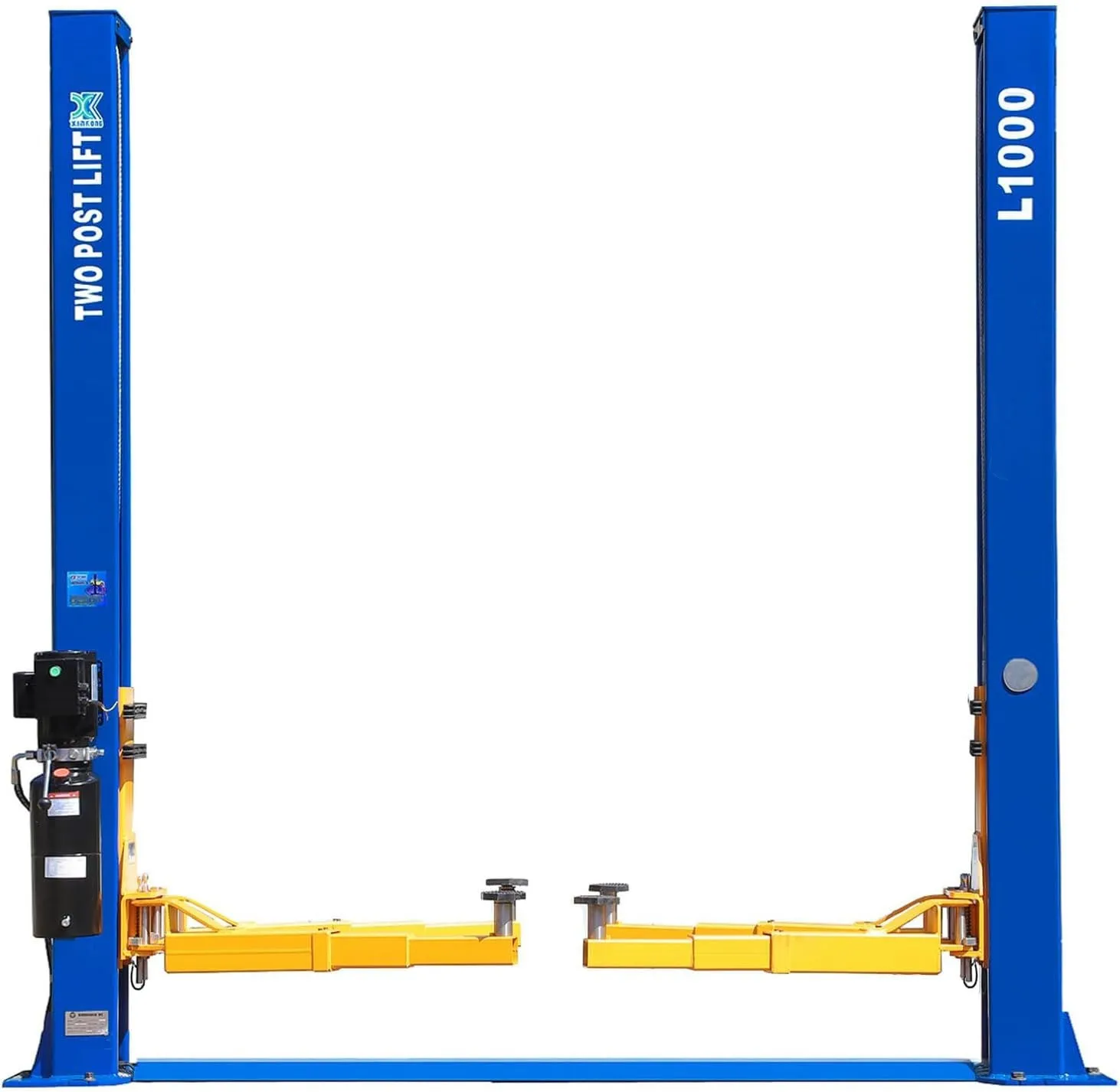

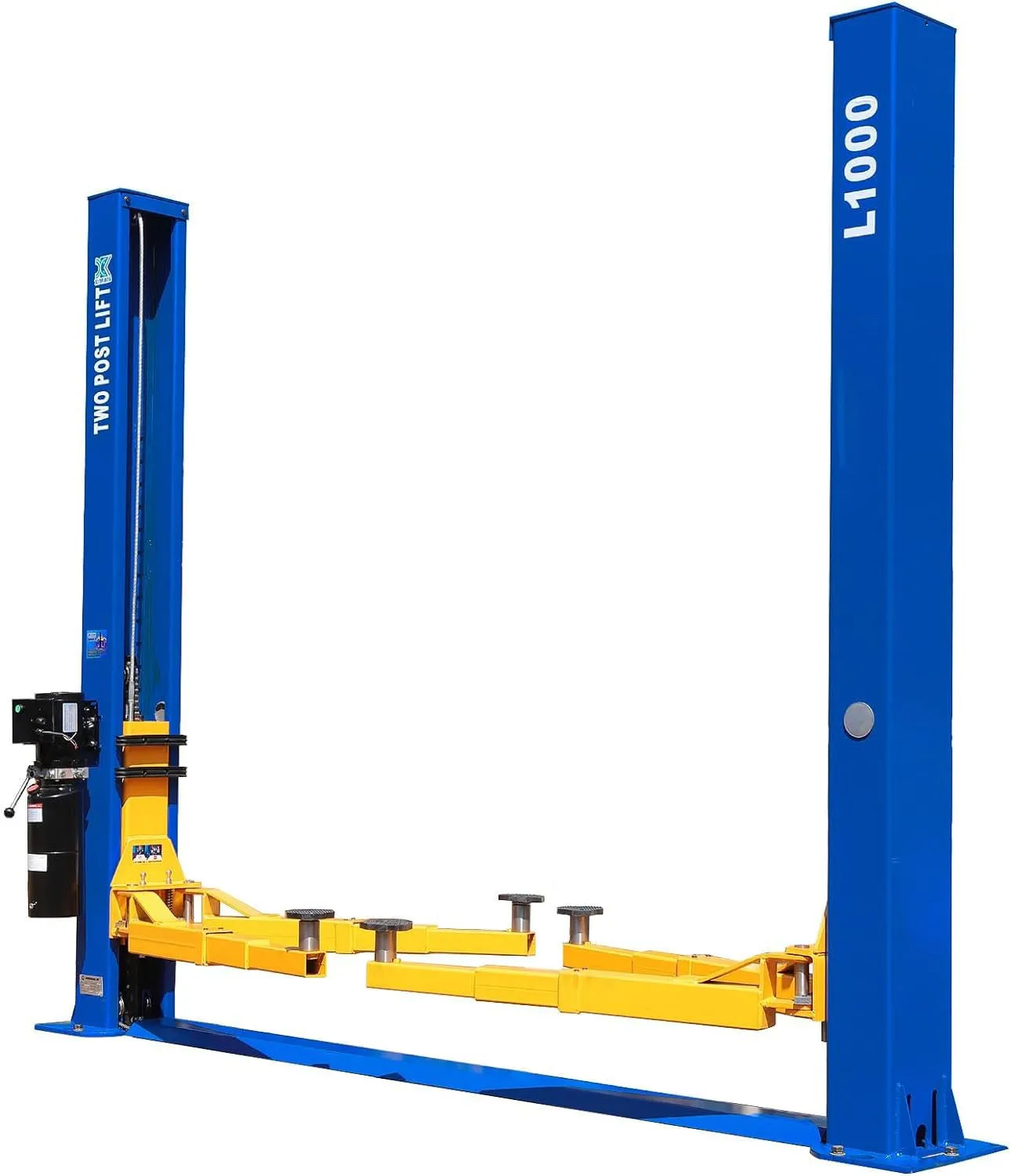

Auto Car Lift L1000 Two Post Base Plate – 10,000 lb Capacity

Maximize Your Garage's Potential with the L1000 Two Post Base Plate Lift!

Elevate your automotive service experience with the Auto Car Lift L1000 Two Post Base Plate, designed for home garages, professional auto shops, and restoration services. Offering a robust 10,000 lb lifting capacity, this lift ensures safe and efficient vehicle handling. Whether you need to park, store, or perform maintenance, the L1000 is the ideal choice for lifting passenger cars, SUVs, and trucks with ease.

Key Features:

Lifting Capacity: 10,000 lbs – Lifts most vehicles, including cars and light trucks.
Power Options: Available in 220V or 110V, 60Hz, 1-phase, 3HP motor for dependable performance.
Safety Mechanisms:
- Double Point Safety Lock Release for secure lifting.

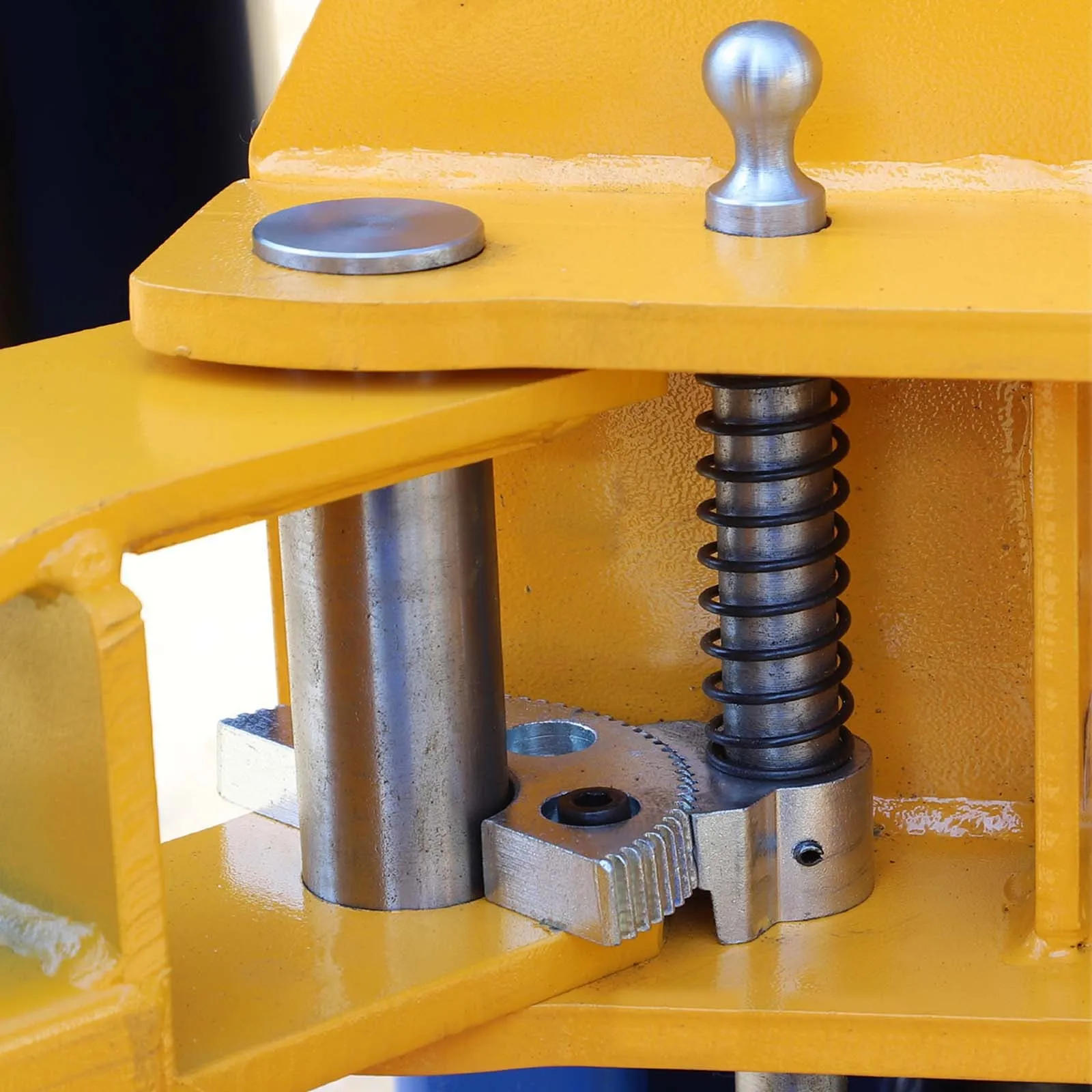

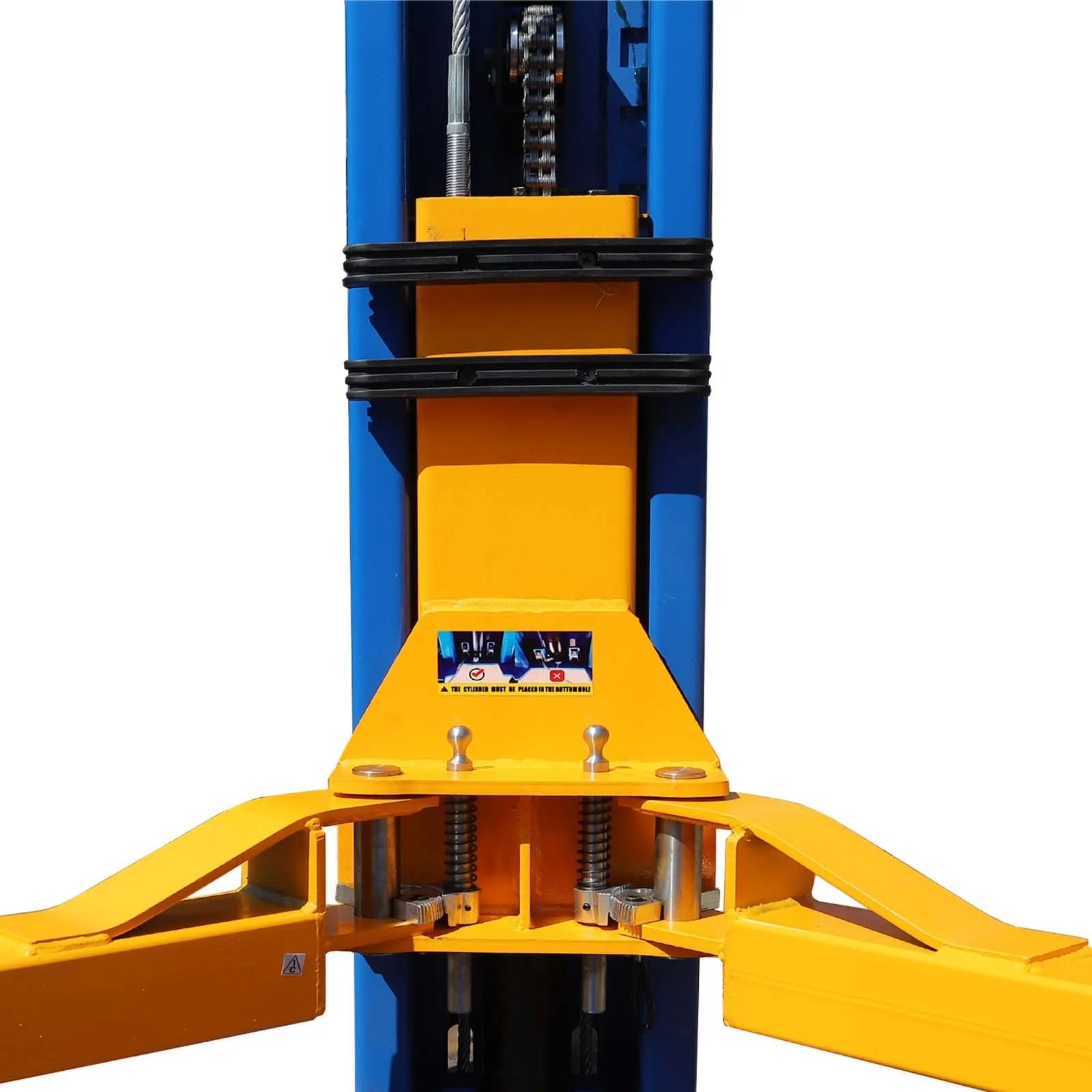

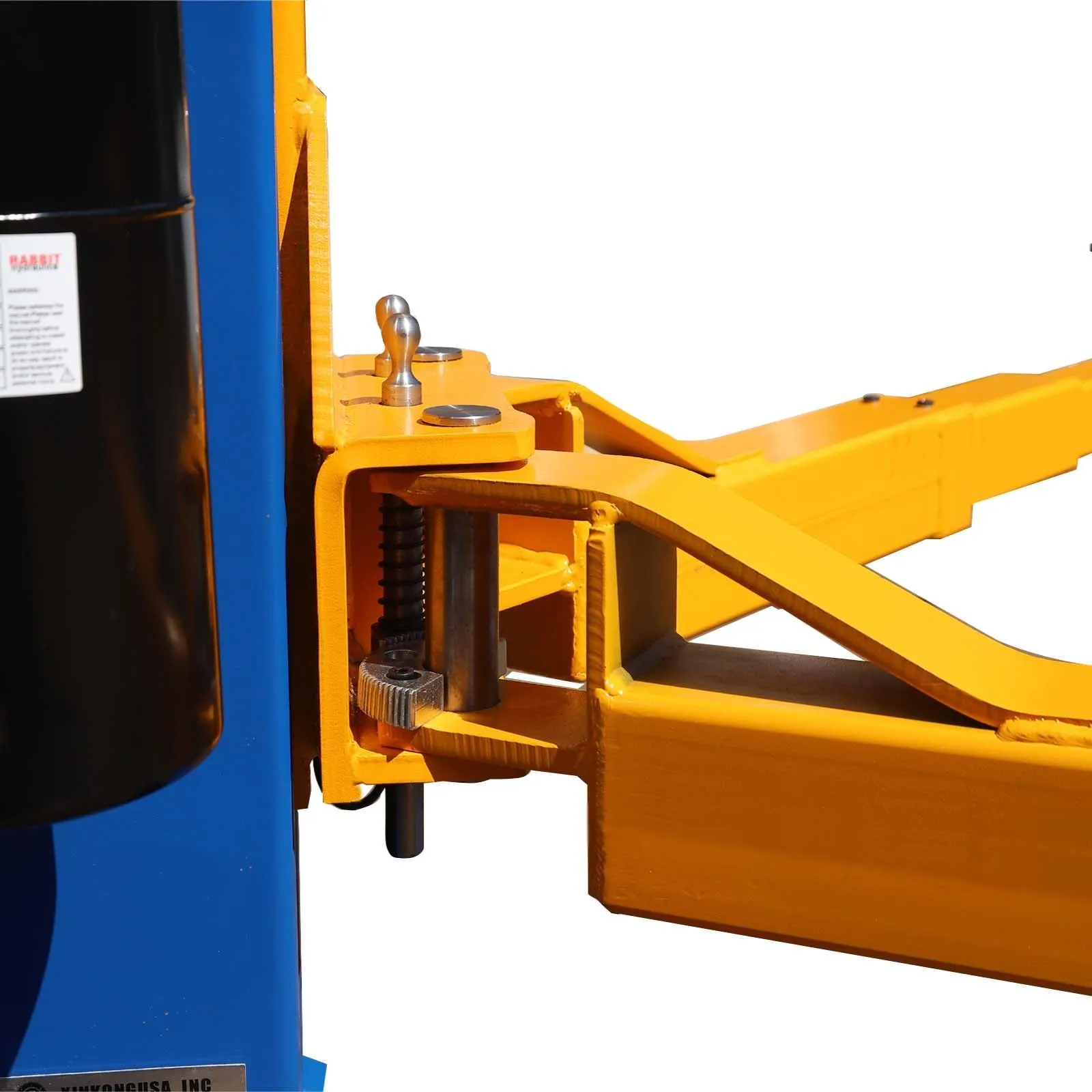

- Automatic Arm Lock Restraints for added protection during use.
- Relief Valve built into the power pump to prevent overloading.

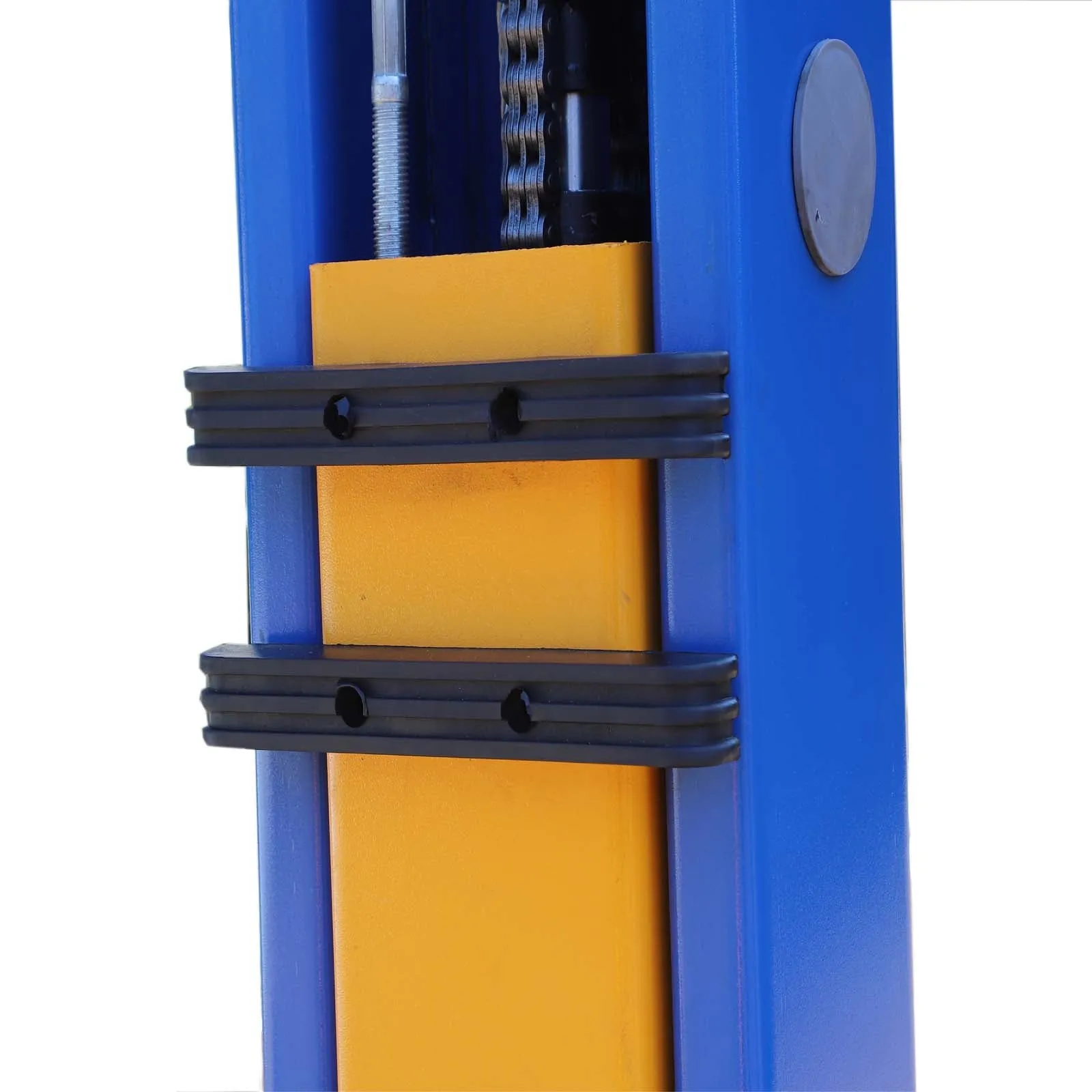

- Door Guards with Protective Rubber to prevent vehicle damage.
Heavy-Duty Construction:

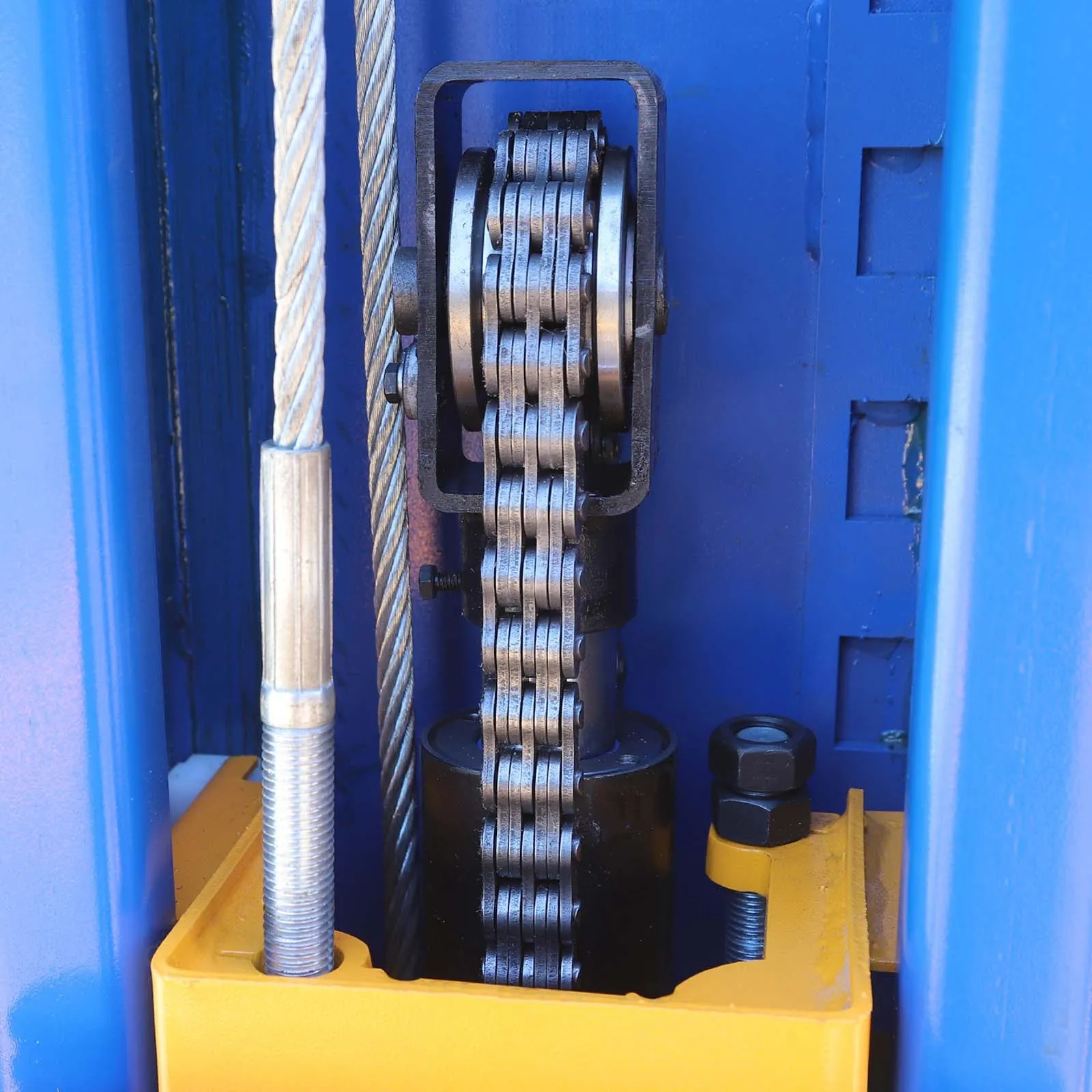

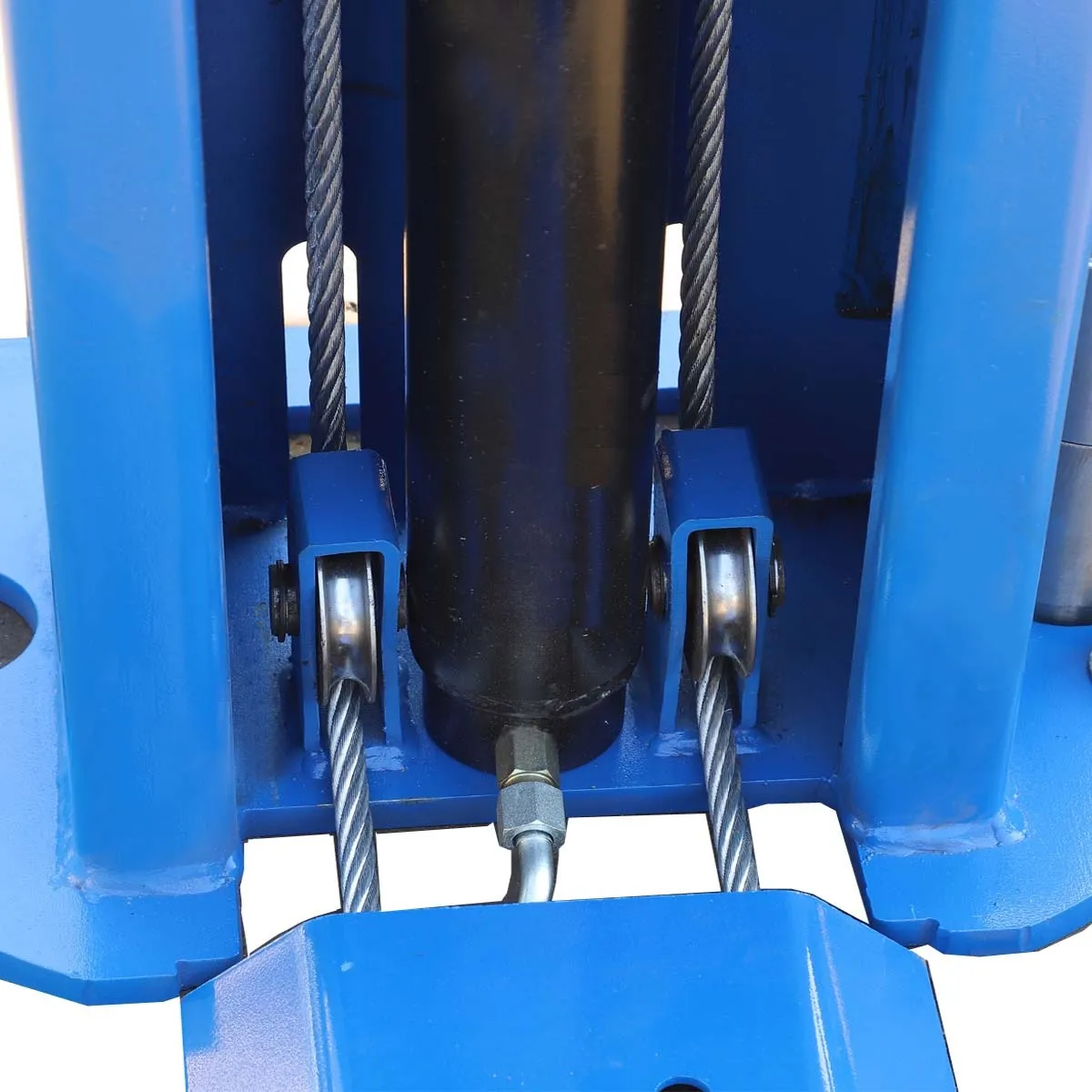

- 5/16" diameter cables and 4.56" pulleys to reduce stress and extend cable life.
- Stiffened Base Plate (5/8" thickness) for enhanced stability.
- Ultra-high molecular self-lubricating nylon sliders for smooth carriage movement.
Control System:
- Simple lifting operation via "UP" button.
- Manual Lowering through lever for complete control.

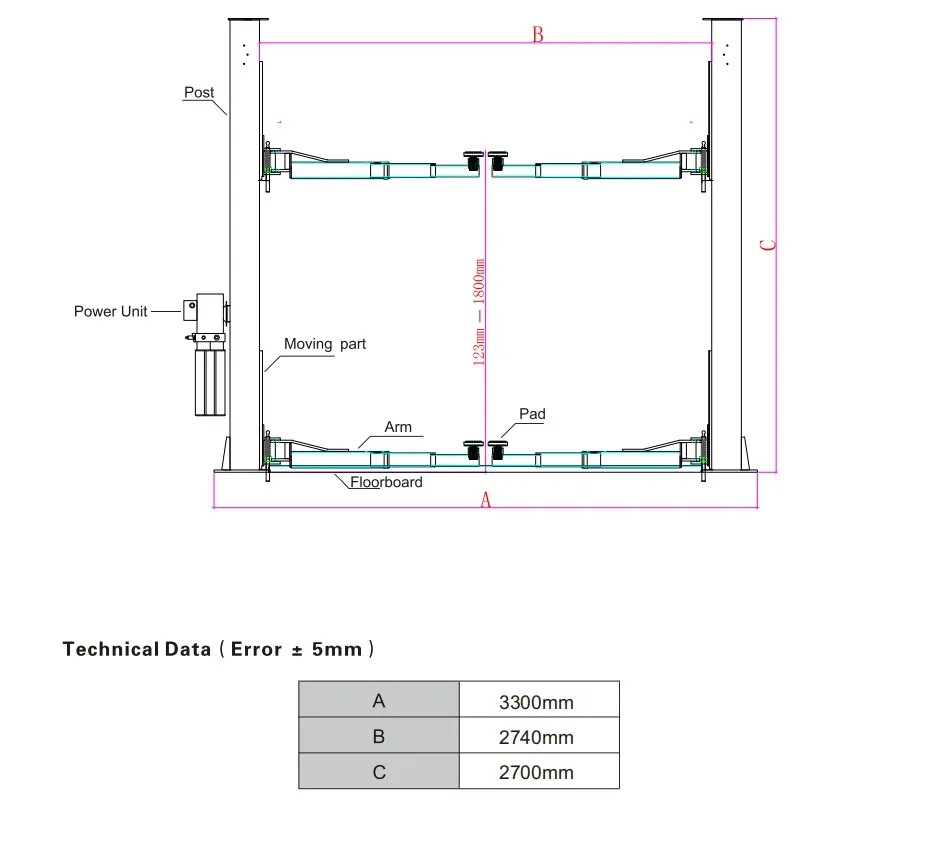

Specifications:

Lifting Capacity: 10,000 lbs
Overall Height: 110-1/4"
Overall Width: 130"
Column Width: 10.62"
Base Width: 18.89"
Steel Thickness:
- Column: 3/16"
- Carriage: 15/64"
- Arms: 15/64"
Arm Length: Front: 30.7" to 48", Rear: 30.7" to 48"
Min Pad Height: 3-7/8"
Max Lift Height: 78-7/8"
Drive-Thru Width Clearance: 99 19/32"
Time to Full Rise: 20-60 seconds
Shipping Weight: 1350 lbs
Included Accessories:

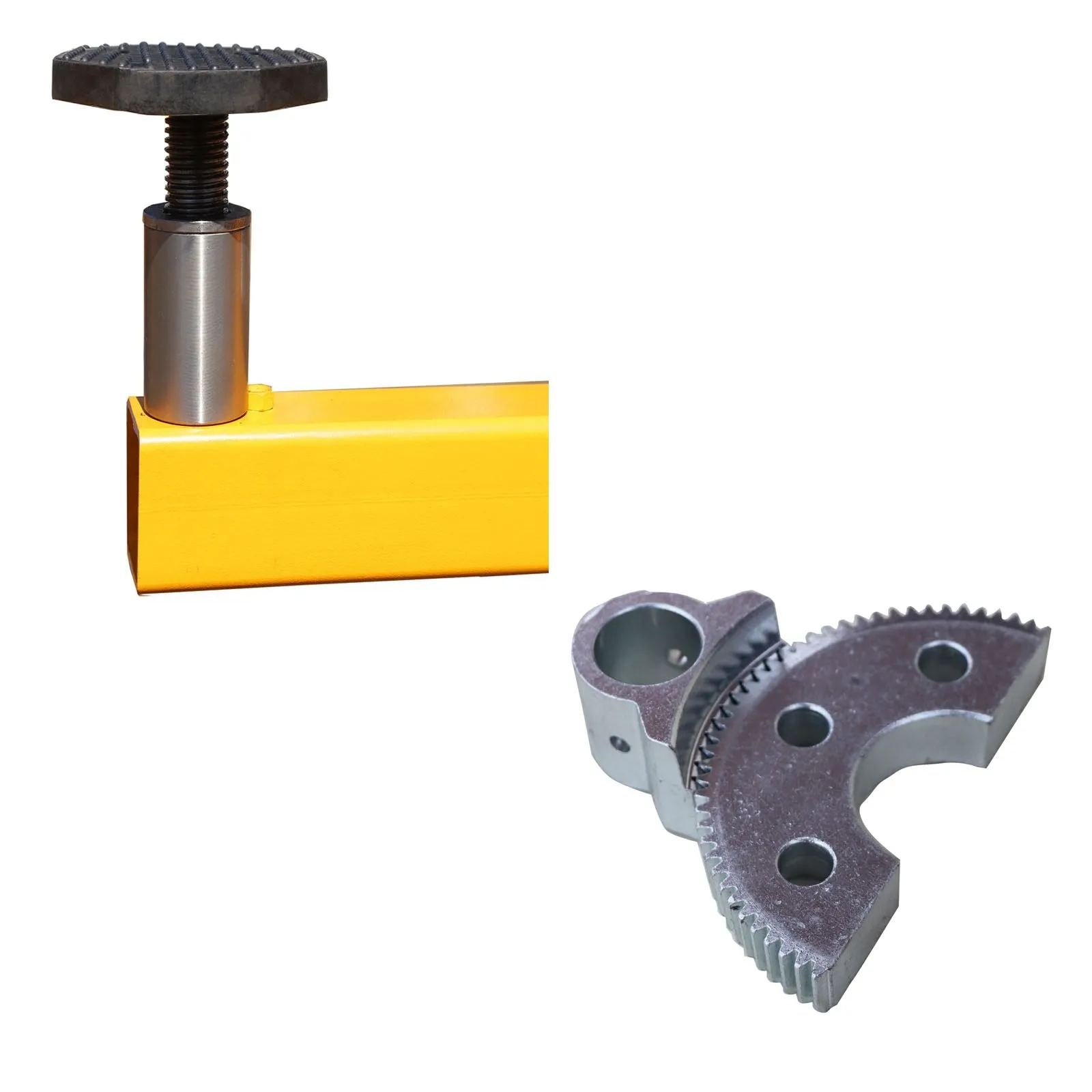

- Adjustable Truck Pads and Truck Adapters for easy compatibility.
- Anchor Bolts and Mounting Hardware for secure installation.

Warranty & Return Policy:

12-Month Warranty on all metal, pneumatic, electrical parts, and motors—offering peace of mind with a superior warranty.
Factory Defective Items: Full purchase price refunds for defective items. If a replacement is needed, shipping costs are covered.

Floor & Site Selection Requirements:

Before installation, ensure your space meets the following criteria for optimal performance:

Electrical Source: Requires a 220V or 110V, 30amp, single-phase, grounded electrical outlet.
Overhead Area: No obstructions (e.g., heaters, electrical lines) above the installation site.
Floor Area: Ensure the floor is level, with no cracks or defects. If necessary, use shimming to correct small differences. Newly poured concrete should cure for at least 30 days.

Concrete Specifications:

Reinforced Concrete with a minimum PSI of 3,000 is required:

For 8,500 - 10,000 lb lifts: Minimum 4" thick concrete.
For 11,000 - 15,000 lb lifts: Minimum 6" thick concrete.
