XPR-10XLS 10,000 Capacity / Symmetric / Adjustable Width / Screw Pads / HIGH RISE
$ 2,996
$ 6,195

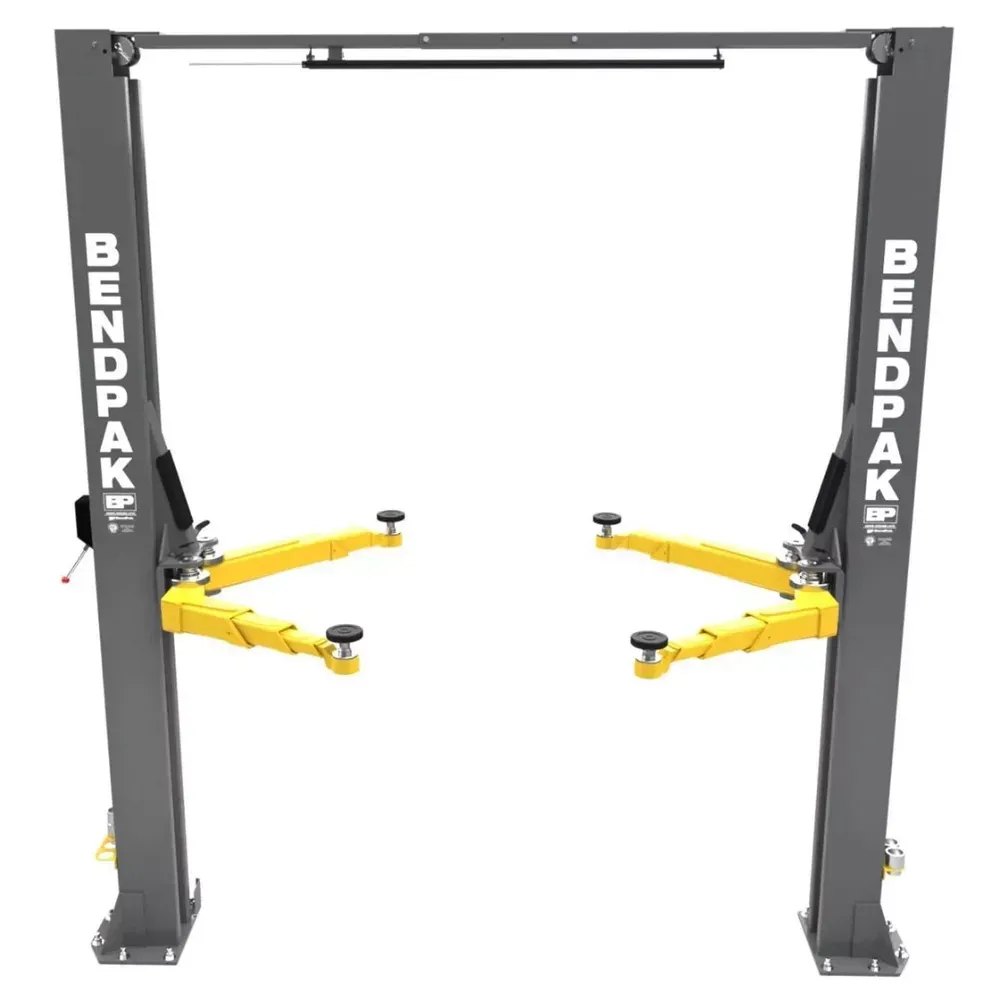

10APX Symmetrical Lift
10APX Symmetrical Lift
Elevate Efficiency with Unmatched Lifting Height
The 10APX Symmetrical Lift is the ideal solution for modern automotive shops, designed to meet the needs of tall technicians who require ergonomic comfort while working. With its enhanced high-rise design, customizable options like the extension kit or Low-Pro™ arms, this lift adapts to various vehicle types and ensures optimal efficiency and comfort in your workspace.
Key Features & Benefits:
- 10,000-lb. Lifting Capacity: Built to easily handle heavy-duty vehicles.
- Expandable Top Beam: Adjustable width for both wide and narrow configurations to accommodate various vehicles.
- Double-Telescoping Screw Pads: Precision adjustment (2") for versatile vehicle support and added flexibility.
- 79.75" Max Lifting Height + Pad: Provides ample height for tall technicians to work comfortably and efficiently.
- Dual Hydraulic Direct-Drive Cylinders: Smooth, rapid lifting in just 45 seconds (75" rise).
- Enhanced Safety: Includes padded overhead shutoff bar, automatic arm restraints, and 3"-spaced safety locks with rust-resistant plated hardware.
- Durability Redefined: Features single-piece columns, an oversized 59" carriage, and maintenance-free UHMW bearings for long-term reliability.
- Advanced Ergonomics: Lowered arm tubes and 63 mm stackable adapters included for seamless workflow and technician comfort.
- ALI Certified: Meets rigorous industry safety and performance standards for reliable operation.
Technical Specifications:
- Motor: 220 VAC / 60 Hz / 1 Ph
- Noise Level: 45 dB
- Drive-Thru Clearance: 93"–106"
- Base Plate: 17" x 19" A36 steel
- Front/Rear Arm Reach: 25.5"–49.5" (front) / 32.25"–52.5" (rear)
- Height Overall: 157"
- Max Load per Arm: 2,500 lbs.
Why Choose the 10APX?
- Refined Engineering: Replaces the XPR-10XLS, featuring oversized cable sheaves to reduce fatigue and a self-lubricating Dura-Glide™ bearing system for effortless operation.
- Technician Comfort: Designed for those who prioritize ergonomic comfort while working.
- Vehicle Versatility: Adjustable top beam and arm reach make it versatile for different vehicle types.
- Industrial-Grade Performance: Built for high-efficiency use in busy automotive shops.
Optional Features:
- Extension kits and Low-Pro™ arms available for additional customization.
- Lift arms shown with optional foot guards for added protection.
Model and Certification:
- Model: 10APX
- Style: Symmetric High-Rise
- Certification: ALI Certified
